5-116 Image Optimization
No.
Device Name
Port
Description

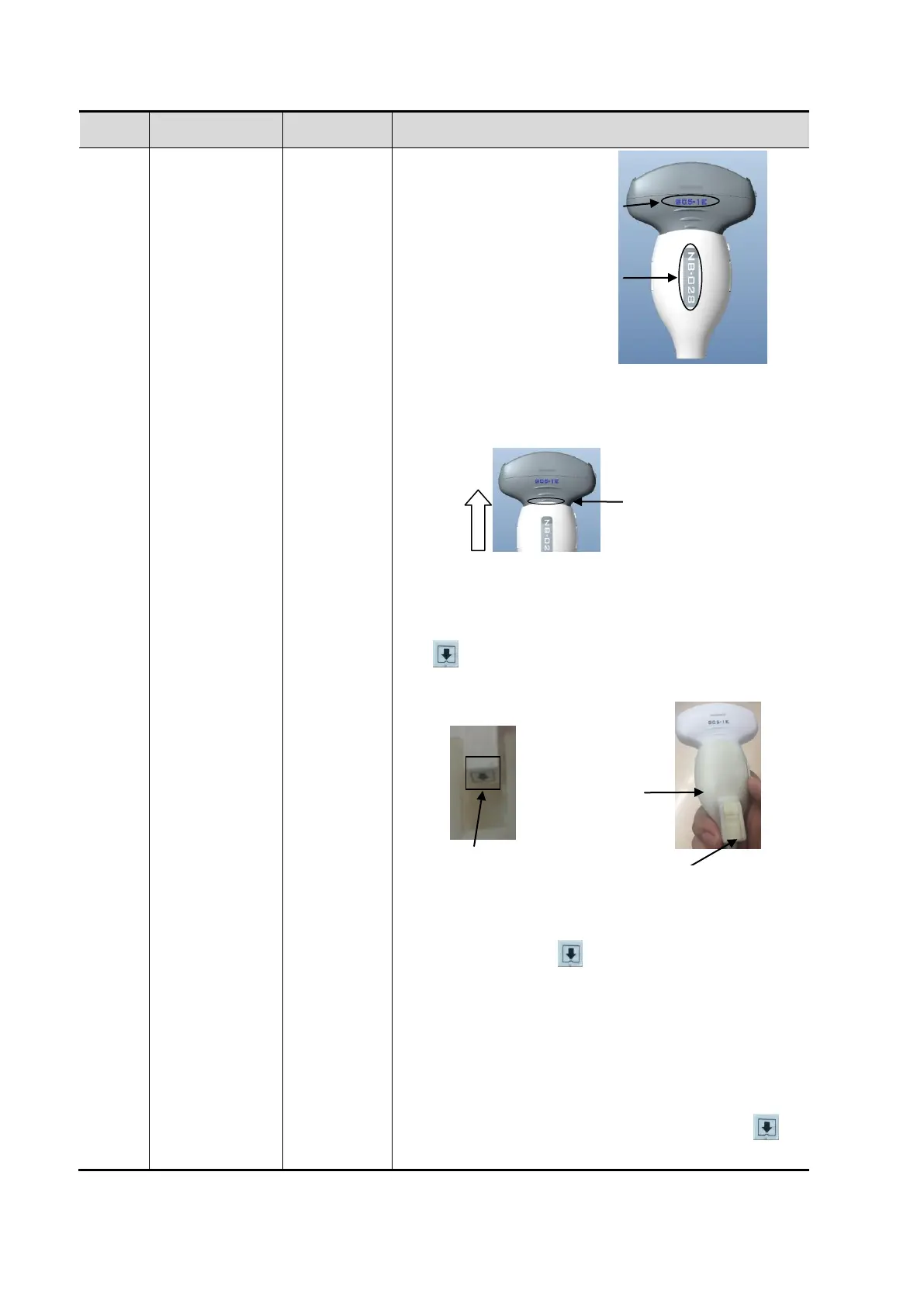

 Push the navigation support fastened
following the arrow’s guide.
3. Positioning (probe) sensor: fix the positioning
(probe) sensor which is already plugged in
positioning (probe) sensor port to the cavity of the
positioning (probe) navigation support following
guide.
Note: if failed to plug the positioning (probe)
sensor following guide, it may lead to non-
correlation of spatial positioning.
4. Positioning (probe) sensor sterile sheath: wear the
probe sterile sheath after probe sensor and bracket
are installed.
5. Motion (abdomen) sensor: fix the motion
(abdomen) sensor which is already plugged in
motion (abdomen) sensor port to the cavity of the
motion (abdomen) sensor support following
guide.
Positioning (probe) sensor
Positioning
(probe)
navigation
support
Face downward
Silk print on the
probe
Silk print on the
support
Fastened here
