5-130 Image Optimization

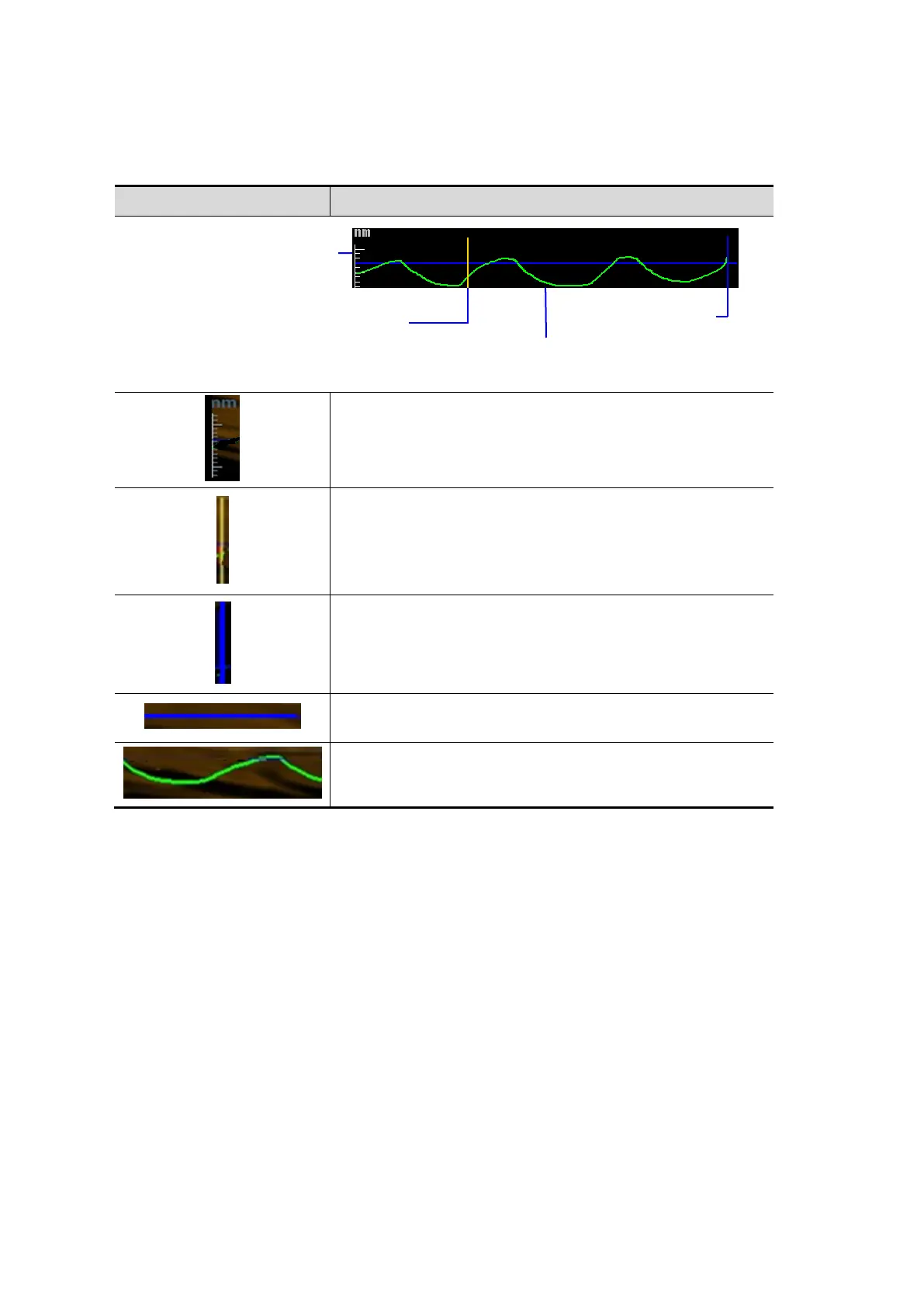

Respiration Curve Description:
Respiration Curve Scale (respiration depth).
Set Modeling start (start point of motion modeling of the
respiration curve).
Set Modeling End (end point of motion modeling of the
respiration curve).
The blue curve is the respiration depth at last registration.
The green curve is the respiration depth in real-time
respiration.
3. Tap [Set Modeling ROI] to highlight it (it is activated by default). Move the trackball to set ROI
position and size.
Set ROI position and size. Envelope the liver with the ROI.
Press <Set> again to adjust ROI position and size, and to set the start frame and end frame of
the motion modeling.
The respiration depth in
real-time respiration
