5-132 Image Optimization
Operation
Rotate the knob beneath [Resp Range].
Respiration curve scale and the unit appear on the right-axis.
5.16.8 Contrast Fusion Imaging
Contrast Fusion Imaging increases the possibility of diagnosing the difficult lesions in the pre-
operation; improves the accuracy to ablating the lesion in the intra-operation; estimates the
therapeutic effect of the target in the post-operation.
1. Tap [Contrast] to enter Contrast Fusion Imaging after the Fusion Imaging is registered.
Set fusion ratio. Adjust the display ratio of two split windows that the contrast image registers
with CT/MR image.(See also Chapter 5.16.9 Parameter Setting).

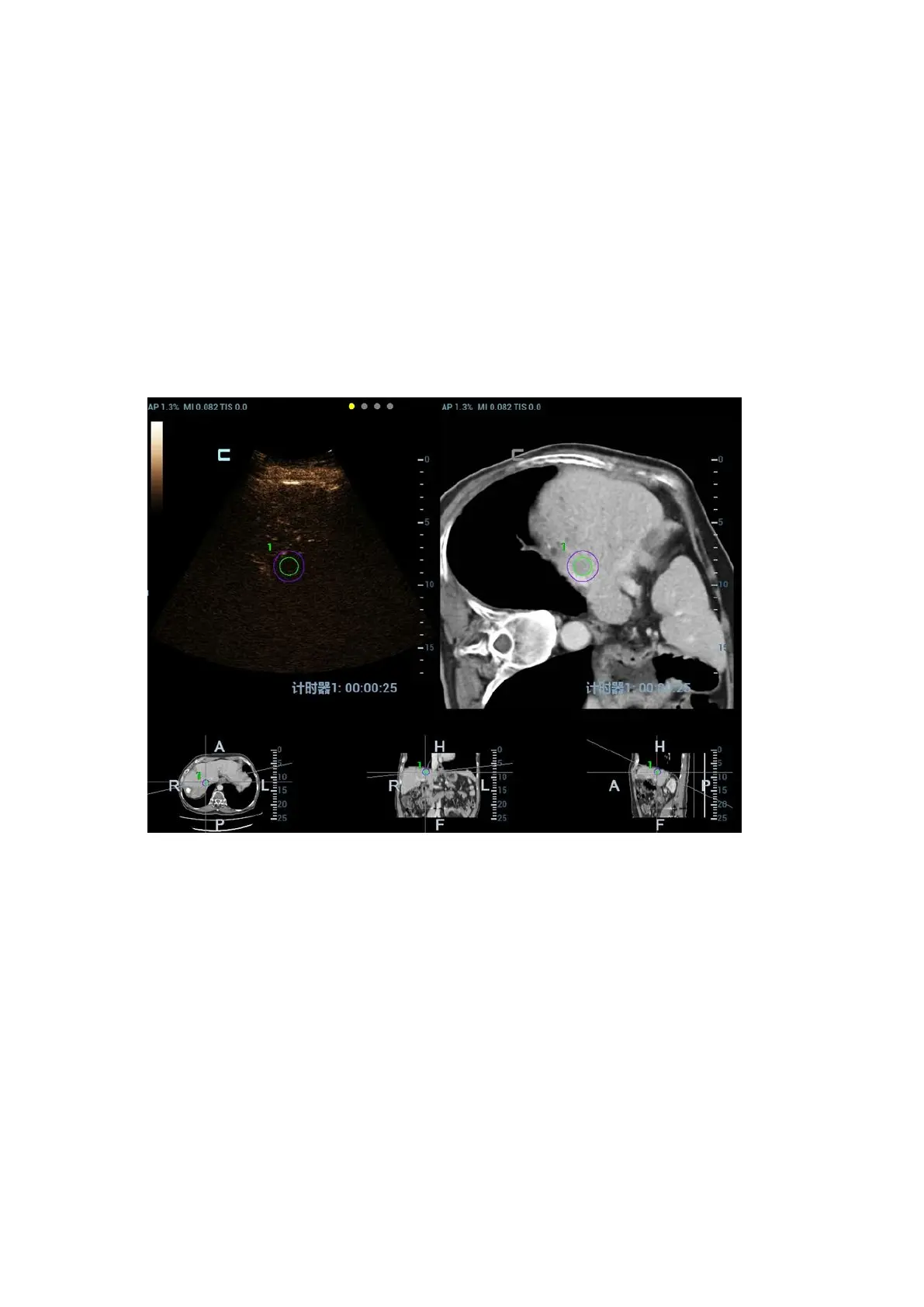

2. Contrast Fusion Dual Live:
Select [Contrast][Dual Live] to adjust the fusion ratio. Adjust the display ratio that tissue
image registers with CT/MR image (see Window 1 and window 2). Adjust the display ratio that
contrast image registers with CT/MR image (see window 3 and window 4).
