13-36 Probes and Biopsy

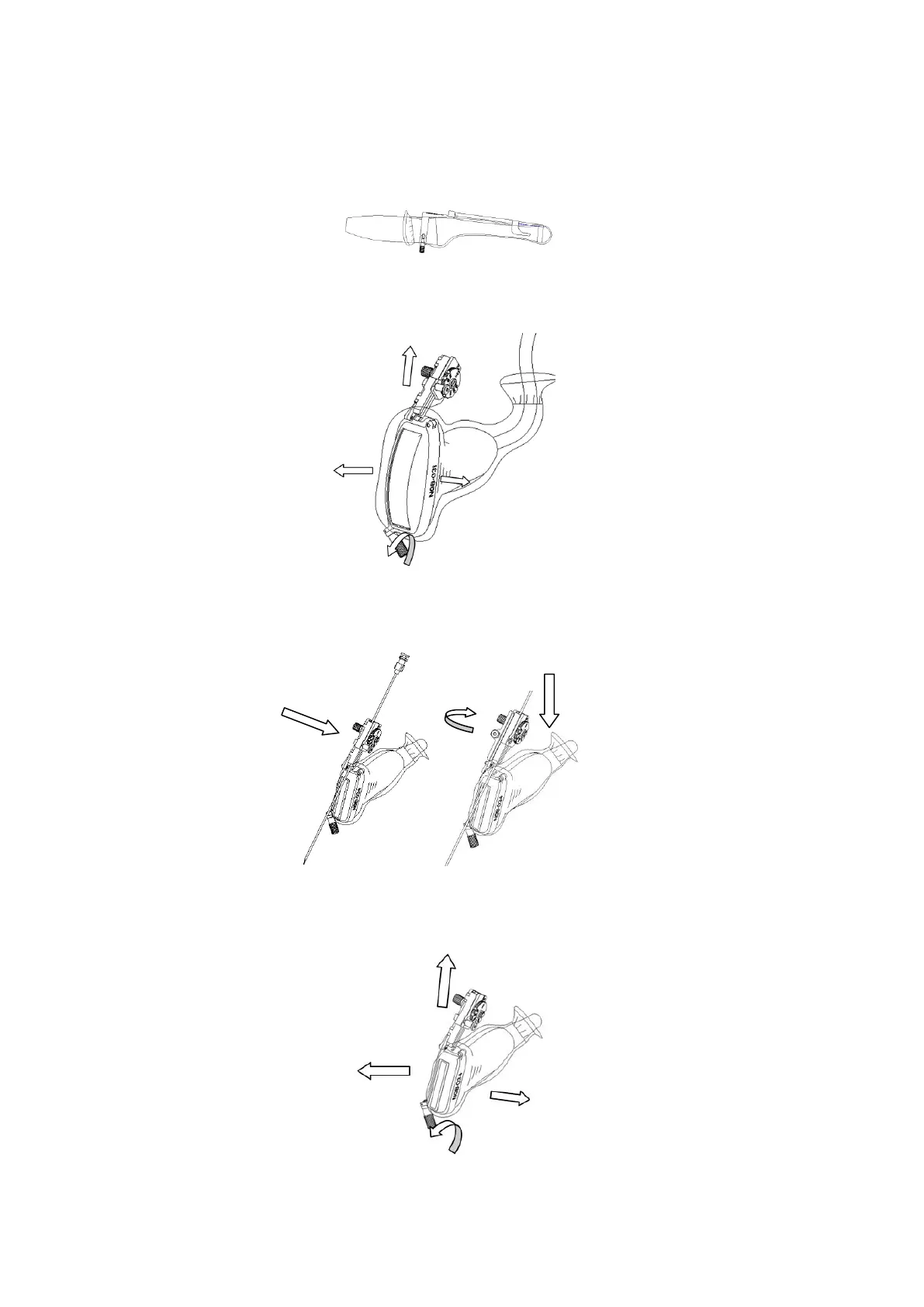

NGB-027
Hold the prober in the left hand; unscrew the locking nut with the right hand to loose the clamp
(arrow’s direction).Lift the biopsy up (towards arrow’s direction). The locating pole, front clamp, the
locating hole and the front clamp become loose.
NGB-031
Unscrew the pinch nut to separate the needle-guided bracket from the probe. Release the needle-
guided bracket from the probe.
NGB-034
Separation of the needle in the operation
1. Pull the lock pin out until the V-shaped cover can be turned and opened up.
2. Turn over the V-shaped cover to expose the needle. Remove the probe and bracket.
Removing the needle-guided bracket
Screw the pinch nut to release the needle-guided bracket.
