Barcode Reader E-9

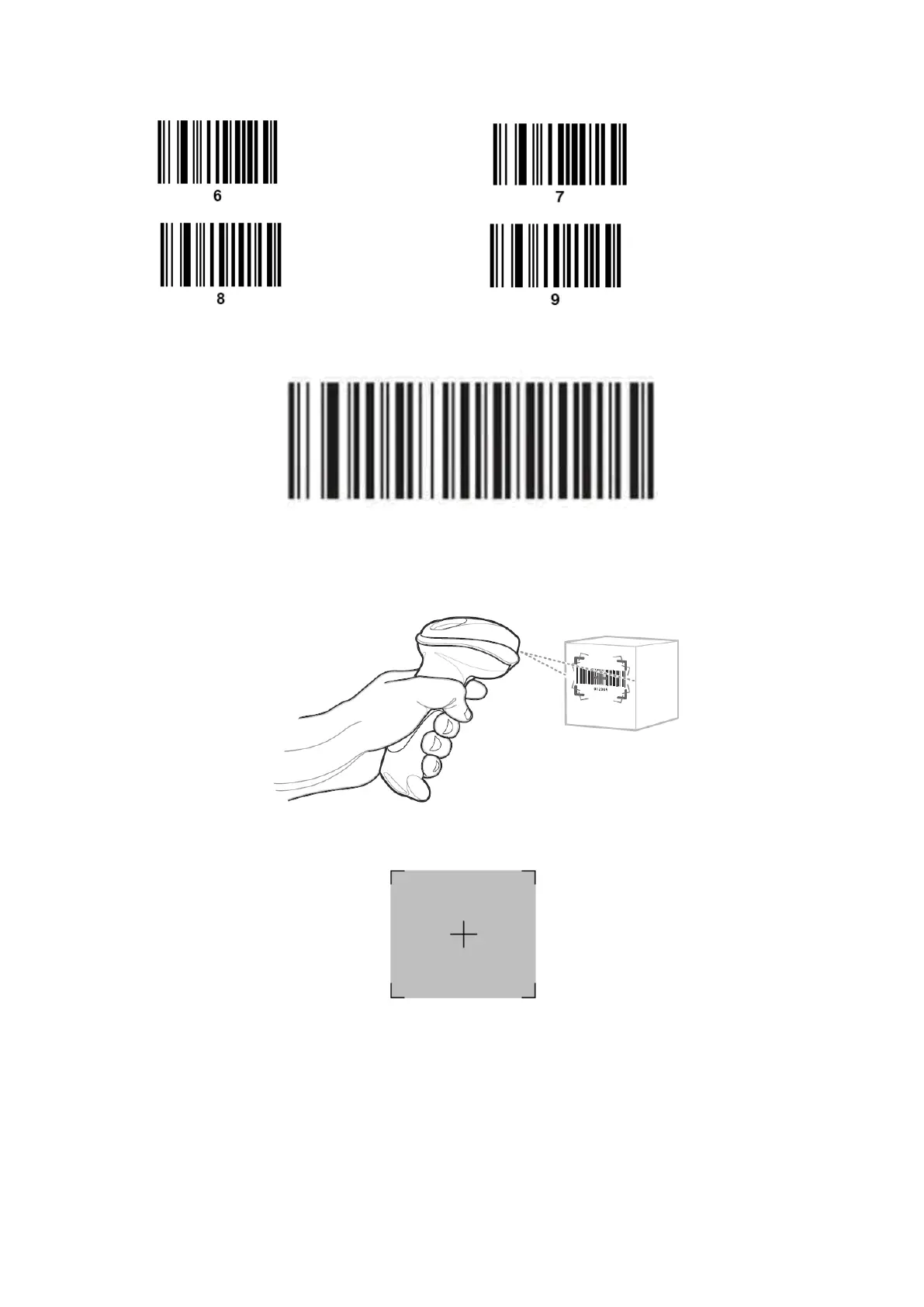

Carriage Return/Line Feed setting
Scan the barcode below to set Carrige Return/Line Feed.
E.2.4 Scanning in Hand-Held Mode
1. Ensure all connections are secure (see the appropriate host chapter.)
2. Aim the digital imager reader at the barcode.
3. When the digital imager reader senses movement, in its default Auto Aim trigger mode, it projects
a red laser aiming pattern which allows positioning the barcode or object within the field of view.
If necessary, the digital imager reader turns on its red LEDs to illuminate the target barcode.
4. Center the symbol in any orientation within the aiming pattern. Be sure the entire symbol is within
the rectangular area formed by the brackets in the pattern.
