Mindray DP-8800plus Service Manual

3-1
Chapter 3 Disassembly of
DP-9900Plus/DP-9900

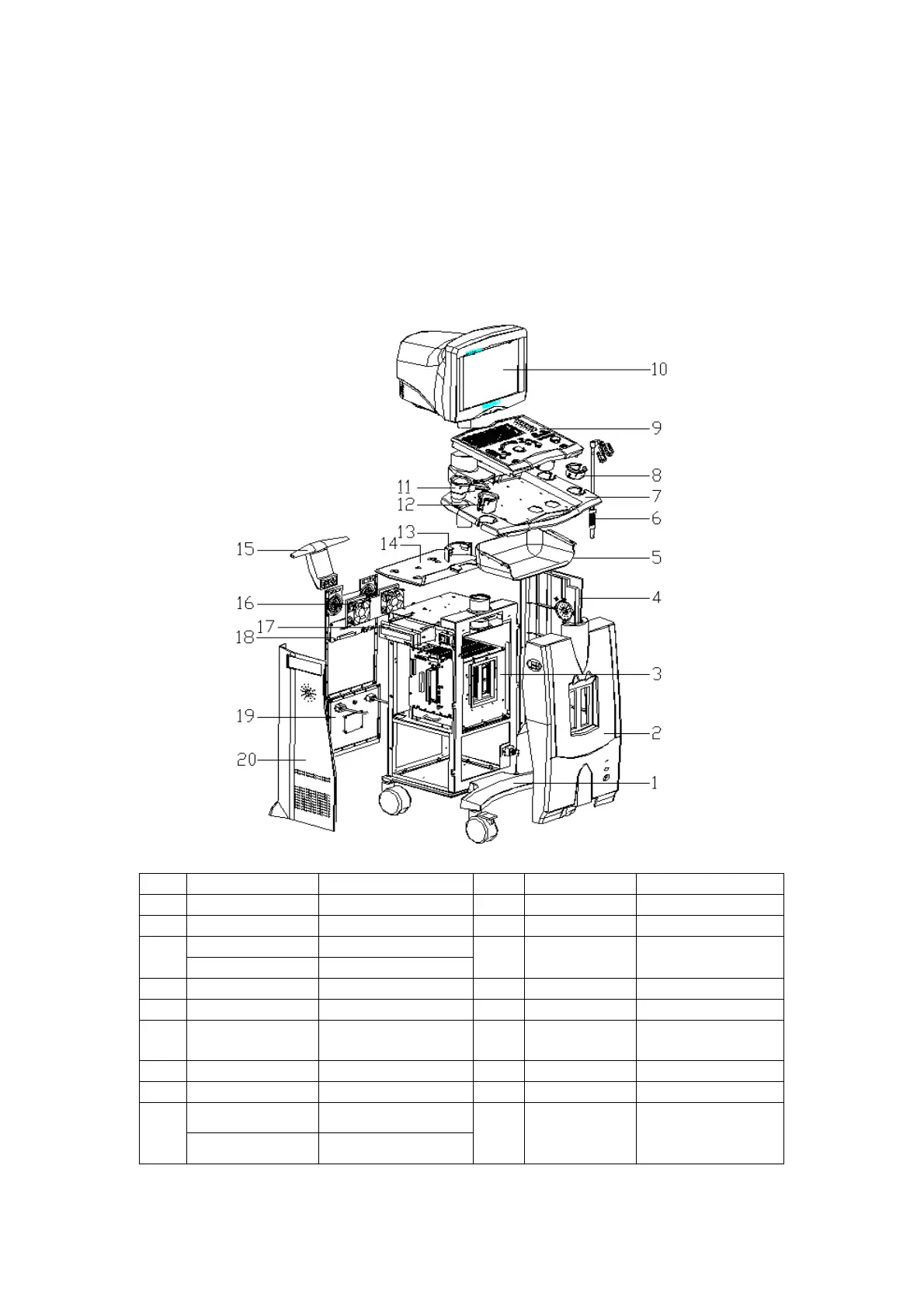

3.1. System Structure
No. Part No. Name No. Part No. Name
1
9906-20-71420 Framework
11
9901-21-23941 Couplant Holder
2
9901-20-23935-51 Front Cover
12
9901-21-23942 Transducer Holder B
3
9906-30-71433 Cabinet (9906)
13
9901-20-23940 Back Cover of Neck
9905-30-71057 Cabinet (9905)
4
9904-20-37005 Right Cover
14
9901-20-23939 Top Cover
5
2100-20-08052 Drawer
15
2102-20-17125 Handle
6
2102-30-16949
Transducer Cable
Hanger
16
9906-30-71443
Air Outlet Fan
Assembly
7
9901-30-23969 Keyboard Support
17
2131-30-71794 CD-ROM
8
9901-21-23942 Transducer Holder A
18
9906-30-71439 Upper Rear Cover
9
9905-30-71081 Keyboard (9905)
19
9906-30-71441 Lower Rear Cover
9906-30-71512 Keyboard (9906)
