Disassembly of DP-9900Plus/DP-9900
3-8

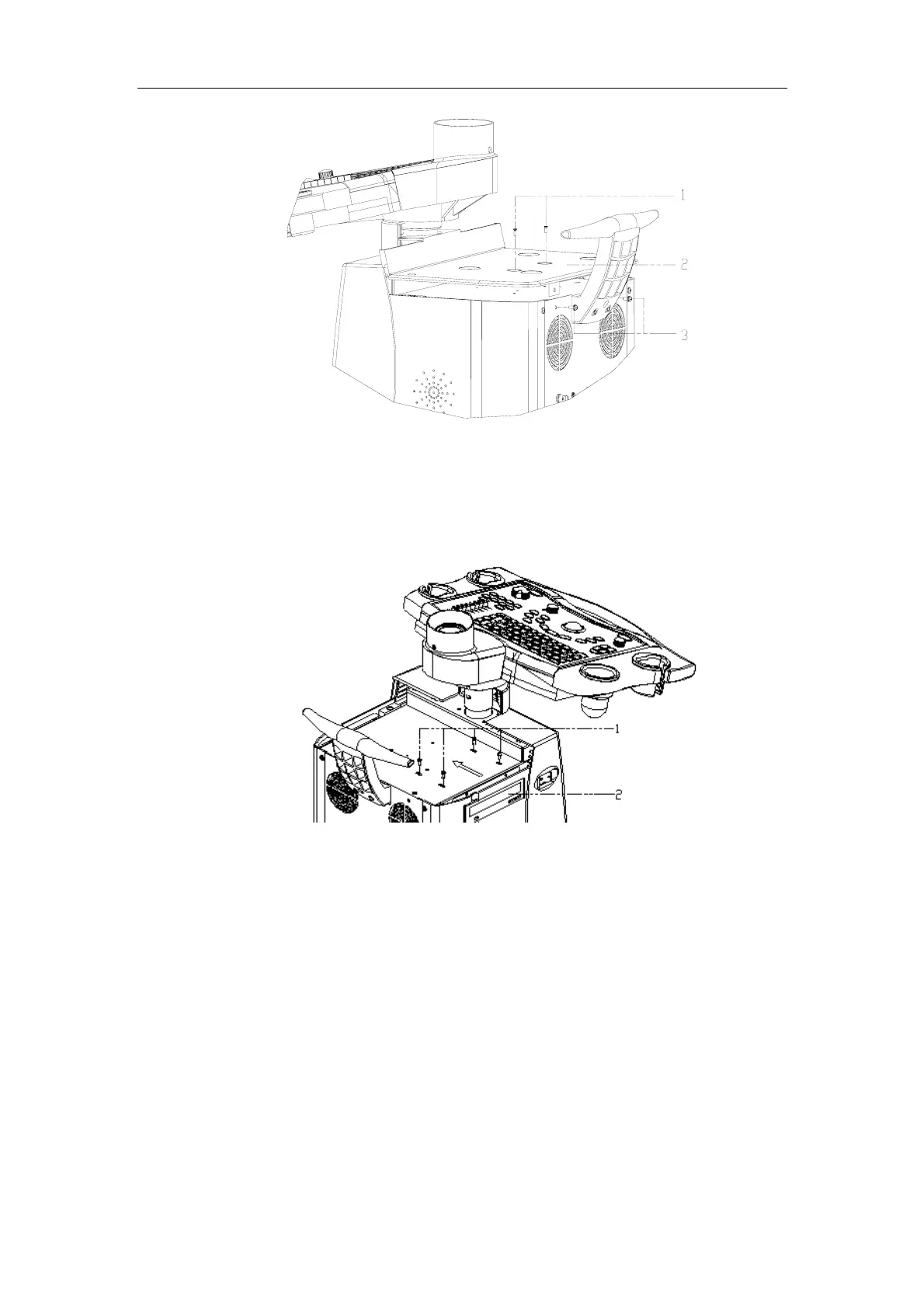

1 – M3×8 Screws 2 – Top Cover 3 – M4×8 Screws
3.5.5. Disassembly of Left Cover
1. Release the four M4×12 screws and push the CD-ROM backwards to its end.
1 – M4×12 Screws 2 – CD-ROM
2. Release the three M4×8 screws on the left cover. Push the left cover backwards.
To Next Page
