Mindray DP-8800plus Service Manual

2-1
Chapter 2 Hardware Introduction
2.1. Hardware System
The hardware system consists of the transducer unit, tranmission unit, amplification unit,
beam forming unit, B/M signal processing unit, DSC unit, CPU system, I/O unit and power
supply unit.

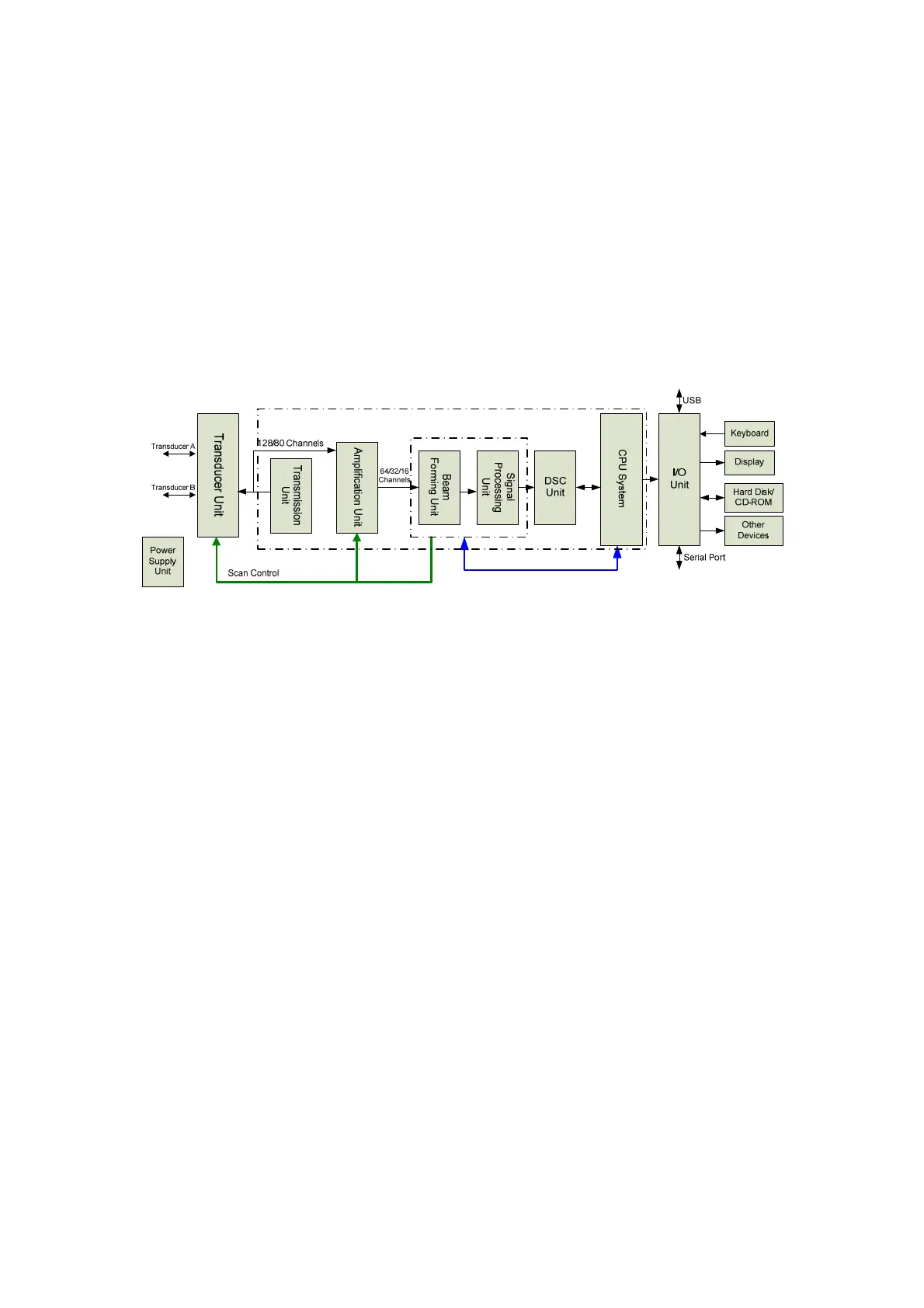

The hardware system is shown as the figure below.
2.2. Boards
2.2.1. Main Board
The diagram of the main board is shown as follows.
