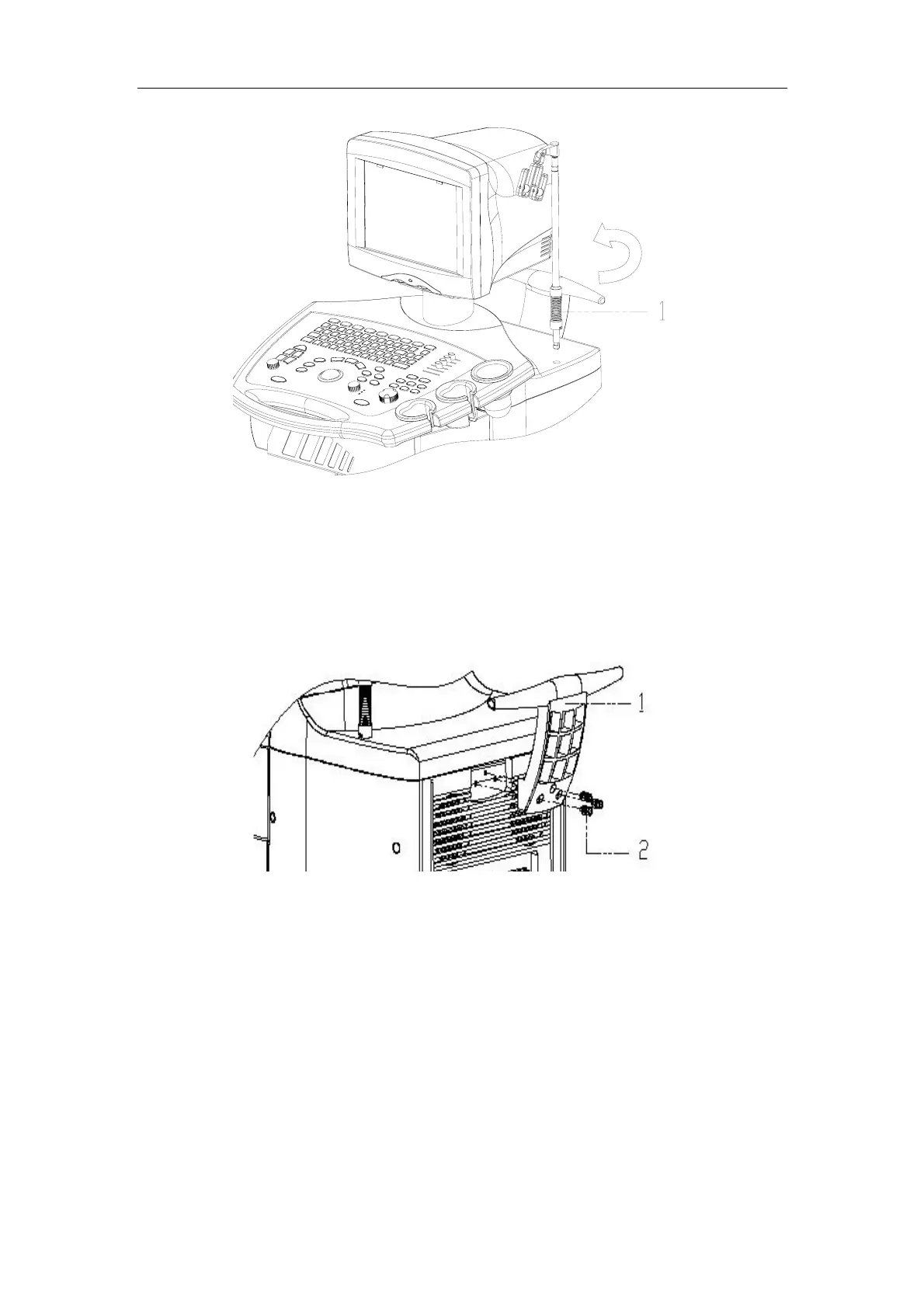

Disassembly of DP-8800Plus
4-7
1 – Transducer Cable Hanger
4.9. Disassembly of Handle
1． Remove the three M5×35 screws and washers.
2． Take off the handle.
1 - Handle 2 – M5×35 Screws
