Part II General Information
Structure
and Assembly
/Disassembly
182
5.2.5
Equipm
ent body

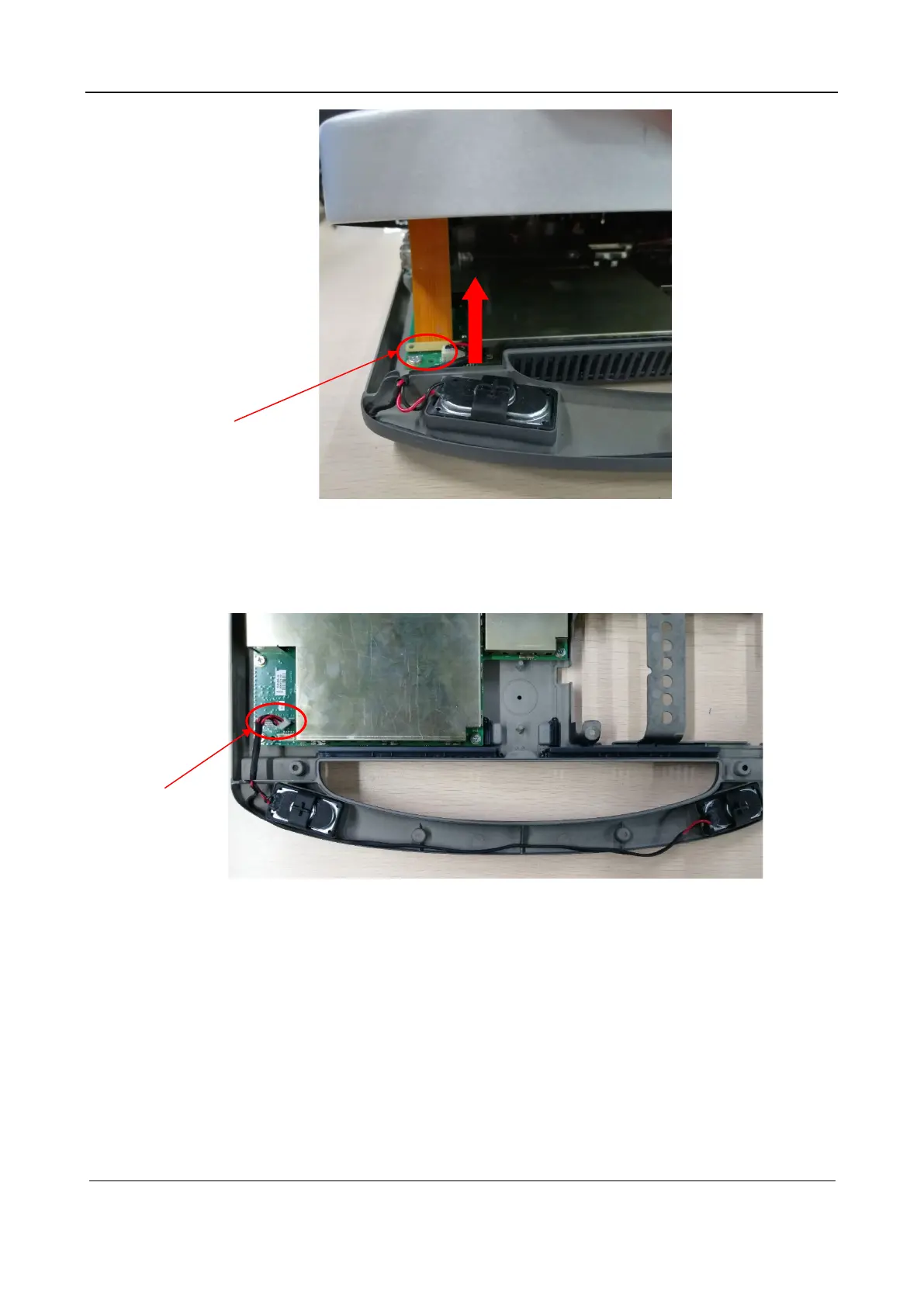

1.
Speaker
Put the detac
hed equipm
ent body on a tab
le and remove the speaker
cable to de
tach the spea
ker
.
2.
4
D/TEE/CW
board
Use a screwdr
iver to rem
ove the three
M3X1
4
cross rec
essed panhead screws, and
lift the
4D/TEE/CW
board upwards vertica
lly
.
FPC flat cab
le between
the main board and the
control panel
Speaker cable
198
200
