Part II General Information
Structure and Assembly/Disassembly 183

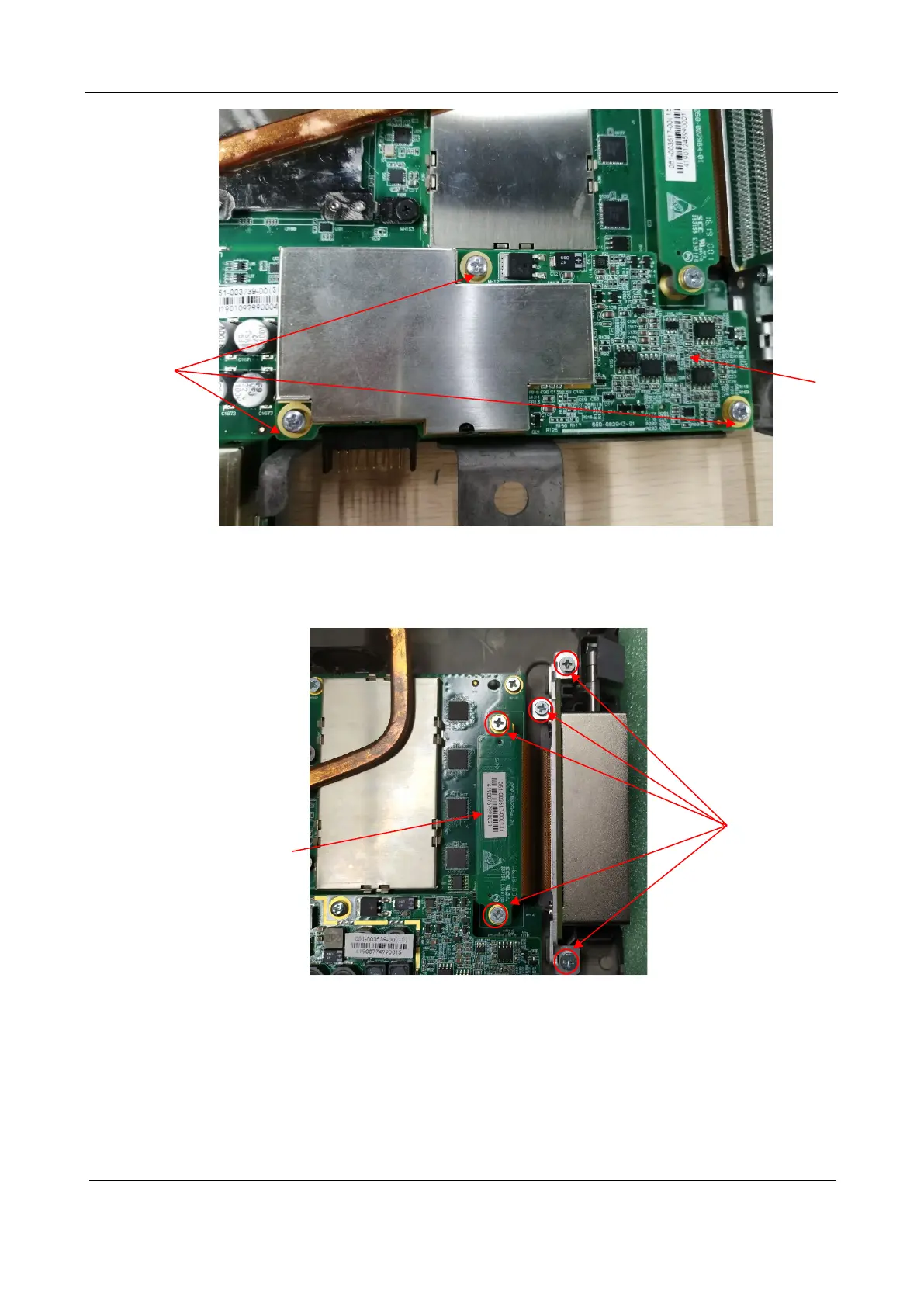

3. Probe board
Use a screwdriver to remove the 5 M3X5 cross recessed flathead screws and lift the probe board
socket upwards vertically.
4. IO shield cover
Use a screwdriver to remove the two M3X5 cross recessed flathead screws and take off the IO
shield cover.
Probe board socket
M3X5 cross
recessed flathead
M3X14 cross
recessed panhead
screw
4D/TEE/CW board
