Mindray ME8 Service Manual

Part II General Information
Structure and Assembly/Disassembly 193
5.2.8 Control Panel (POC model)

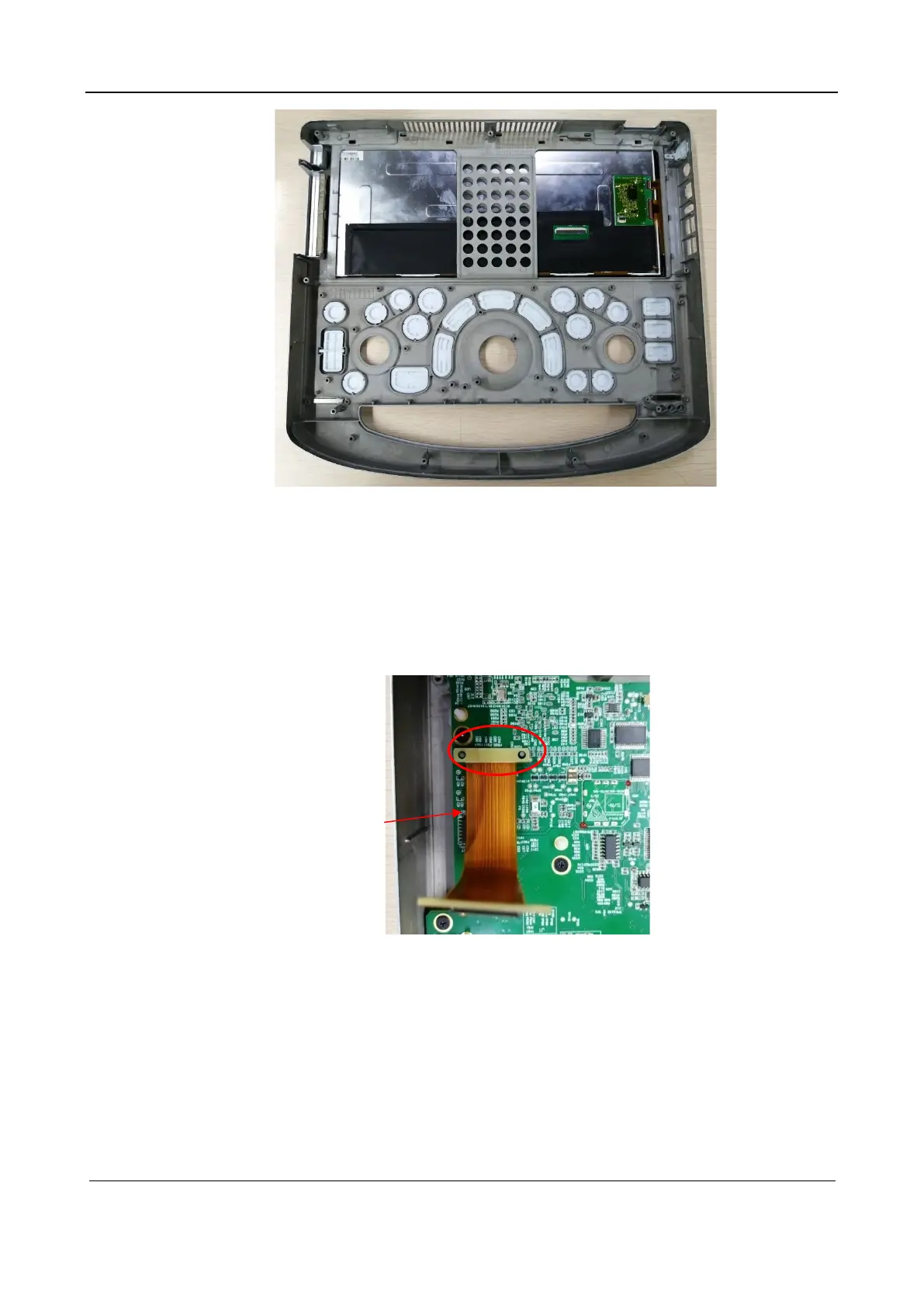

1. Remove the control panel. Refer to step 3 to 4 in 5.2.4.
2. Control panel cable
Remove the FPC flat cable between the main board and the control panel upwards vertically from
the interface on the control panel.
3. Cable between the control panel and the touch screen
Open the cable crimps and take off the two cables connected between the control panel and the
touch screen.
FPC flat cable between
the main board and the
control panel
