Part II General Information

Structure and Assembly/Disassembly 196

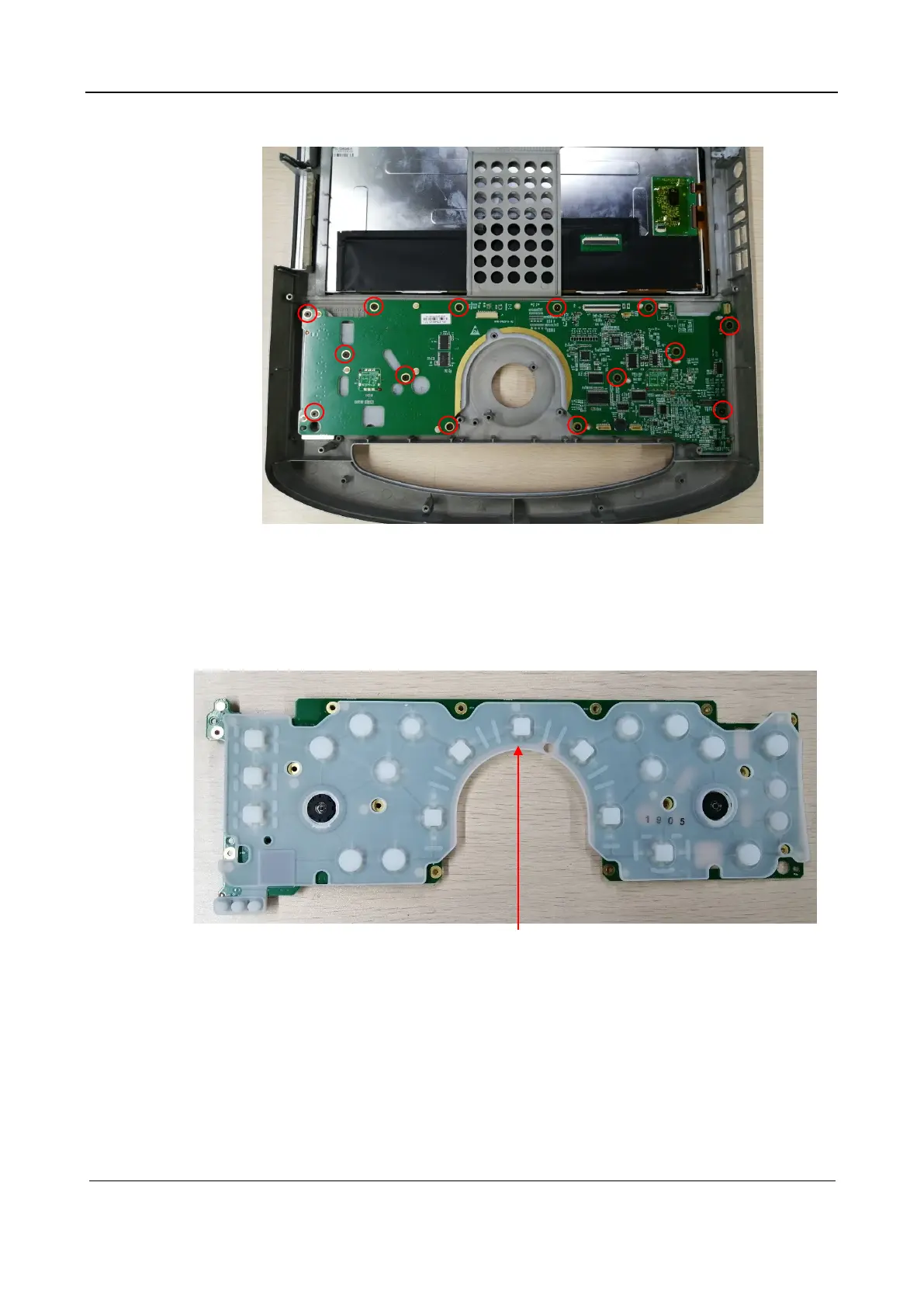

8. Silicon keyboard

The silicon keyboard needs to be manually detached as the silicon columns of the silicon keyboard

are embedded into the control panel.

9. Key

Take off the keys on the keyboard cover.

M2.5X4 plus flat-head screw

Silicon keyboard

Default Chapter3
