Part II General Information
Structure and Assembly/Disassembly 201
5.3.4 Removing the Probe Holder

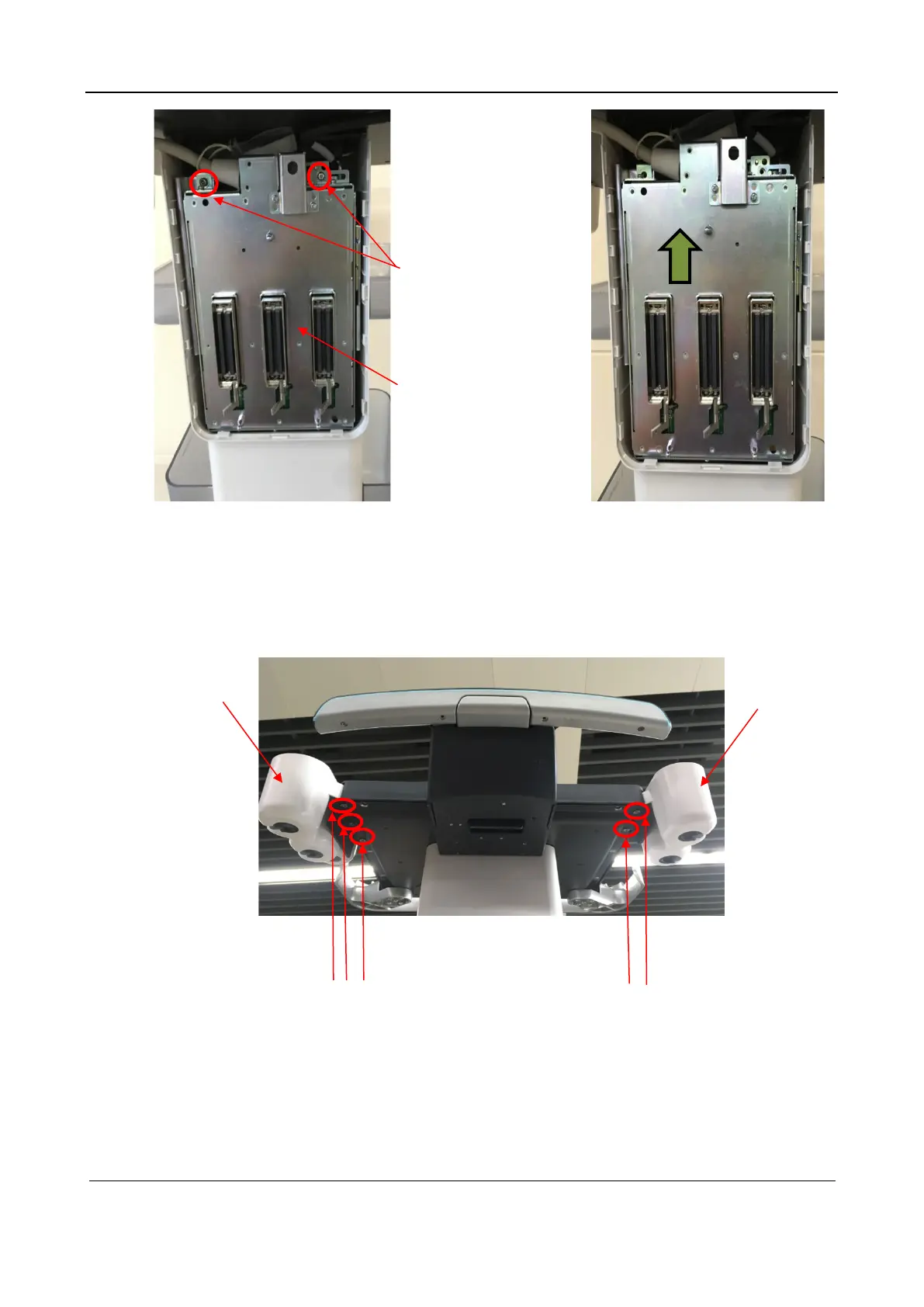

The trolley has two holders: left holder and right holder. Remove the three M3X12 cross recessed
countersunk head screws and two M4X12 cross recessed countersunk head screws from the beneath of
the trolley panel, and then take off the holders from the trolley panel.
M4X12 cross recessed
panhead screw (2 pcs)
Extender
Left holder
Right holder
M4X12 cross recessed
countersunk head screw (3 pcs)
M4X12 cross recessed
countersunk head screw (2 pcs)
