Part II General Information
Structure and Assembly/Disassembly 202

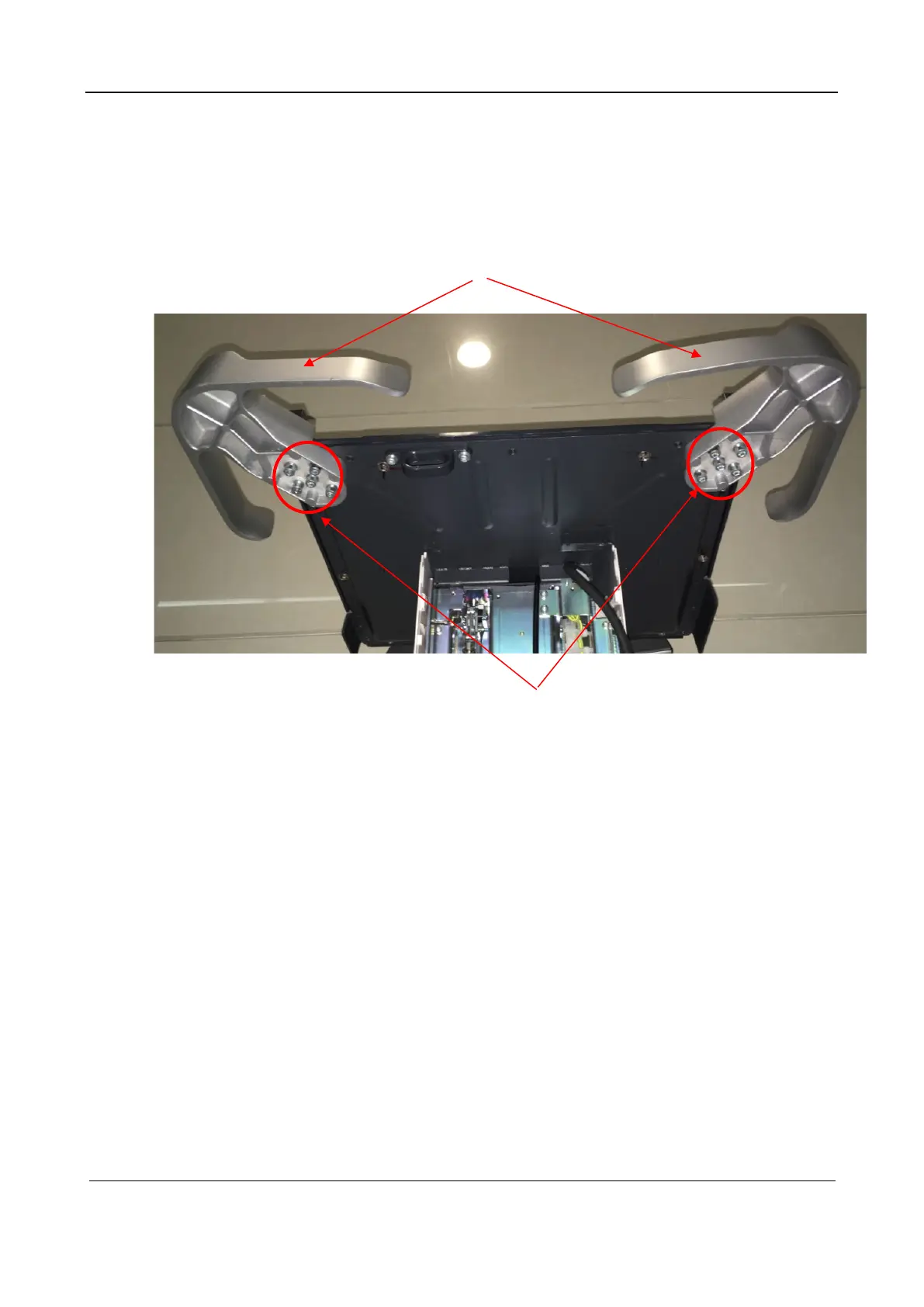

5.3.5 Removing the Anti-Collision Bracket
The trolley has two anti-collision brackets mounted on the left and right sides of the trolley panel. Use
an Allen wrench (M5) to remove the 10 M5X12 hex socket screws for fastening the anti-collision
brackets on the left and right sides of the trolley panel, and then take off the anti-collision brackets from
the panel.
5.3.6 Removing the Upper Cover of the Trolley Control Panel
1. Remove the 10 M4X12 cross recessed countersunk head screws from the rear side of the trolley
control panel, as shown in the following figure.
2. Take off the upper cover of the trolley control panel upwards.
Anti-collision bracket
M5X12 hex socket screw (10 pcs)
