Part II General Information
Structure and Assembly/Disassembly 210

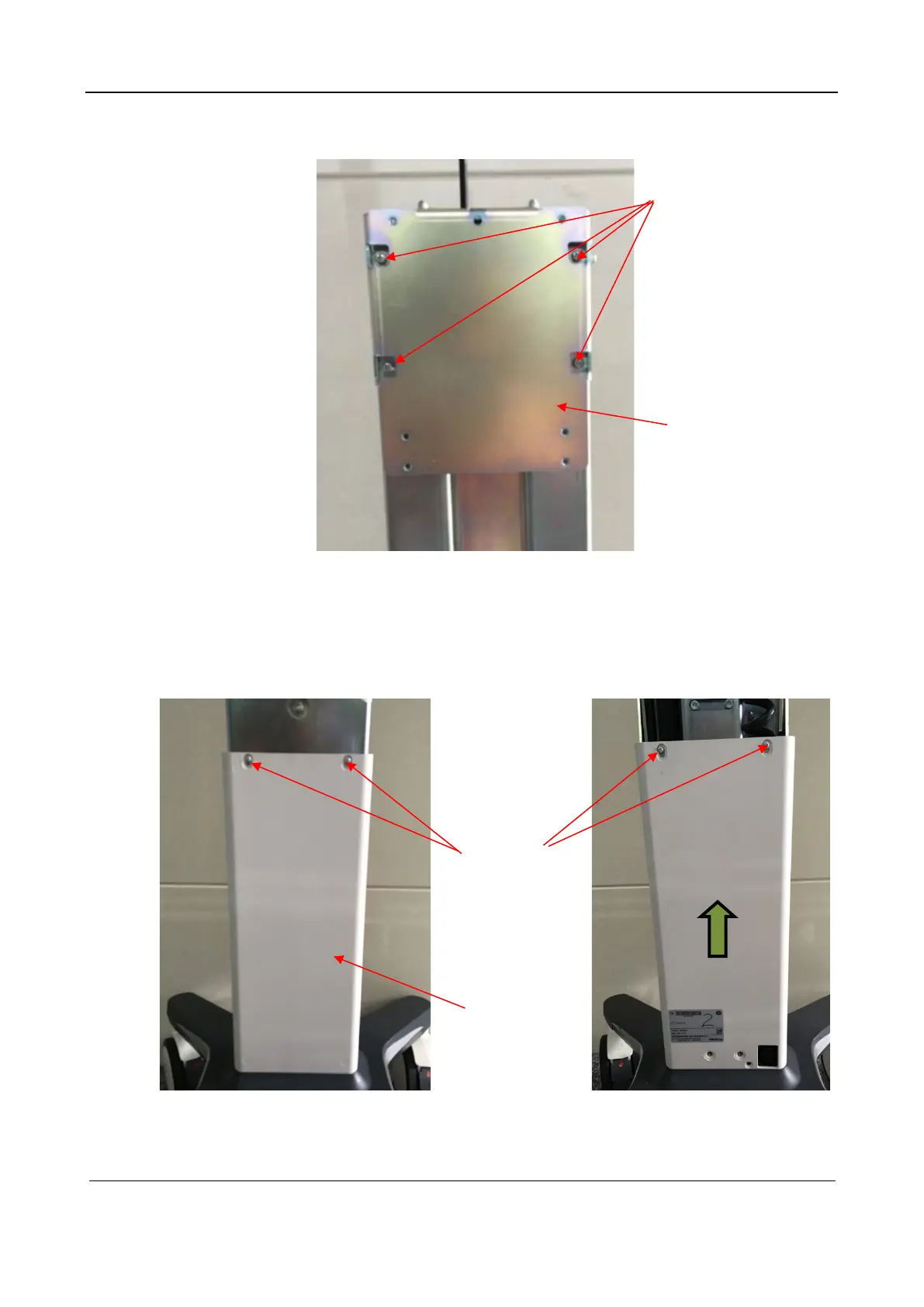

On top of the column front, remove the four M3X12 cross recessed panhead screws for
fastening the assembly bracket of the shell, and take off the assembly bracket.
b Remove the shell of the inner column.
Remove the four pairs of M3X5 flathead screws on the front and rear sides of the shell of the
inner column, and then extract the shell of the inner column from bottom up. Drag the spring
cable to avoid clamping the cable.
4. Disassemble the gas spring.
a Remove the cable clip for fastening the guy-wire.
Assembly bracket
of the shell
M4X12 cross recessed
panhead screw (4 pcs)
Front
Rear side
Shell of the
inner column
M3X5 flathead
screw and M3 plain
washer (4 pairs)
To Next Page
