Mindray ME8 Service Manual

Part II General Information
Structure and Assembly/Disassembly 214
5.3.10 Disassembling the Winder

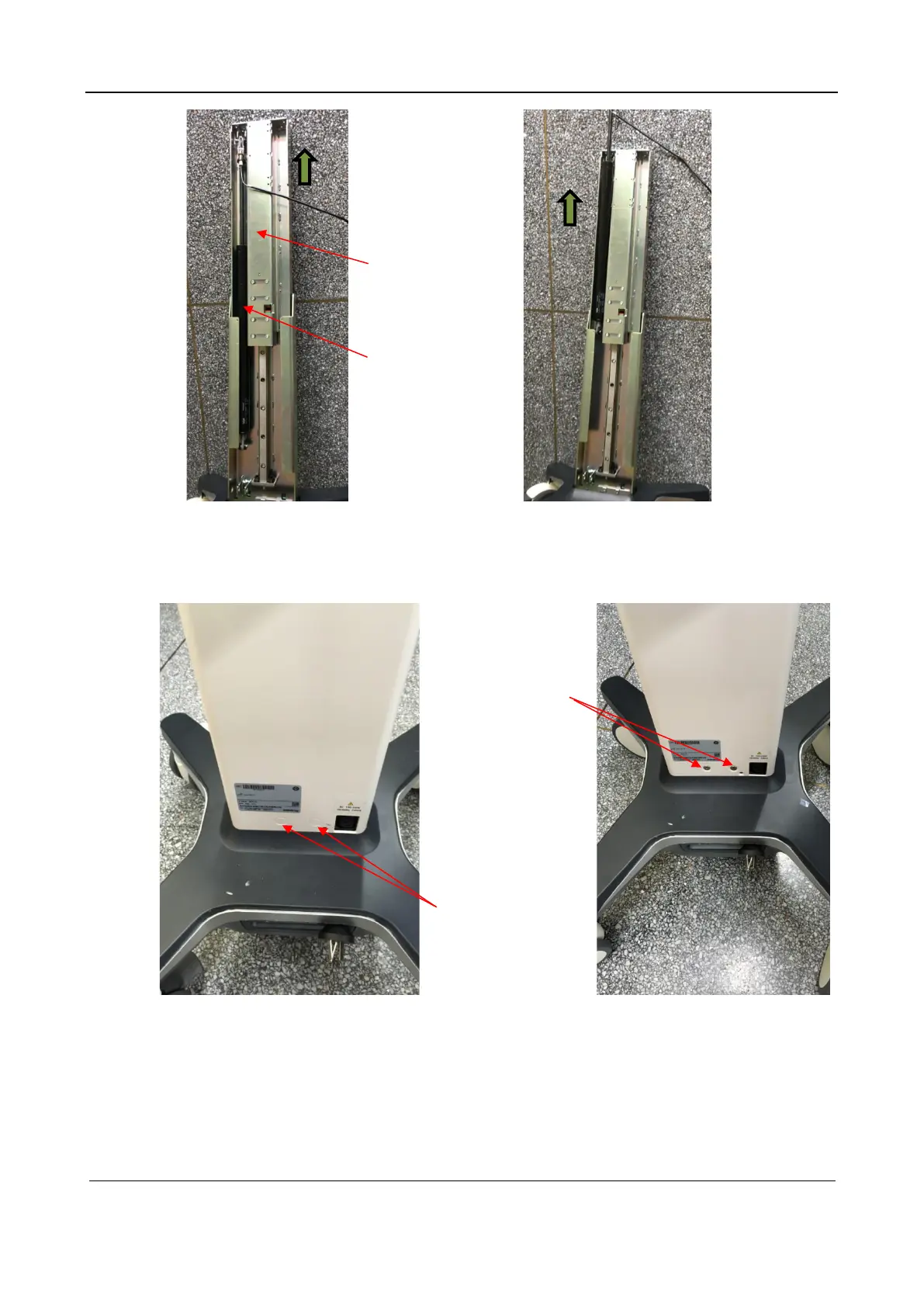

1. Tear off the screw paster from the shell of the column and remove the two M5X10 cross recessed
countersunk head screws.
2. Remove the base.
Lock the casters and enable the casters to face the outside. Put down the trolley, remove the eight
M4X12 cross recessed panhead screws shown in the figure, and drag with force to take off the
base.
Outer column
Gas spring
Screw paster
M5X10 cross recessed
countersunk head screw
(2 pcs)
