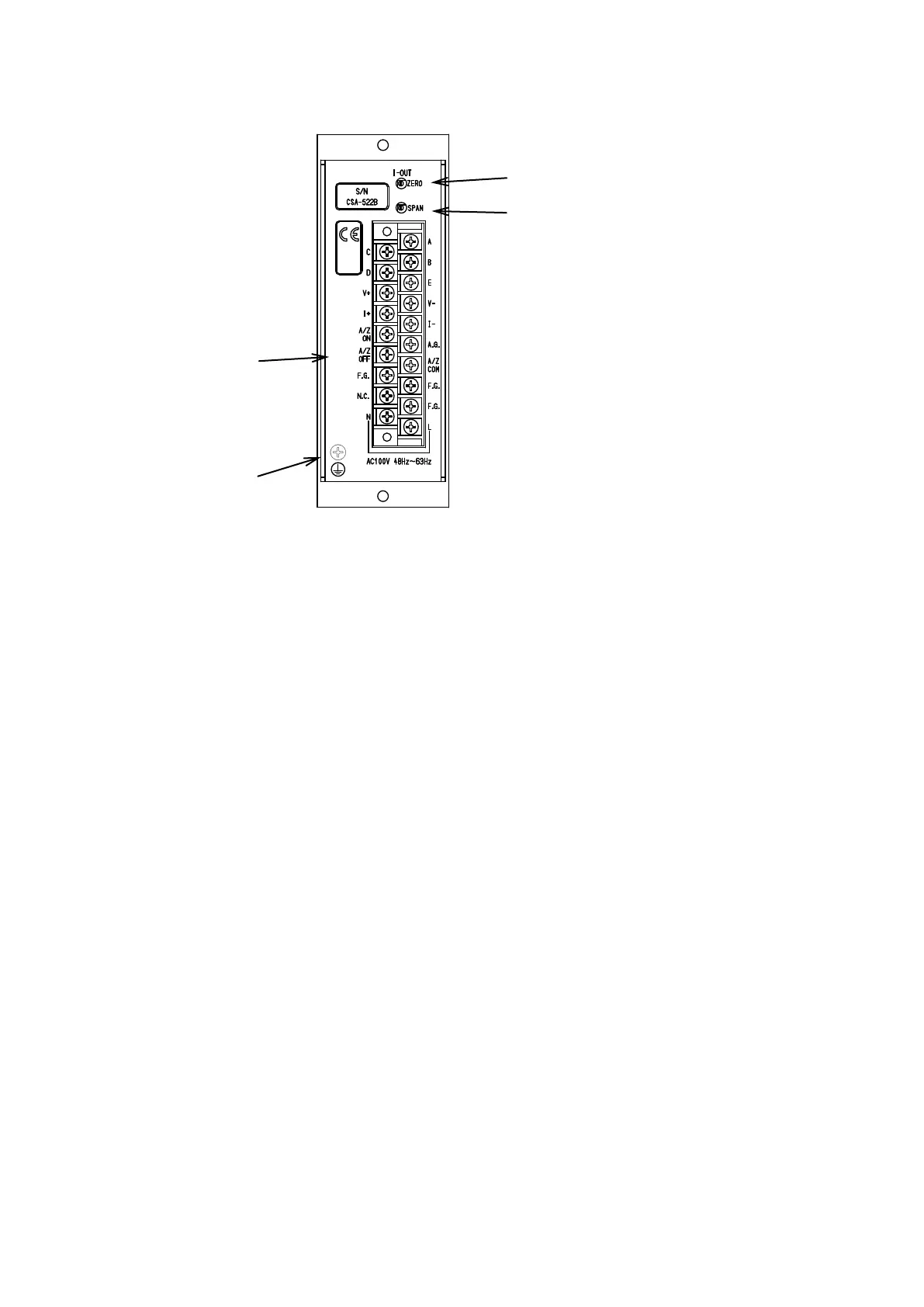

1-2. Rear pannel
① Terminal board
The vaious strain gage applied transducers like load cell, etc., voltage output, current output,
external control input (Option), grounding wire and AC power supply are connected.
② I-OUT ZERO fine control trimmer
It is the fine control trimmer of the current output (DC4 mA).
③ I-OUT SPAN fine control trimmer
It is the fine control trimmer of the current output (DC20 mA).
④ Protective earth terminal
Connect the grounding line to suit the CE Conformity Standard.
Do not connect excluding the grounding wire.
③ I-OUT SPAN fine control trimmer
② I-OUT ZERO fine control trimmer
④ protective
earth terminal
