2-4. Connection with power supply and ground

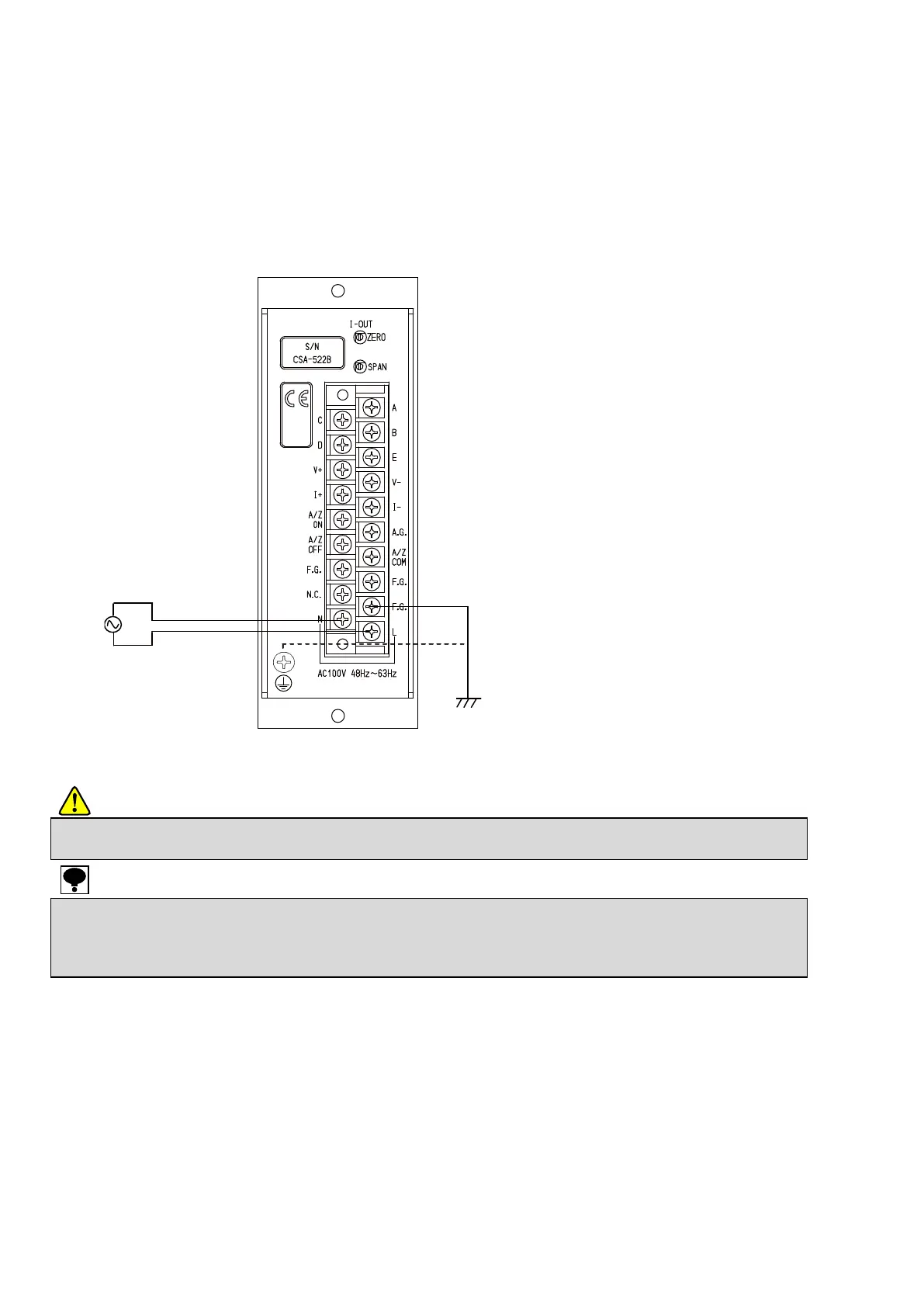

The connection with power supply and ground should be made as follows:
Beside, the grounding should be the D class with single ground.
Power supply voltage AC100 V (Permisible variable range AC90 V to AC110 V)
Power supply frequency 50/60 Hz
Power consumption Approx. 15 VA (without any options at AC100 V)
* When the power supply is AC110 V (CSA522B-P61), AC200 V (CSA522B-P63) or AC220 V
(CSA522B-P64), please refer the paragraph 6-2, 6-3 and 6-4.
Caution
● Connection with power supply and ground should be made securely as the figure indicates and also should be used within the specified
condition of power supply.
● The grounding for the instrument should be the D class with single ground. If negrected, it may cause an unexpected malfunction due to the
effects of noise from the other equipment.
● GND terminal and F.G. terminal is connected with the frame of the instrument.
● When this instrument suits the CE standard, please execute the single ground with protective earth terminal.
D class with single ground
AC100 V
（AC90 V to AC110 V）
