III
② When you set up this instrument
Warning

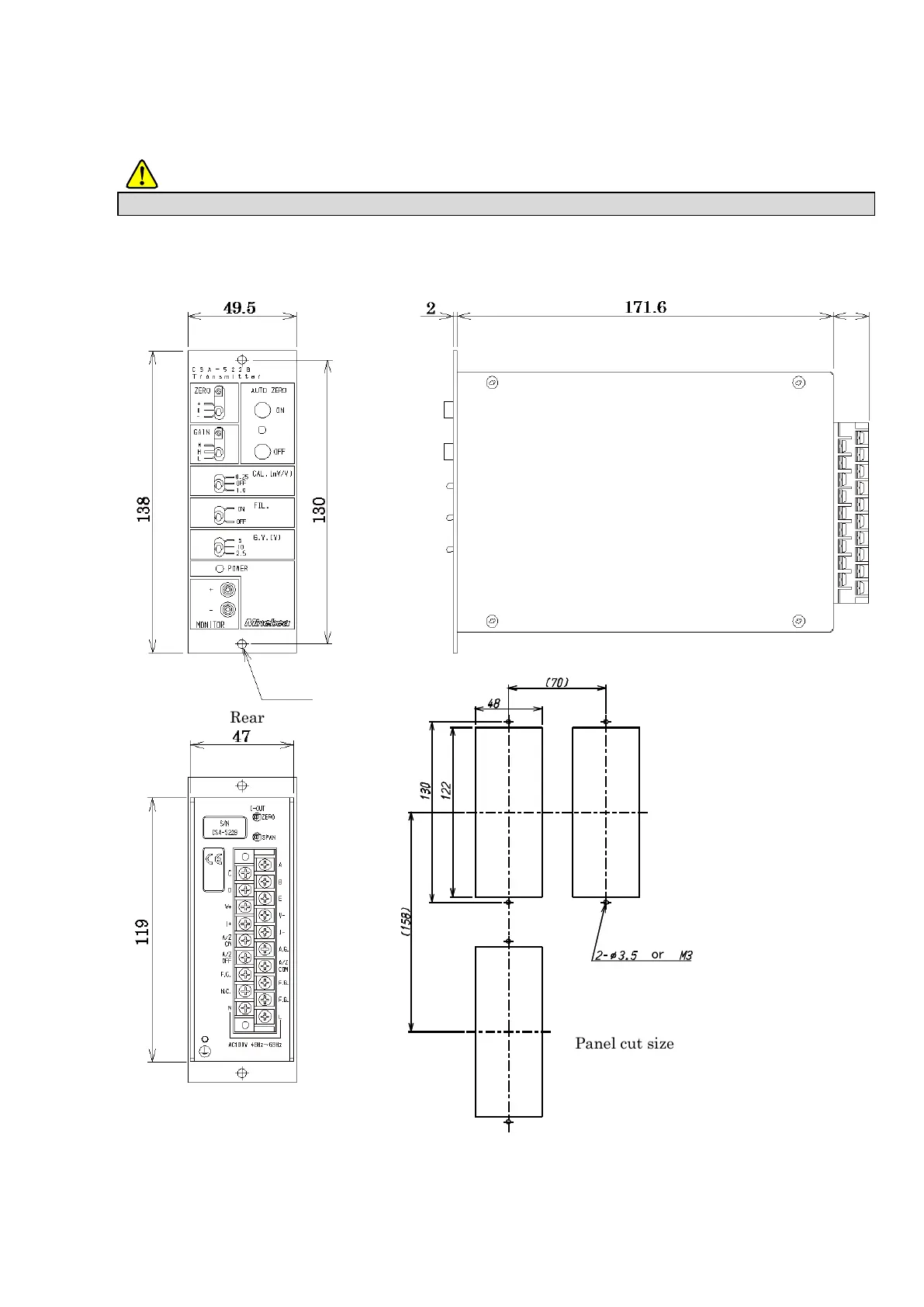

Each dimensions of the instrument and required dimensions for the environmental spaces are as
follows:
Install based on the following sizes to set up this instrument, and secure the space for surroundings of this container.
Unit：mm
Front
Side
Rear
Panel cut size
or
2-φ4
（20）
