Instruction Manual Page 11
c) Connect the coil connector (13) to the
plug on the rear of the control box (14).
d) Use Velcro
TM
tabs to secure cable in the
correct position on the shaft maintaining
slack at coil and control box.
Note: Weather Protection - The hipmounted
bag (available as an accessory item) is
designed so that it can be used to
weatherproof your control box while detecting
in inclement weather. The new design allows
the hipmount bag to protect the control box while still on the shaft. The
control box is positioned into the hipmount bag with the slot for the
mounting bracket positioned at the back. The velcroed panel is then
wrapped across the top of the stem.
5.5 Rear Shaft Mount
The Sovereign Elite provides the option of
mounting the control box at the rear of the
shaft (2), beneath the armrest.
In order to mount the control box (1) in this
position:
a) Loosen the nylon wingnuts from the
armrest and remove the detector stand.
b) Slide in the black plastic rear control box
bracket (8).
c) Tighten the nylon wingnuts on the armrest.
d) Clip the control box onto the rear mounting bracket (see figure 5).
e) Firmly wind the cable up the stem using the Velcro
TM
tabs to hold in
position.
f) Connect the coil connector (13) to the plug (14) on the rear of the
control box.

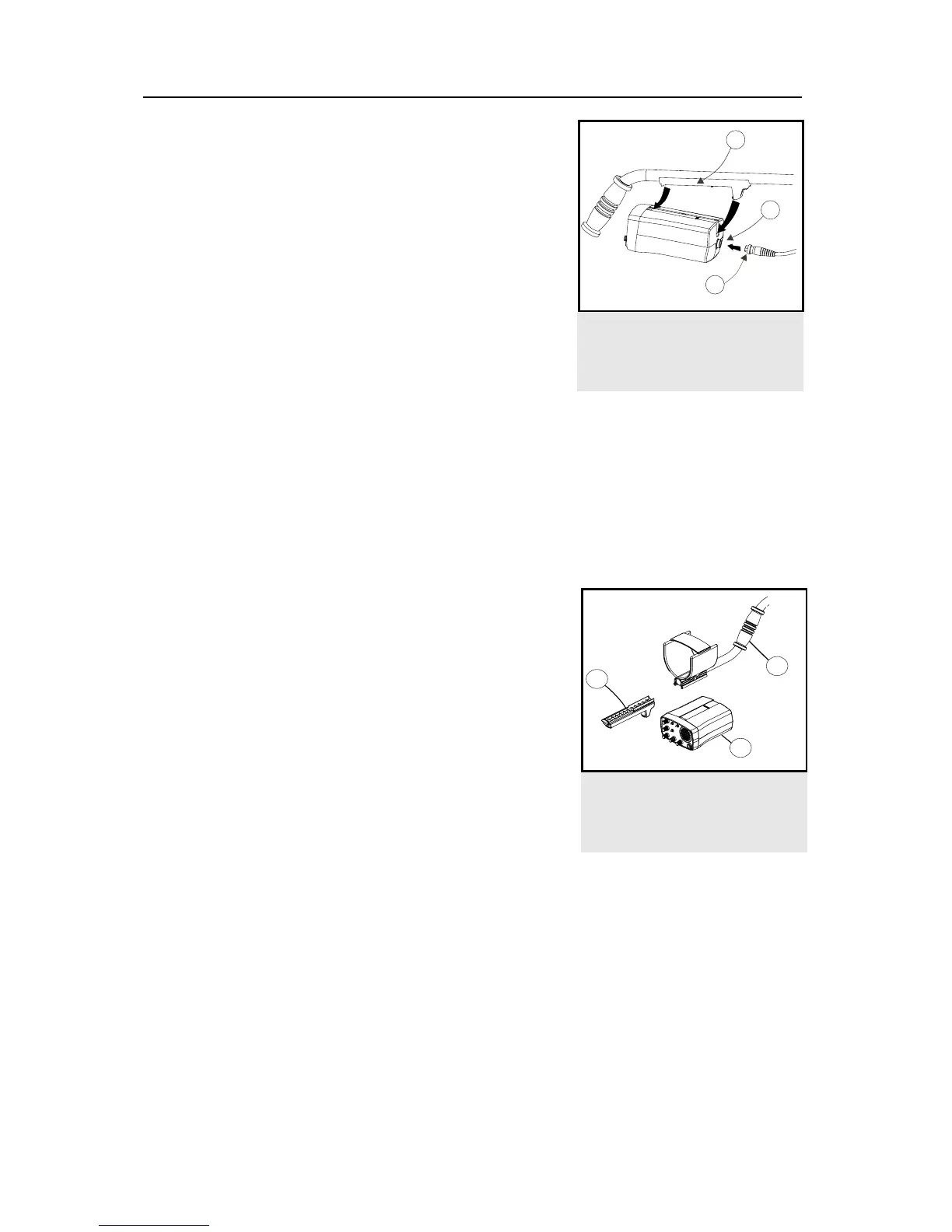

Figure 5 - Mounting
the control box on the
shaft
Figure 6 - Mounting
the control box to the
rear of the shaft
