Chapter 2. TECHNICAL FEATURES EN

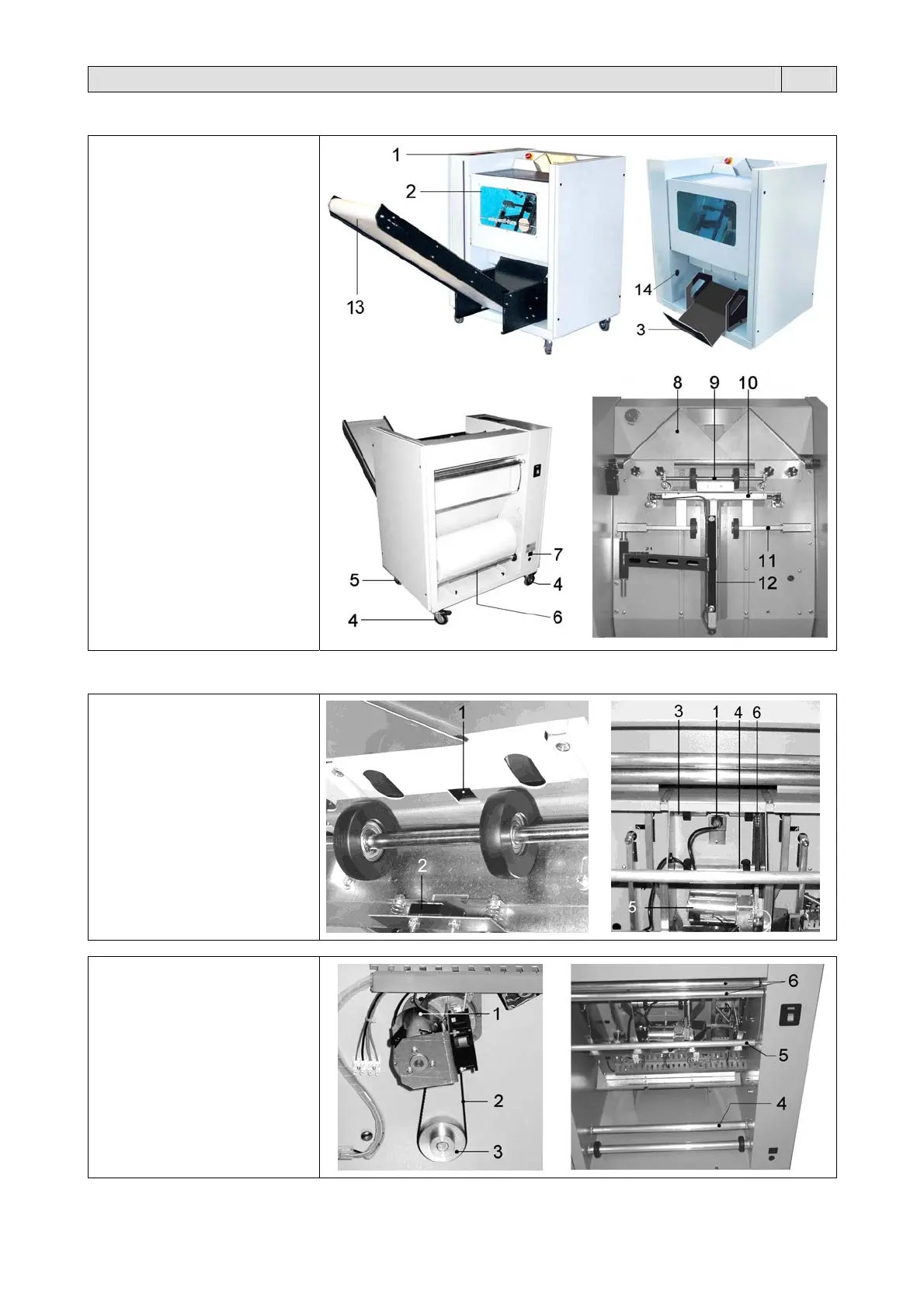

2.1 MACHINE DESCRIPTION
1. Control panel
2. Front door
3. Magazine container
4. Wheel with brake
5. Wheel
6. Unroller
7. Power connection
8. Forming box
9. 1° guide
10. Cross welding bar
11. 2° guide
12. Longitudinal welding bar
13. Conveyor belt
(optional device)
14. Power connection
(for conveyor belt)
2.1.1 PARTS DETAILS
Feed assembly
1. Photocell
2. Reflector
3. Feed roller
4. Feed roller
5. Gearmotor
6. Cogged belt
Unroll assembly
1. Gearmotor
2. Cogged belt
3. Pulley
4. Engine driven roller
5. Horizontally pivoted roller
6. Idle roller
