MINIWARE DT71 - Page 5

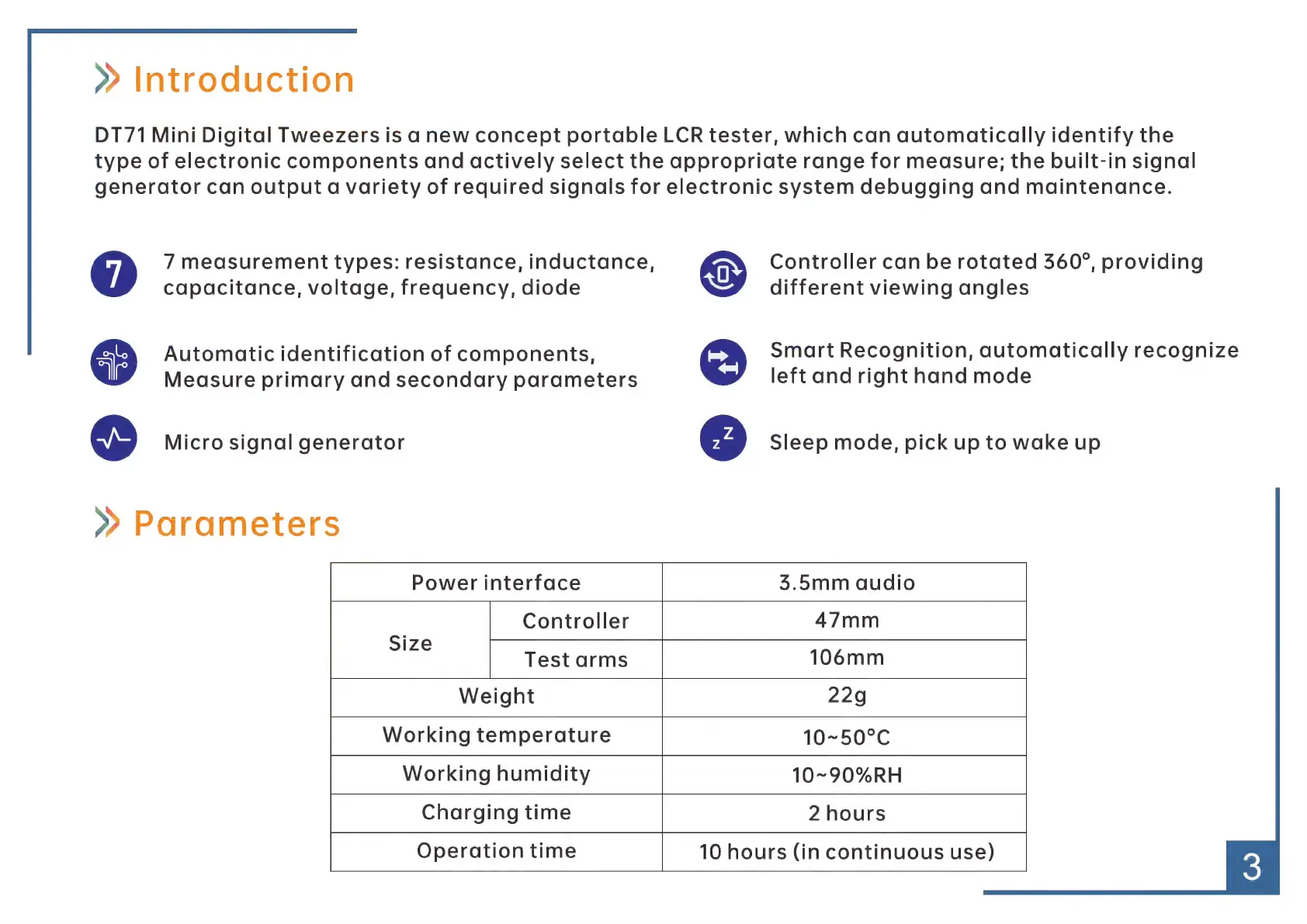

» Introduction
DT71 Mini Digital Tweezers is a new concept portable LCR tester, which can automatically identify the
type of electronic components and actively select the appropriate range for measure; the built-in signal
generator can output a variety of required signals for electronic system debugging and maintenance.
GD 7 measurement types: resistance, inductance,
capacitance, voltage, frequency, diode
Automatic identification of components,
U measure primary and secondary parameters
® Micro signal generator
”» Parameters
® Controller can be rotated 560°, providing
different viewing angles
@ Smart Recognition, automatically recognize
left and right hand mode
22) Sleep mode, pick up to wake up
Power interface 5.5mm audio
Controller 47mm
GIEE Test arms 106mm
Weight 22g
Working
temperature
10-50°C
Working humidity 10-90%RH
Charging time 2 hours
Operation time 10 hours (in continuous use)
