MINIWARE DT71 - Preparation before Measuring

N /N Measure

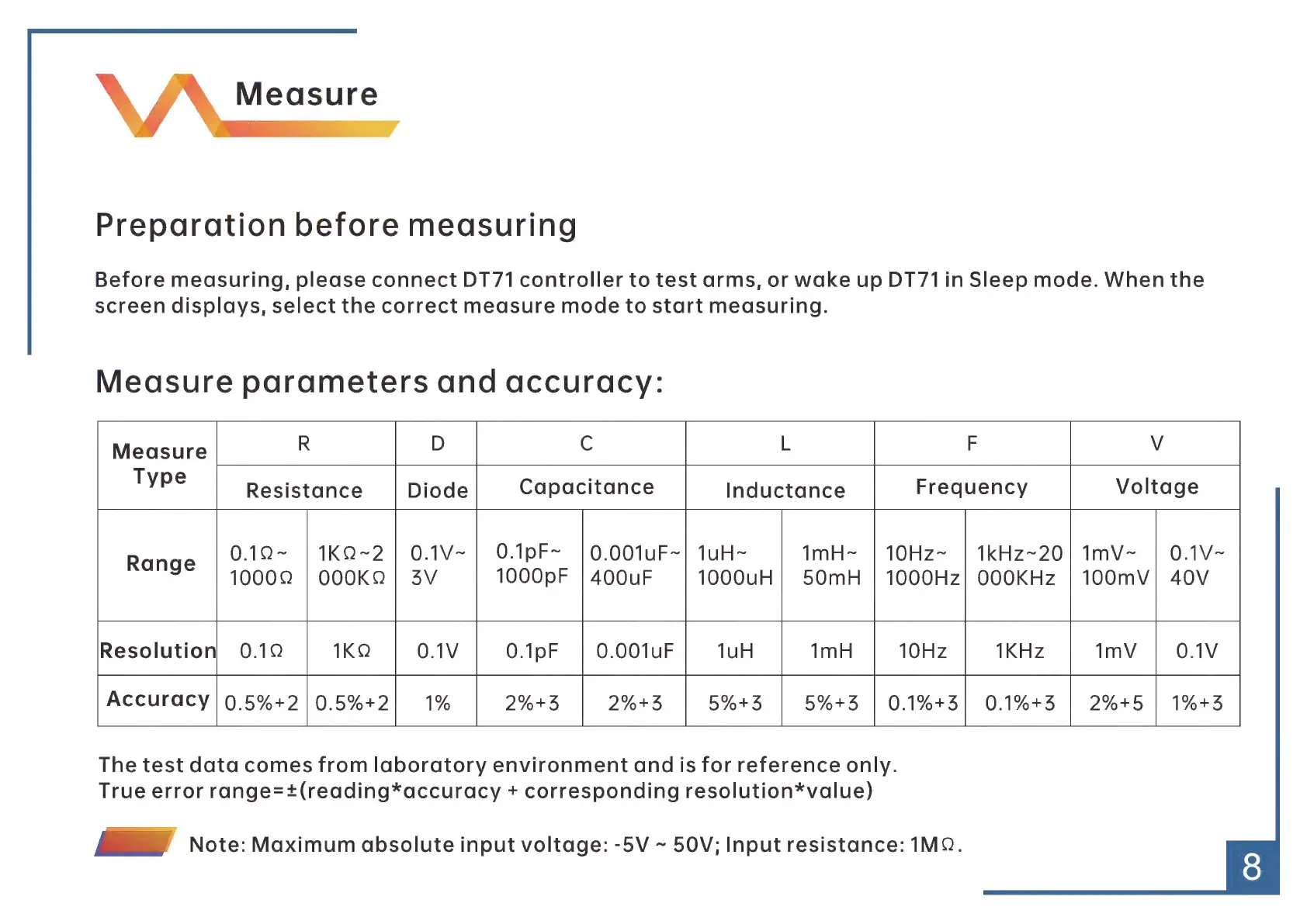

Preparation before measuring
Before measuring, please connect DT 71 controller to test arms, or wake up DT71 in Sleep mode. When the
screen displays, select the correct measure mode to start measuring.
Measure parameters and accuracy:
Measure R D C L F V
lee Resistance Diode Capacitance Inductance Frequency Voltage
Range 0.12- |1KQ-2 [| 0.1V- | O.1pF- [0.001uF-| 1uH- ImH=- | 10Hz- | 1kHz=-20 | ImV- 0.1V-
10009 | OOOKA | 5V 1000pF | 400uF 1000uH | 50mH | 1000Hz| OOOKHzZ | 100mV | 40V
Resolution, 0.10 IKO 0.1V 0.JpF | 0.001uUF 1uH 1mH 10Hz 1KHz 1mV 0.1V
Accuracy | 0.5%+2/0.5%+2| 1% 2%+3 2%+5 5%+5 5%+5 | 0.1%+5| 0.1%+5 | 2%+5 | 1%6+3
The test data comes from laboratory environment and is for reference only.
True error range=t(reading*accuracy + corresponding resolution*value)
ik Note: Maximum absolute input voltage: -5V = 5OV; Input resistance: IMO.
