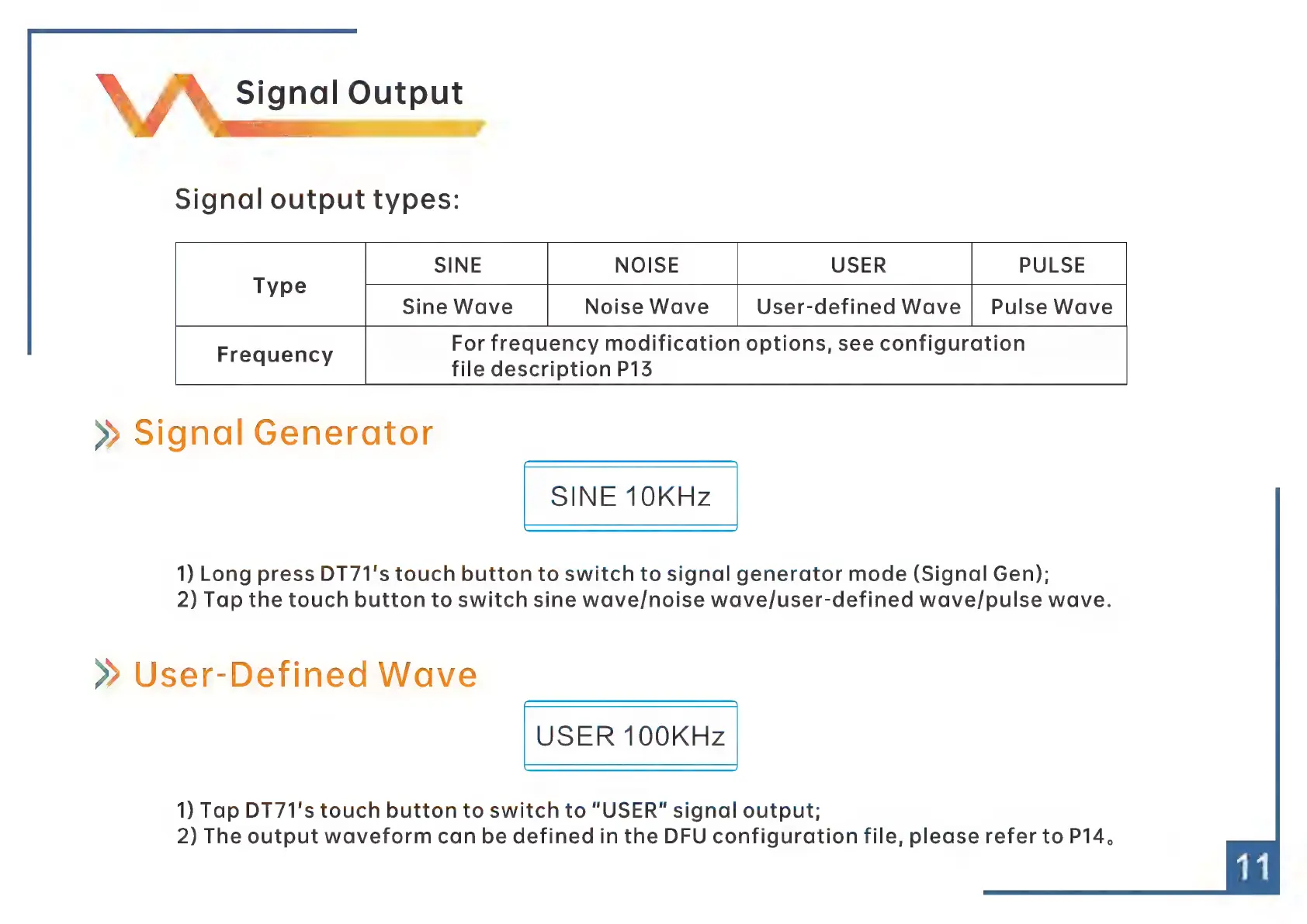

MINIWARE DT71 - Signal Generator

N A Signal Output
Signal output types:
SINE NOISE USER PULSE
Type
Sine Wave Noise Wave User-defined Wave | Pulse Wave
For frequency modification options, see configuration
EES file description P13
» Signal Generator
SINE 10KHz
1) Long press DT71's touch button to switch to signal generator mode (Signal Gen);
2) Tap the touch button to switch sine wave/noise wavel/user-defined wave/pulse wave.
» User-Defined Wave
USER 100KHz
1) Tap DT71's touch button to switch to "USER" signal output;
2) The output waveform can be defined in the DFU configuration file, please refer to P14,
