INSTALLATION

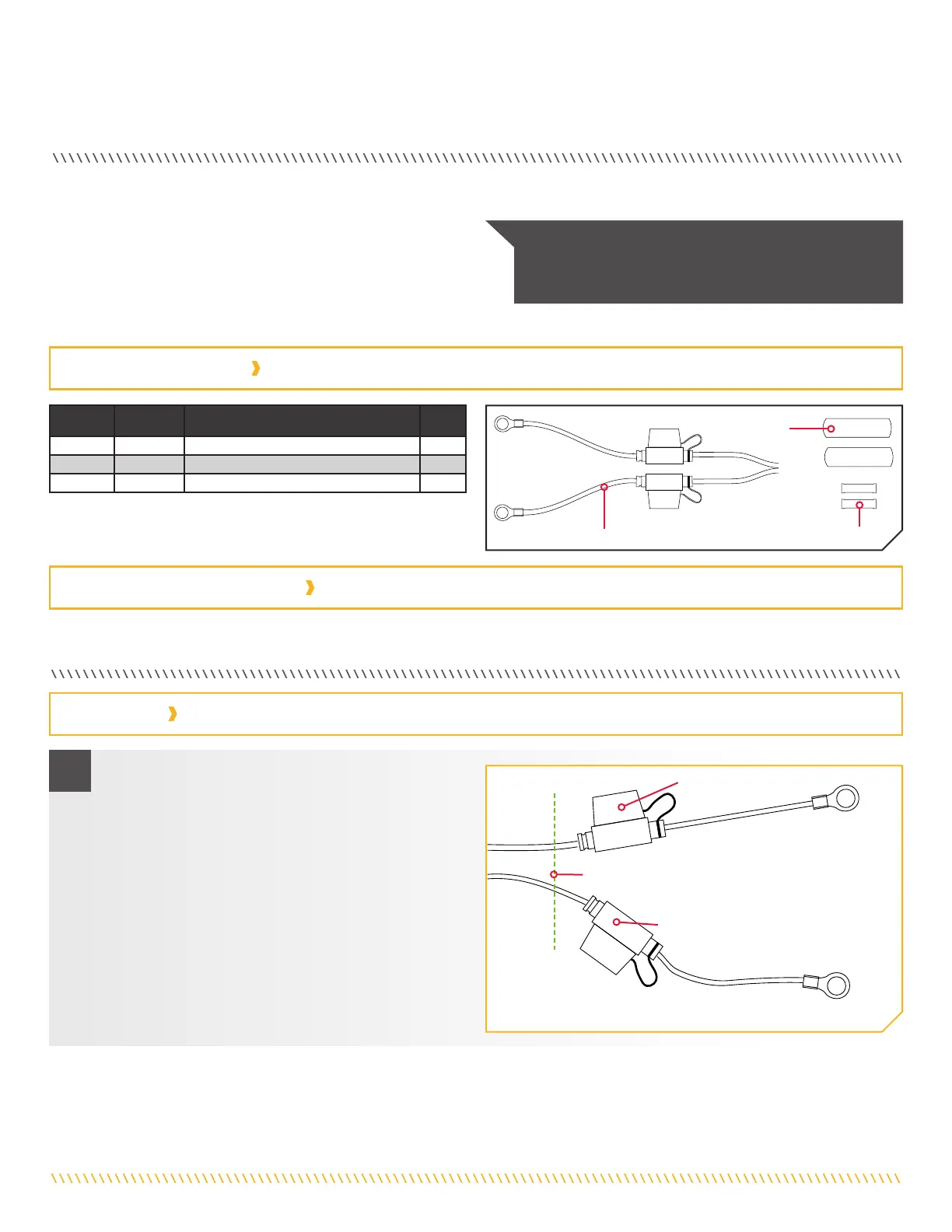

The Minn Kota Battery Charger Extension Cables are ideal for
extending charger output cables that do not reach the bow,
center or transom battery compartments. Features easy installation
with waterproof adhesive heat shrink for use in saltwater
environments. Each conductor is fused for protection against
accidental short circuits.
1
2
3
a. Remove AC power from your charger and disconnect
the charger from ALL batteries.
b. Open the door or hatch of the compartment and allow
it to air out for 15 minutes. This allows any gases that
have accumulated in the compartment to escape.
c. Find the Charger Output Cable you would like to
extend and use the wire cutters to cut the red or
white (positive) and black (negative) wires before
the Fuse Holders.
Charger Output CablesCharger Output Cables
Cut HereCut Here
Fuse HolderFuse Holder
Fuse HolderFuse Holder
• Wire Cutters
• Wire Strippers
• Crimpers
• Heat Gun
TOOLS AND RESOURCES REQUIRED
INSTALLATION
1
NOTICE: The MK-EC Battery Charger Extension Cable
(#1820089) is an optional kit that is NOT included with
the charger.
INSTALLING THE MK-EC BATTERY CHARGER EXTENSION CABLE
Item /
Assembly
Part # Description Qty.
1
✖
15FT EXTENSION CABLE 1
2
✖
WIRE SPLICE 2
3
✖
ADHESIVE HEAT SHRINK 2
✖ This part is included in an assembly and cannot be ordered individually.
INSTALLATION PARTS LIST
To Next Page
