20 | minnkotamotors.com
©2021 Johnson Outdoors Marine Electronics, Inc.
OPERATING INSTRUCTIONS
FLOODED LEAD-ACID
BULK FLOAT
AMPS & VOLTS
AMPS
TIME
VOLTS
ABSORPTION MILD
EQUALIZE
24 Hours
15.5V
13.2V
14.4V
Long Term
AMPS & VOLTS
TIME
AMPS
VOLTS
AGM / HP AGM
BULK FLOATABSORPTION
24 Hours
13.4V
14.4V
Long Term
AMPS & VOLTS
TIME
LITHIUM LiFePO
4
BULK
14.5V MAX
Long Term

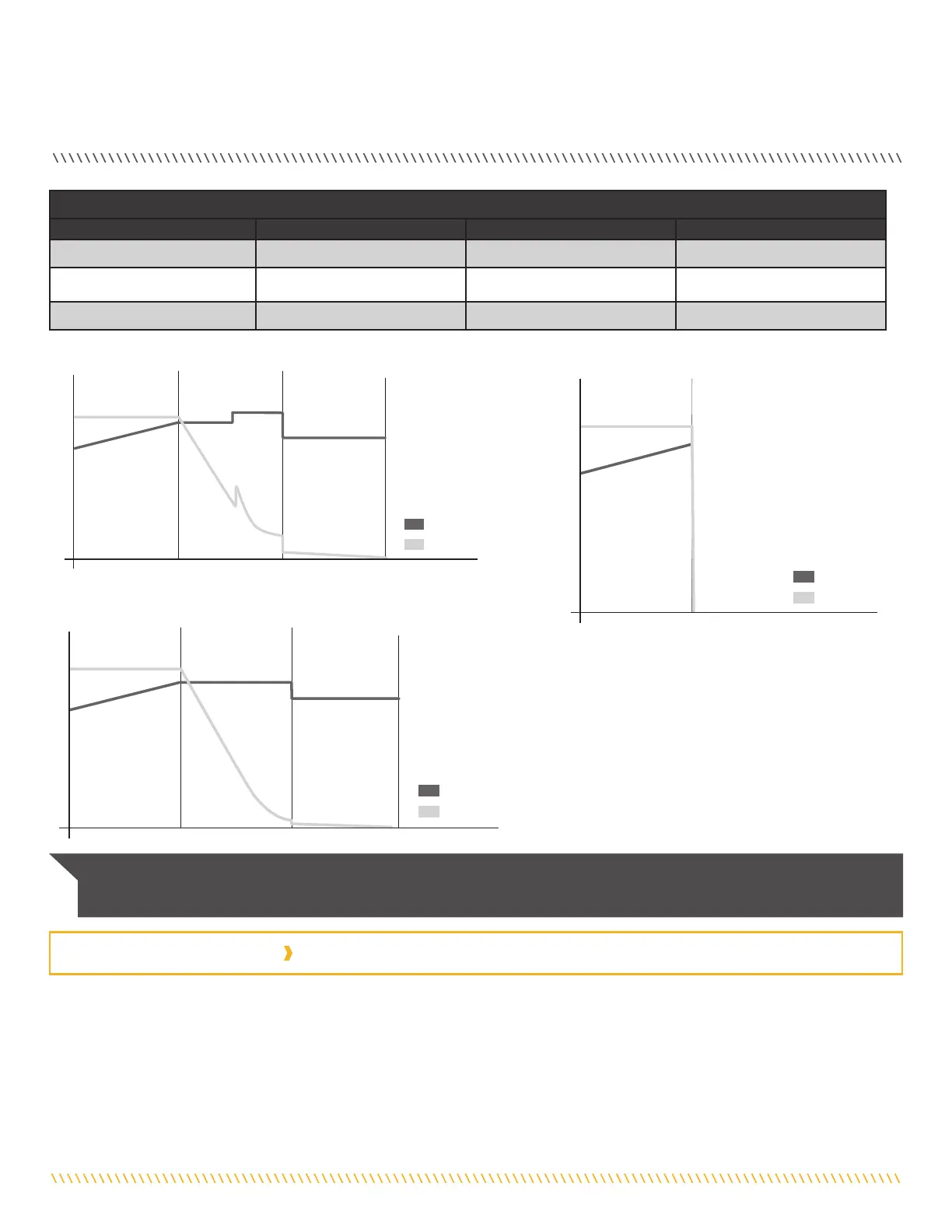

Charging Profile @ 25° C
Battery Type End of Bulk Equalize Float
Flooded Lead-Acid 14.4V 15.5V 13.2V
AGM/High Performance AGM
(Absorbed Glass Mat)
14.4V n/a 13.4V
Lithium (LiFePO
4
)
14.5V
n/a n/a
AMPS
VOLTS
LITHIUM LiFePO
4
BULK
14.5V MAX
Long Term
NOTICE: In long term storage, the charger will automatically resume the charging process beginning with Bulk Mode when the
battery voltage drops below 12.6V.
TEMPERATURE COMPENSATION
Temperature compensation is only applied to Lead-Acid Batteries (Flooded, AGM and HP AGM) and not required for Lithium Batteries.
To optimally charge a Lead-Acid Battery, the charging voltages need to be adjusted as the temperature of the battery changes. As the
temperature of the battery increases, the charging voltage should be decreased to prevent the battery from being over charged. As the
temperature of the battery decreases, the charging voltage should be increased to prevent under-charging of the battery. Only the “End
of Bulk” voltage is adjusted with temperature. For every degree C the temperature changes, the voltages are adjusted by 0.024 Volts.
