ADVANCED GPS NAVIGATION
Control HeadControl Head
Coil CordCoil Cord
MountMount
Advanced GPS Advanced GPS
Ethernet Ethernet
ConnectorConnector
Advanced Advanced
GPS CableGPS Cable
Advanced Advanced
GPS CableGPS Cable
GPS Ethernet Connection
Foot Pedal Foot Pedal
Power ConnectorPower Connector
Power Leads
Helix Adapter Helix Adapter
Cable (if needed)Cable (if needed)
Ethernet Cable Ethernet Cable
(provided)(provided)
Directly
to Solix
or Apex
To Helix
CAUTION
Failure to follow the recommended wire routing for installed features, if equipped, may cause damage to the product and void your
product warranty. Route cables away from pinch points or other areas that may cause them to bend in sharp angles. Routing the cables
in any way other than directed may cause damage to the cables by being pinched or severed. Do not over-tighten cable ties as it may
damage the wires.
NOTICE: Your fish finder should be turned o
until this procedure is complete.

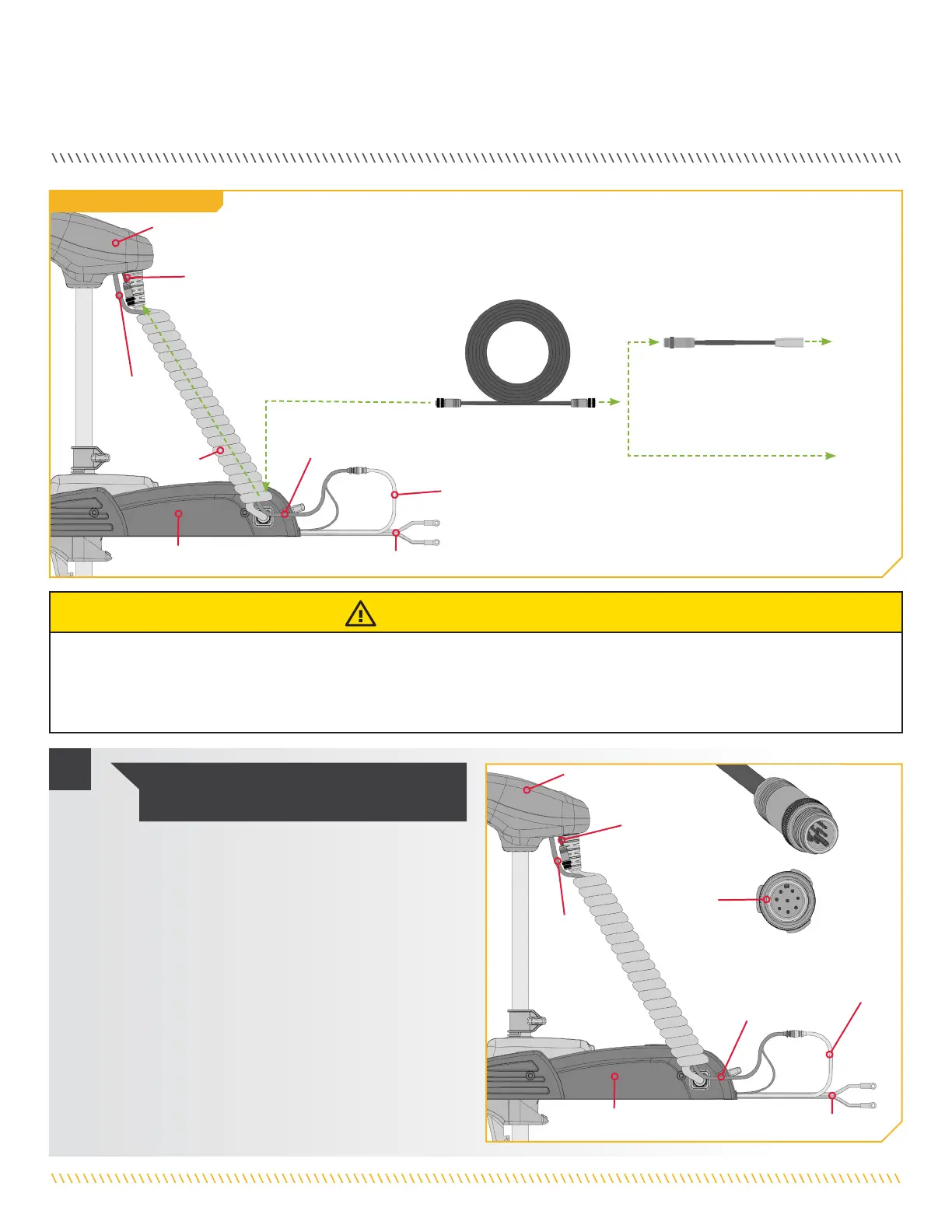

a. Place the motor in the deployed position.
b. Locate the Eight Pin Advanced GPS Ethernet
Connector below the Control Head. The Advanced
GPS Ethernet Connector will exit the base of the
Control Head and will rest just below the Control
Head next to the Coil Cord.
1
Eight Pin Eight Pin
Advanced Advanced
GPS Ethernet GPS Ethernet
ConnectorConnector
Control HeadControl Head
Advanced Advanced
GPS CableGPS Cable
Advanced Advanced
GPS Ethernet GPS Ethernet
ConnectorConnector
MountMount
Advanced Advanced
GPS CableGPS Cable
Foot Pedal Foot Pedal
Power Power
ConnectorConnector
Power Leads
To Next Page
