ADVANCED GPS NAVIGATION
Ethernet Ethernet
CableCable
Ethernet Ethernet
CableCable
ReceptacleReceptacle
Plug into Plug into
Helix Fish Helix Fish
FinderFinder
NOTICE: Minn Kota provides one Helix Adapter
Cable (
AS EC QDE - Ethernet Adapter Cable -
720074 -1
) with every trolling motor equipped with
Advanced GPS Navigation.
NOTICE: If unsure of what features your
trolling motor may be installed with that require
connection to an output device, please review
the "Identifying Trolling Motor Features And
Their Associated Cables" section of this manual.

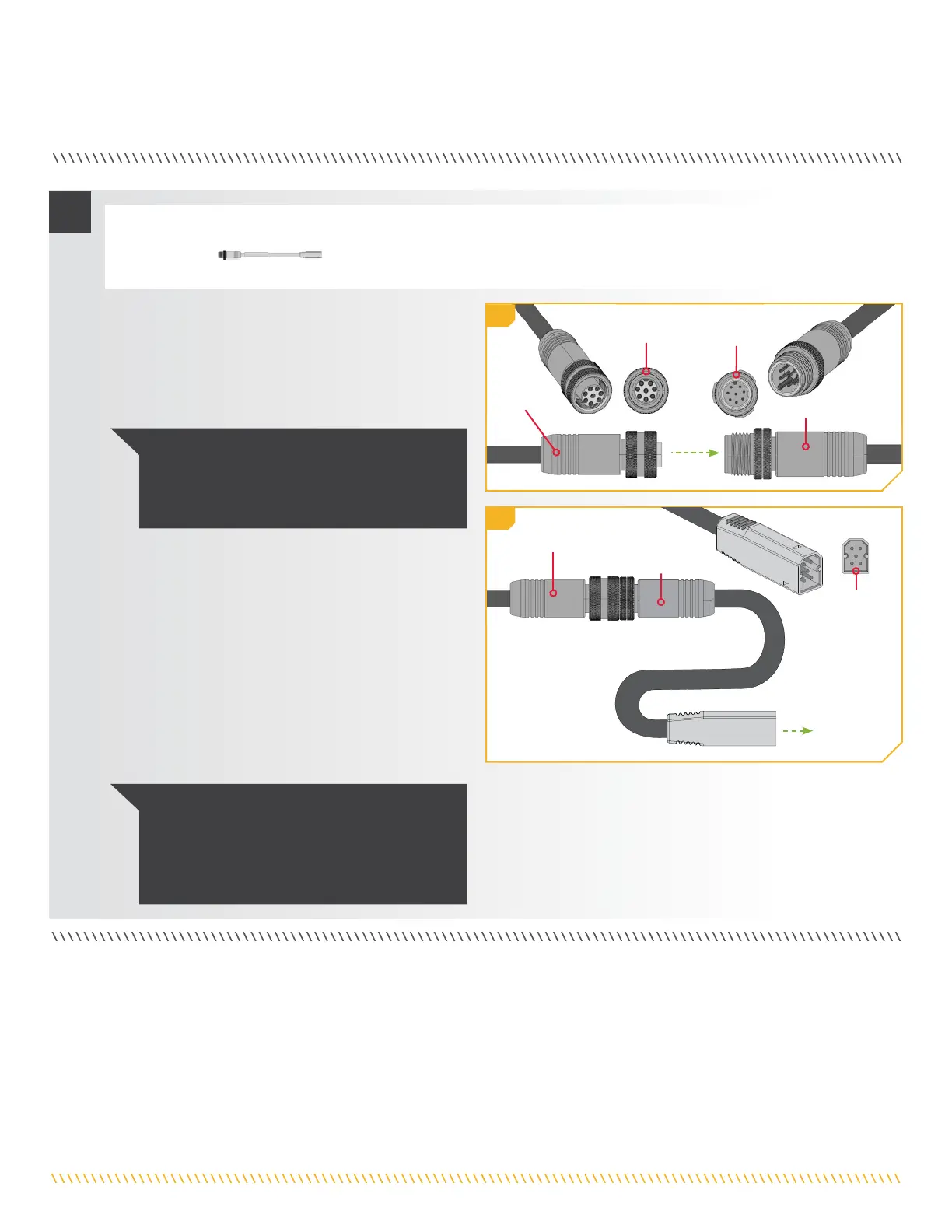

i. If installing directly to a Helix Adapter Cable
(Item #15), align the Receptacle on the Ethernet
Cable with the Eight Pin Connector on the Helix
Adapter Cable provided. Notice the keyed
connectors. Tighten the Collar from the Ethernet
Cable to secure the connection.
5
5j
5i
j. The Helix Adapter Cable directly connects the
Ethernet Cable to a Helix fish finder. Locate the
Helix Adapter Cable Keyed Connector on the
back of the fish finder. Plug the Helix Adapter Cable
into the back of the Helix fish finder to complete
the connection.
k. If your trolling motor has more than one external
connector for an output device, complete the
connection for that specific output and then follow
the instructions for "Securing Accessory Cables"
to complete the output cable installation.
ITEM(S) NEEDED
#15 x 1
Helix Adapter CableHelix Adapter Cable
Eight Pin Eight Pin
ConnectorConnector
Adapter Adapter
Cable Keyed Cable Keyed
ConnectorConnector
Helix Adapter CableHelix Adapter Cable
To Next Page
