INSTALLATION:
We recommend that you have another person
help with this procedure. Tools required: 7/16"
wrench, #3 phillips screwdriver and electric
drill with a 9/32" bit.
1. Remove the four sideplate screws. Remove
the right
sideplate and swing the left sideplate out and
away from the base extrusion.
2. Place the motor on the bow of the boat in the
deployed position:
• We recommend that the motor be mount-
ed as close to the centerline of the boat as
possible.
• Make sure the bow area under the mount-
ing location is clear and unobstructed for
drilling and accessible for you to attach the
nuts and washers.
• Make sure the mount is positioned so that
the shaft is out beyond the rub strip of the boat
by 1 1/2”. The lower unit, as it is lowered into
the water or raised into the boat, must not
encounter any obstructions.
3. Once in position, mark four of the twelve holes
provided in the bow mount base for drilling. If
possible, use the four holes that are farthest
apart. Drill through the marked holes using a
the 9/32" drill bit.
4. Mount the plate to the bow using the provided
bolts, nuts and washers.
5. Replace the sideplates and sideplate screws.
CAUTION: MAKE SURE YOU MOUNT YOUR MOTOR ON A LEVEL SURFACE. USE
THE RUBBER WASHERS TO CREATE A LEVEL SURFACE — IF NECESSARY.

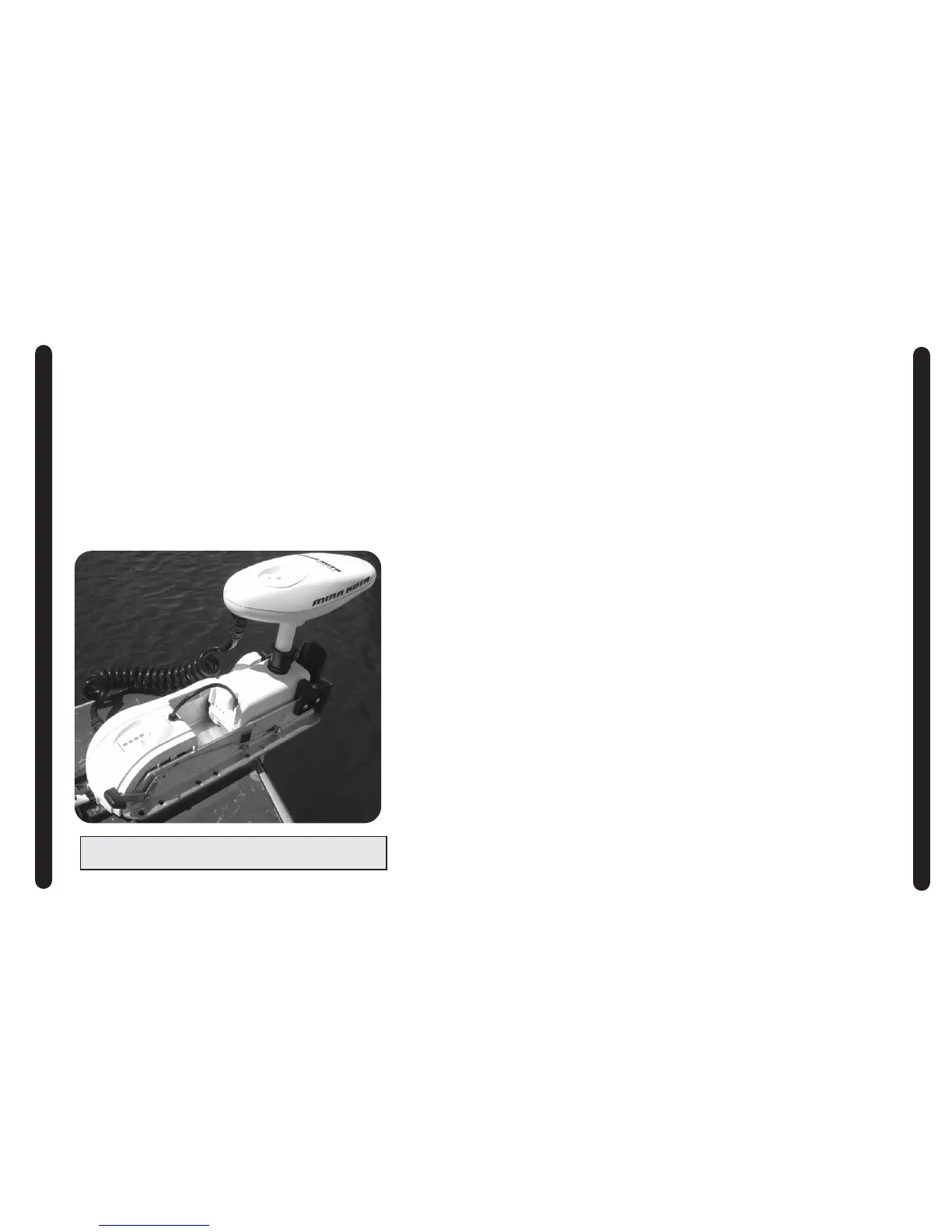

Mount Bracket so that
during stow and
deploy, the shaft will
not encounter boat’s
rub strip.
The latch collar is
adjustable. If need-
ed, loosen the
Phillips head screw
and rotate the collar
up or down to
change the motor’s
position on the
ramps.
