minnkotamotors.com | 13
©2019 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE RIPTIDE ULTERRA

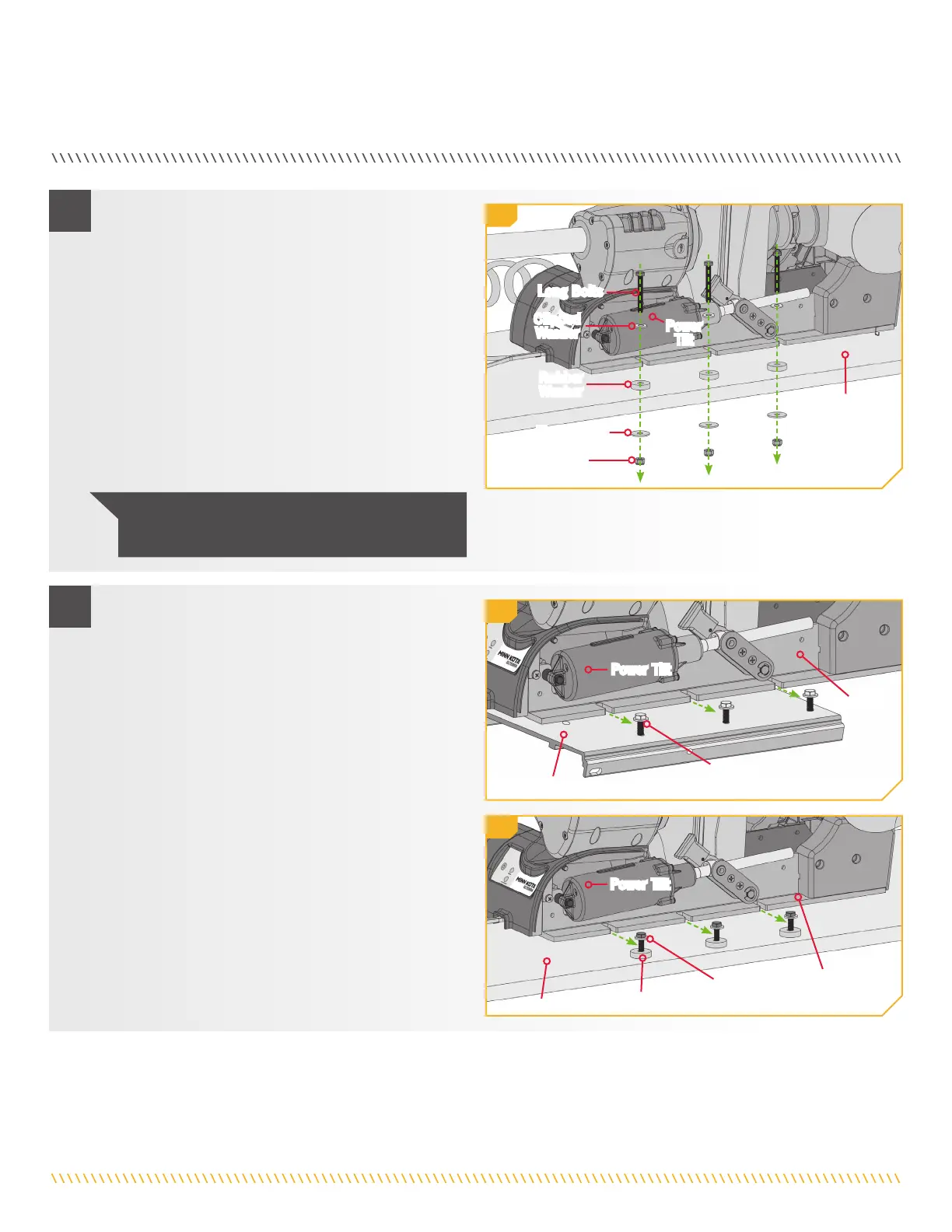

o. If installing directly to the boat deck, install the
motor with the Long Bolts (Item #2), Clipped Washer
(Item #4), Flat Washer (Item #5) and Nylock Nut
(Item #6). Orientate the Clipped Washers so that the
flat side of the washer is towards the Base Extrusion.
The Bolt should pass through the Clipped Washer,
the Rubber Washer and then through the Boat Deck.
The Bolt should be secured by first adding the Flat
Washer (Item #5) to the Bolt and securing with a
Nylock Nut (Item #6). Leave at least 1/4" space
between the Hex Head Bolt and Clipped Washer and
the deck of the boat. This will leave enough space
to slide the Base Extrusion between the Clipped
Washer and Rubber Washer and into place.
p. Slide the Base Extrusion into place under the Bolts
that were just installed.
q. If installing with a Quick Release Bracket, the Base
Extrusion should slide between the Quick Release
Bracket and the Clipped Washers. Hold the Clipped
Washers up on the Hex Head Bolt, so the Clipped
Washer will sit on top of the
Base Extrusion.
r. If installing directly to the boat deck, the Base
Extrusion should slide between the Clipped Washer
and the Rubber Washer. Hold the Clipped Washers
up on the Long Bolt, so the Clipped Washer will sit
on top of the Base Extrusion.
Base Extrusion
Power Tilt
Boat Deck
Clipped
Washer
Rubber Washer
Boat Deck
Long Bolts
Clipped
Washer
Rubber
Washer
Flat Washer
Nylock Nut
Power
Tilt
NOTICE: The Short Bolts are not used when
installing the Riptide Ulterra directly to the boat.
Power Tilt
Base
Extrusion
Quick Release Bracket
Clipped
Washer
10
10o
11
11q
11r
