10 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.

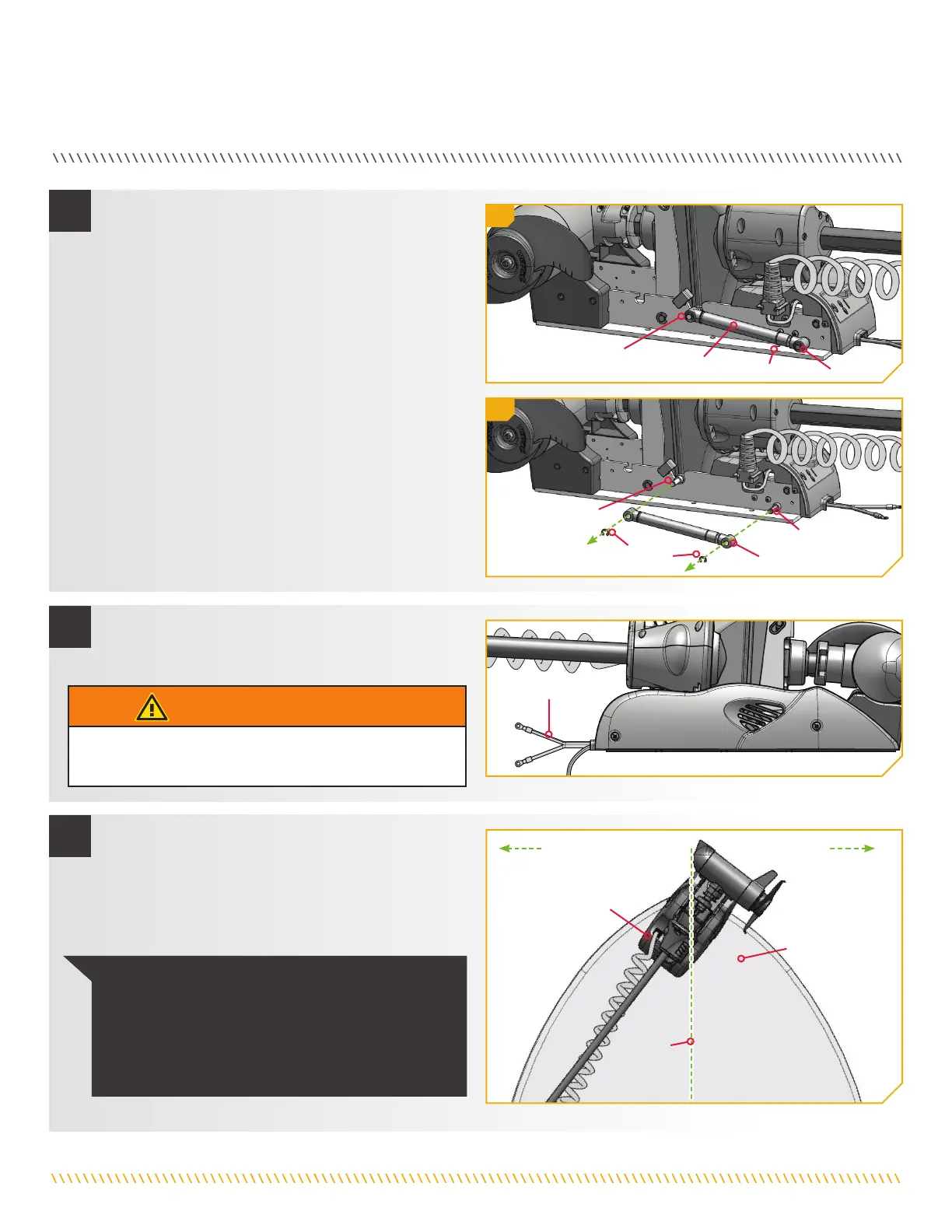

INSTALLING THE ULTERRA
E-clipsE-clips
Extension DamperExtension Damper
Damper PinDamper Pin
Damper PinDamper Pin
Extension Extension
DamperDamper
E-clipE-clip
E-clipE-clipMounting HoleMounting Hole
Power CablesPower Cables
Deck of BoatDeck of Boat
StarboardStarboard
PortPort
MountMount
3
3e
3f
4
5
WARNING
Make sure the motor is mounted on a level surface and is not
connected to a power source.
NOTICE: The Emergency Strap (Item #9) is used for
manually stowing the Ulterra. The Emergency Strap is not
secured during installation. Store it on your boat in the
event that you would need to manually stow the motor.
To learn how, please refer to the "Manually Stowing the
Ulterra" section of this manual.
e. Under the Left Sideplate, the Extension Damper
obstructs access to the front-left Mounting Hole.
f. Using a small Screwdriver, remove the two 5/16"
E-clips holding the Extension Damper in place. Once
the E-clips are removed, slide the Extension Damper
o the Damper Pins to expose the front-left Mounting
Hole. Set the two E-clips and Extension Damper in a
safe place so that they are not misplaced. They will
be reassembled later in the installation.
g. Make sure the Power Cables from the battery
are disconnected or that the breaker, if equipped,
is “o.”
h. Place the motor on the bow of the boat. Place the
motor as close to the centerline or keel of the boat
as possible. The motor can be installed on either the
Port or Starboard side of the boat based on personal
preference. Review the mounting considerations at
the beginning of the installation section.
KeelKeel
