8 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
INsTALLATION
p Not shown on Parts Diagram.
✖ This part is included in an assembly and cannot be ordered individually.
INSTALLING THE ULTERRA
Your new Ulterra comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted to the boat or it
may be coupled with a Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick release bracket,
refer to the installation instructions provided with the bracket. For more information on compatible quick release mounting brackets,
please visit minnkota.johnsonoutdoors.com. To install the motor directly to the boat, please follow the instructions provided in this
manual. Please review the parts list, mounting considerations and tools needed for installation prior to getting started. For additional
product support and to locate your nearest dealer, please visit minnkota.johnsonoutdoors.com.
1010
2121
1515
1616
1414
1212
66
77
88
1818
1919
1717
2020
11
99
2222
1313
44
55
33
1111
BB
EE
CC
DD
AA
22

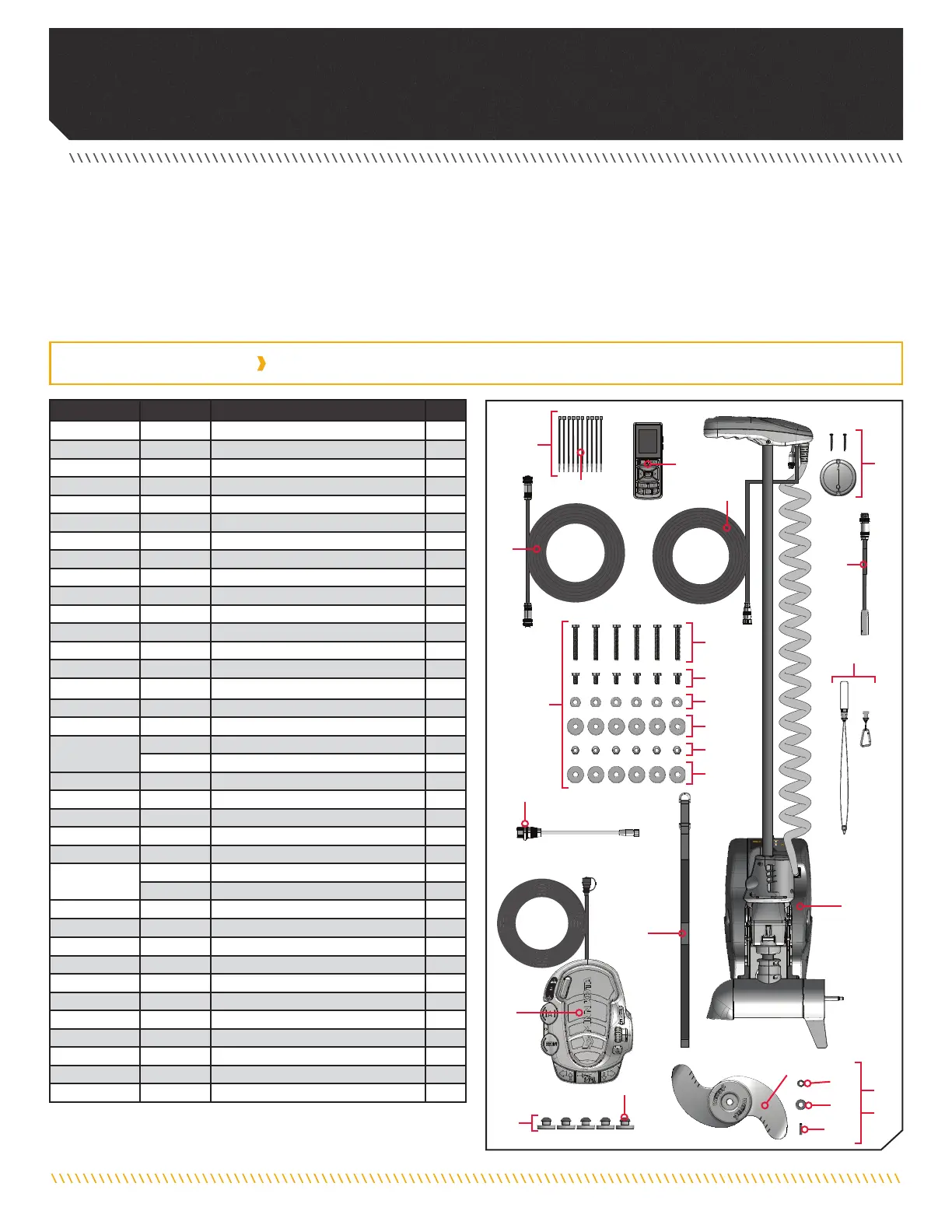

Item /Assembly Part # Description Qty.
1
✖
MOTOR ASSEMBLY 1
A (Includes 2) 2994859 BAG ASY-TERROVA/V2,RUB.BUMPERS 1
2 2325110 PAD,FOOT PEDAL PD 5
B (Includes 3-8) 2994917 BAG ASSY, ULTERRA MTG HARDWARE 1
3 2203430
SCREW-1/4-20 X 2.0 HHCS SS
6
4 2203431 SCREW-1/4-20 X 0.5 HHCS SS *FOR QRB* 6
5 2201725 WASHER-CLIPPED, 1/4", 1.00" OD 6
6 2261713 WASHER-1/4 FLAT 18-8 SS 6
7 2263103 NUT-1/4-20 NYLOCK SS 6
8 2301720 WASHER-MOUNTING - RUBBER 6
9 2203801 STRAP, HOLD DOWN, ULTERRA 1
10 411690-1 TROLLING MOTOR REMOTE 1
11 2390802 LANYARD w/CARABINR,IP RMT 1
12 490380-1 CABLE, ETHERNET PIGTAIL-700 HD 1
13 2994743 FT PEDAL ASM ULTERRA 1.5 1
14 2996400 HEADING SENSOR ASSEMBLY 1
15 490384-4 CABLE, ETHERNET (M12-M12), 30' 1
16
490575-3 CABLE, ADPTR, 14 PIN, 110"-DSC *DSC* 1
490507-1 CABLE, ADP-INT MDI 14 M12-120" *MDI* 1
C (Includes 17-20) 1378132 PROP IND 2331160 WDLS WDG II *80LB THRUST* 1
D (Includes 17-20) 1378160 PROP KIT 2341160 112# WW2 *112LB THRUST* 1
17 2262658 PIN-DRIVE 1" X 3/16" S/S 1
18 2091701 WASHER-PROP (LARGE) MAX101 1
19 2093101 NUT-PROP,NYLOC,LG,MX101 3/8 SS 1
20
2331161 PROP-WW2 4" WELDED *80LB THRUST* 1
2341161 PROP-WW2 4.5" WELDED *112LB THRUST* 1
E (Includes 21) 2996300 BAG ASM, TIE WRAPS, LOW PRO 4" 1
21 2206300 TIE,WRAP, LOW PROFILE 4" 10
22 2994961 BAG ASM, CABLE,ADPTR, 490537-2 *MKR-MI-1* 1
p
2207121 MANUAL, ULTERRA 1.5 1
p
2207122 MANUAL,INSTL GUIDE,ULT1.5 1
p
2207123 QUICK. REF. GUIDE, ULT1.5 1
p
2397110 MANUAL, iPILOT 4.0 1
p
2397115 GUIDE-QUICK REFERENCE iP 4.0 1
p
2394900 INSTRUCTIONS, HEADING SENSOR 1
p
2294950 INSTRUCTIONS,OBN & REMOTE PAIR 1
p
2207131 STANDARD QS SETUP GUIDE 1
INSTALLATION PARTS LIST
