minnkota.johnsonoutdoors.com | 39 ©2023 Johnson Outdoors Marine Electronics, Inc.
UsINg & ADjUsTINg ThE MOTOR
Power Button
The Ulterra must be powered “on” and “o” manually. The wireless
remote will not turn the motor “on” or “o.” The Power button
is located on the base of the motor on the Indicator Panel. Press
the Power button to turn the motor “on.” When the motor is in the stowed position, the Status Indicator will be illuminated red and the
System Ready Indicator will be illuminated green when powered “on.” To power the motor “o,” press and hold the Power button
for approximately three seconds until the green light turns o. Ulterra has an auto-shuto as well. It will automatically power o after 1.5
hours of inactivity in the stowed position.
ULTERRA

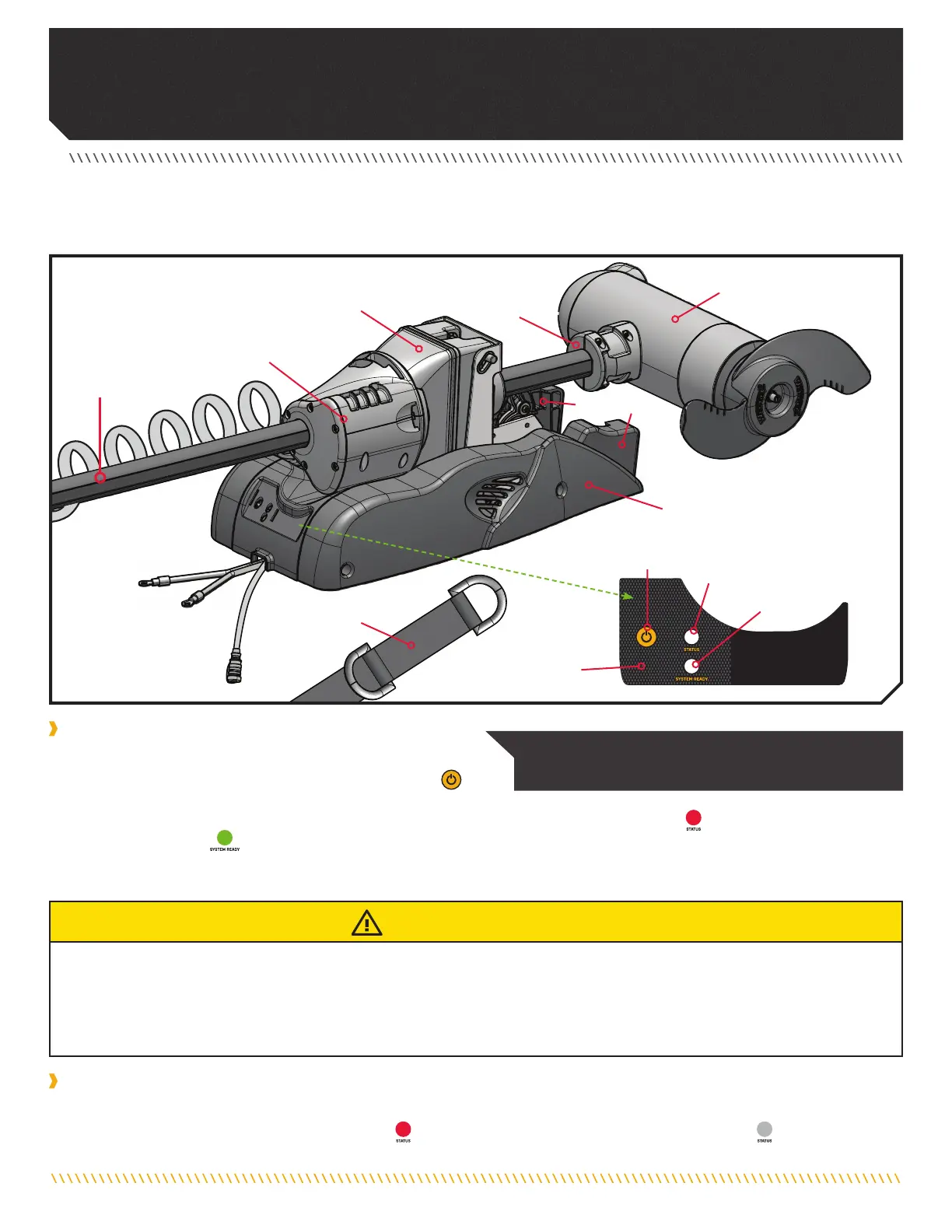

MOUNT FEATURES
Become familiar with the features of the motor to maximize the capabilities this product oers.
Trim HousingTrim Housing
Steering Steering
HousingHousing
Lower UnitLower Unit
Belt Belt
CollarCollar
Motor MountMotor Mount
Motor RampsMotor Ramps
ShaftShaft
Indicator PanelIndicator Panel
Emergency Emergency
StrapStrap
Status Status
IndicatorIndicator
Power ButtonPower Button
System System
Ready Ready
IndicatorIndicator
NOTICE: Remember to turn the power o when the motor
is not in use to prevent the motor from draining the battery.
CAUTION
Make sure that the Power button is turned o when the motor is not in use. If the motor control is left on and the propeller rotation is
blocked, severe motor damage can result.
For safety reasons, disconnect the motor from the battery/batteries when the motor is not in use or while the battery/batteries are
being charged.
Status Indicator
The Status Indicator is located on the Indicator Panel on the base of the motor. It works while the motor is powered "on." The LED
associated with the Status Indicator will be illuminated red when the motor is stowed and will not be illuminated when the motor is
deployed. When the motor is being either stowed or deployed, the red LED will be flashing.
