MINN KOTA ULTERRA User Manual

12 | minnkota.johnsonoutdoors.com ©2023 Johnson Outdoors Marine Electronics, Inc.

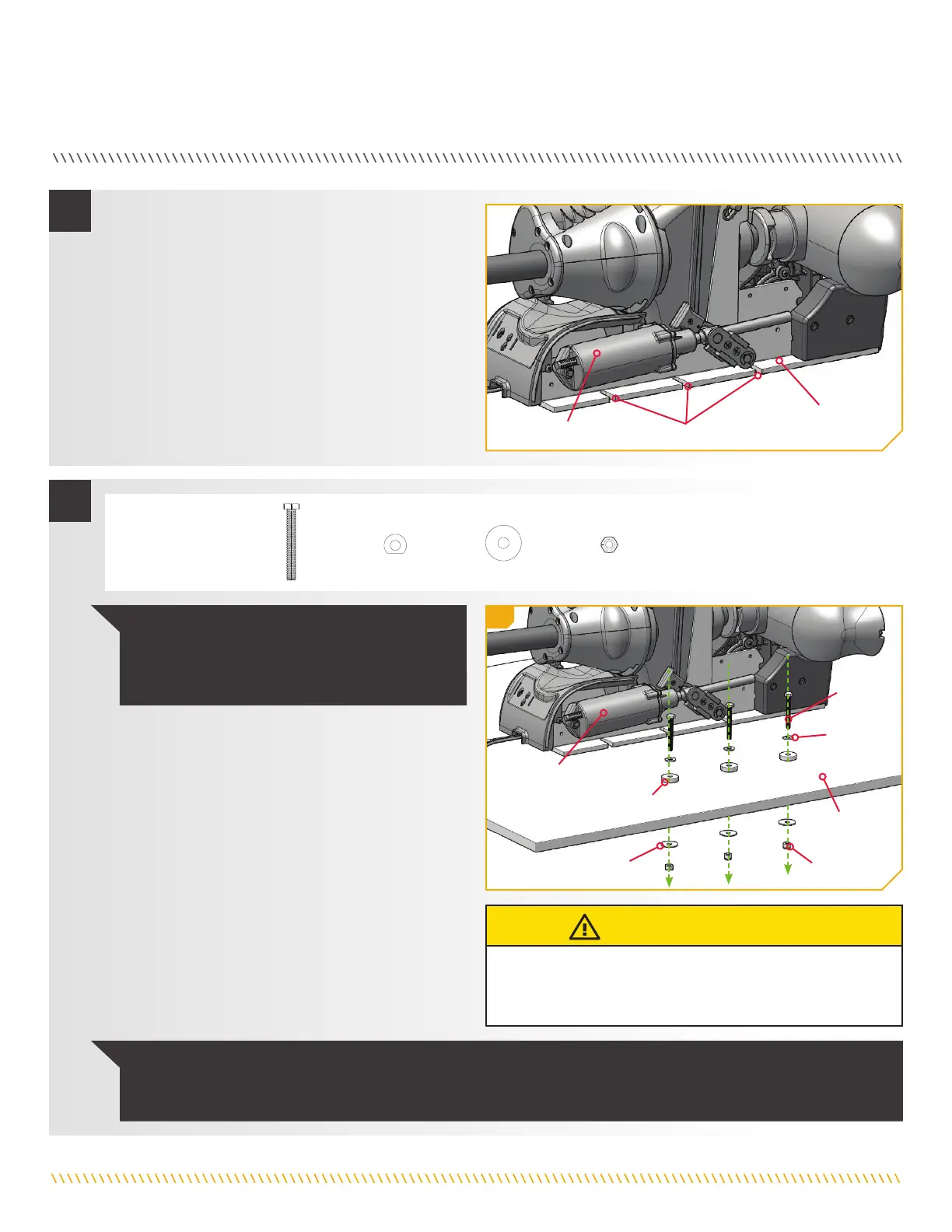

INSTALLING THE ULTERRA
NOTICE: To prevent seizing of the stainless steel
hardware, do not use high-speed installation tools.
Wetting the screws or applying an anti-seize may
help prevent seizing.
NOTICE: The Short Bolts (Item #4) are only used when installing the Ulterra to a quick release bracket. If installing the
Ulterra to a quick release bracket, please refer to the instructions that came with the bracket for more information. Quick
release bracket installation instructions can also be viewed online at minnkota.johnsonoutdoors.com.
Power TiltPower Tilt
Base Base
ExtrusionExtrusion
Mounting SlotsMounting Slots
#5 x 3 #6 x 3
ITEM(S) NEEDED
8
9
CAUTION
Use extra care to avoid pinching and damaging the sensor wires
that run along the side of the Base Extrusion when installing
and tightening the motor mounting bolts.
#3 x 3 #7 x 3
Boat DeckBoat Deck
Long Long
BoltsBolts
Clipped Clipped
WasherWasher
Rubber WasherRubber Washer
Flat WasherFlat Washer
Nylock NutNylock Nut
Power Tilt Power Tilt
m. Mount the motor to the boat using the provided
hardware. Start with the side of the Motor where
the Power Tilt is located. This is the opposite side
of the Base Extrusion from where the Extension
Damper was removed. The base of the Motor where
the Power Tilt is located has Mounting Slots and
the side where the Extension Damper is located has
Mounting Holes.
n. Install the motor using three each of the Long Bolts
(Item #3), Clipped Washers (Item #5), Rubber
Washers (if needed), Flat Washers (Item #6) and
Nylock Nuts (Item #7). Position the Clipped Washers
so that the flat side of the washer faces towards the
Base Extrusion. The Bolt should pass through the
Clipped Washer, the Rubber Washer (if needed)
and then the Boat Deck. The Bolt should be secured
by first adding the Flat Washer to the Bolt and
securing with a Nylock Nut. Tighten with a 7/16"
Box End Wrench. Leave at least 1/4" space between
the Bolt and Clipped Washer and the deck of the
boat. This will leave enough space to slide the Base
Extrusion between the Clipped Washer and Rubber
Washer and into place.
9n

MINN KOTA ULTERRA Specifications

General

i-Pilot	Yes
Bluetooth	Yes
GPS	Yes
Power Trim	Yes
Speed	Variable
Blade Material	Composite
Remote Control	Yes
Spot-Lock	Yes
Shaft Length	45 in, 52 in, 60 in
Voltage	36V
i-Pilot Link	Yes
Steering	Electric
Thrust	80 lbs
