DUAL SPECTRUM CHIRP
Fourteen Pin Fourteen Pin
ConnectorConnector
All Dual Spectrum CHIRP Ultrex motors are equipped with an internal bonding wire. Incorrect rigging will cause sonar interference and can
damage your trolling motor, electronics, and other boat accessories. To minimize trolling motor interference, ensure that the fish finder and
trolling motor are powered by separate batteries. Please refer to the "Battery & Wiring Installation" and "Motor Wiring Diagram" sections of
this manual for correct rigging instructions.
The Dual Spectrum CHIRP cables are shielded to minimize interference. To protect this shielding, the cables should not be pulled tight
against sharp angles or hard objects. If using cable ties, do not over-tighten. Any excess cable should be bundled in a loose loop of no
less than 4” in diameter. The connection cable should be routed to the fish finder following Minn Kota recommendations on routing the
cables to optimize mobility and maximize functionality. Follow the instructions below for completing all connections and then follow the
instructions for "Securing Connection Cables" to complete the output cable installation.
NOTICE: Your fish finder should be turned o
until this procedure is complete.

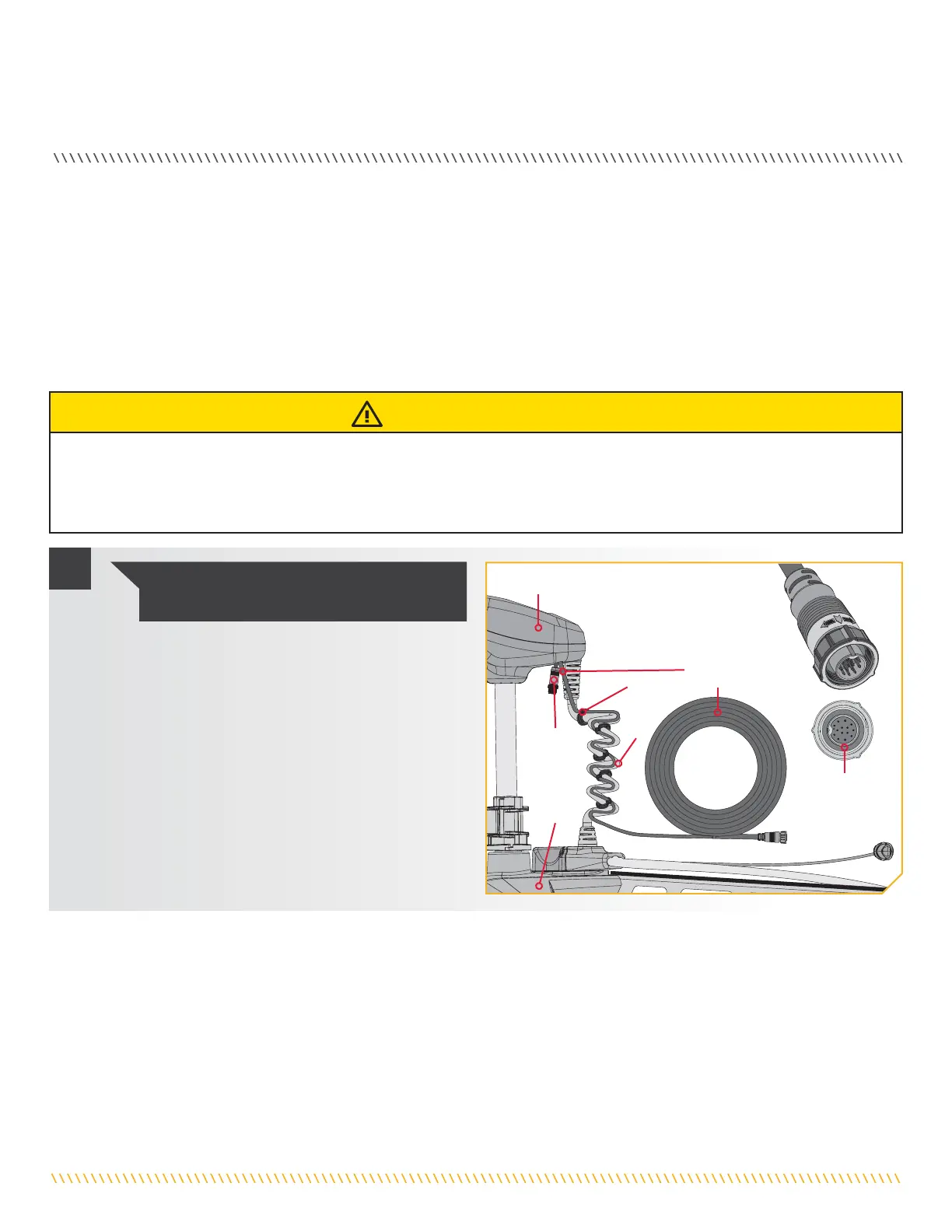

a. Place the motor in the deployed position.
b. Locate the Fourteen Pin Connector on the end of the
Dual Spectrum CHIRP accessory cable. The cable
will come installed from the factory secured to the
Coil Cord with Clips.
c. Determine if the Plug on the end of the Dual
Spectrum CHIRP accessory cable will be attached
directly to:
1) a Humminbird® Solix or Apex fish finder,
2) a Dual Spectrum CHIRP Extension Cable,
3) a Helix Adapter Cable or a compatible fish
finder adapter cable.
1
CAUTION
Failure to follow the recommended wire routing for installed features, if equipped, may cause damage to the product and void your
product warranty. Route cables away from pinch points or other areas that may cause them to bend in sharp angles. Routing the cables
in any way other than directed may cause damage to the cables by being pinched or severed. Do not over-tighten cable ties as it may
damage the wires.
Control HeadControl Head
Coil Coil
CordCord
ClipClip
MountMount
Dual Dual
Spectrum Spectrum
CHIRPCHIRP
Advanced Advanced
GPS GPS
Ethernet Ethernet
ConnectorConnector
To Next Page
