minnkotamotors.com | 29 ©2023 Johnson Outdoors Marine Electronics, Inc.
DUAL SPECTRUM CHIRP
Fourteen Pin Fourteen Pin
ConnectorConnector

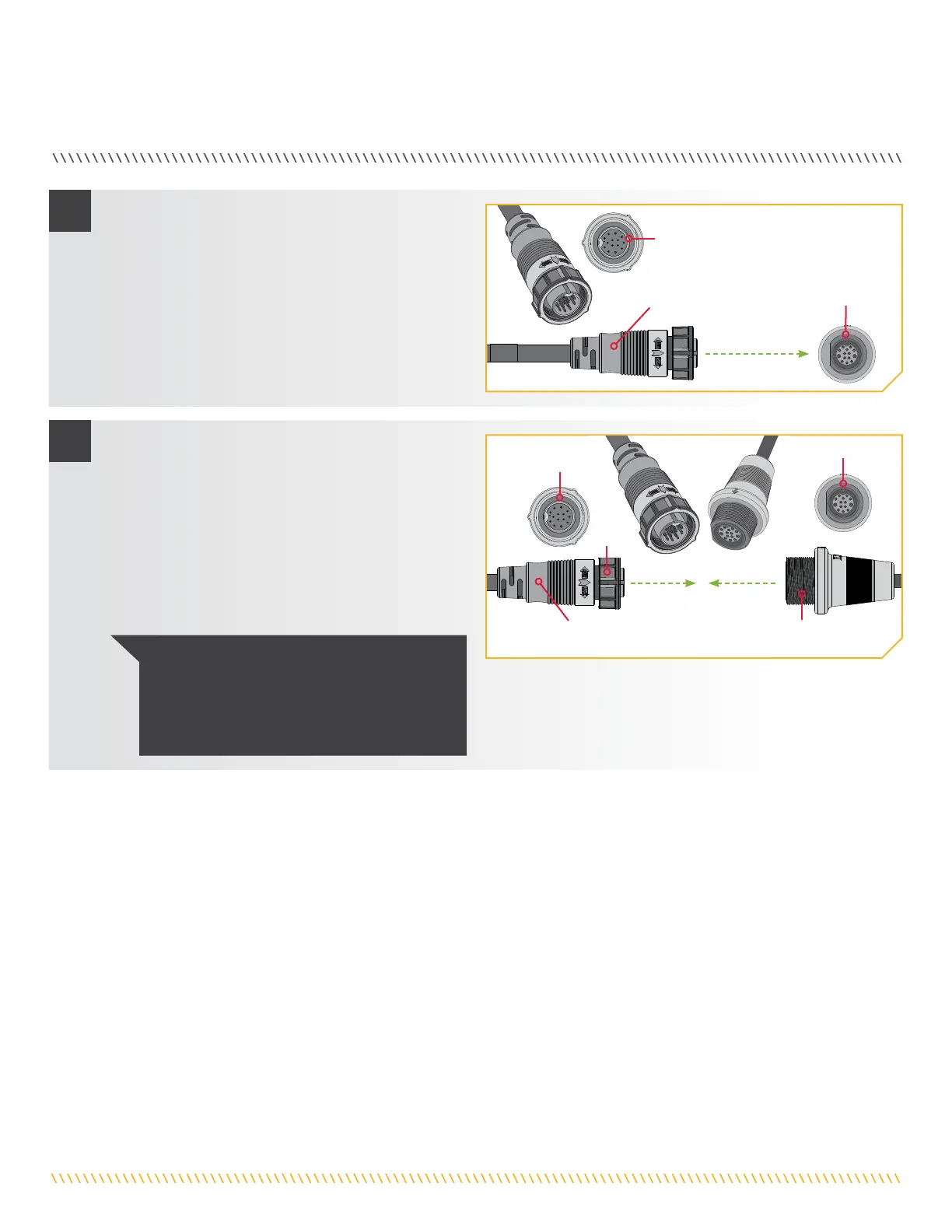

d. If installing directly to a Solix or Apex, the connection
will be flat on the back of the fish finder display.
e. Align the pins on the Accessory Cable with the
receptacle on the fish finder. Notice the keyed
connectors. Tighten the Collar from the accessory
cable to secure the connection. Once directly
installed to the Solix or Apex, the connection
is complete.
2
Dual Spectrum CHIRP Dual Spectrum CHIRP
Accessory Cable from Accessory Cable from
Trolling MotorTrolling Motor
Solix or Apex Solix or Apex
Fish FinderFish Finder
NOTICE: A 10-foot extension cable (EC M3
14W10 - 10' transducer extension cable -
720106 -1
) and a 30-foot extension cable
(
EC M3 14W30 - 30' transducer extension cable -
720106-2
) are available from humminbird.com.
f. If installing directly to a Dual Spectrum CHIRP
Extension Cable, align the pins on the accessory
cable with the receptacle on the extension cable.
Notice the keyed connectors. Tighten the Collar
from the accessory cable to secure the connection.
g. If the Dual Spectrum CHIRP extension cable will be
attached directly to a Humminbird® Solix or Apex,
the connection will look exactly like the installation
directly into a Humminbird Solix or Apex fish finder.
3
Dual Spectrum CHIRP Accessory Dual Spectrum CHIRP Accessory
Cable from Trolling MotorCable from Trolling Motor
Dual Spectrum CHIRP Dual Spectrum CHIRP
Extension CableExtension Cable
Fourteen Pin Fourteen Pin
ConnectorConnector
ReceptacleReceptacle
CollarCollar
