MINN KOTA ULTREX Installation Instructions

32 | minnkotamotors.com ©2023 Johnson Outdoors Marine Electronics, Inc.
BUILT-IN MEGA DOWN IMAGING
CAUTION
Failure to follow the recommended wire routing for installed features, if equipped, may cause damage to the product and void your
product warranty. Route cables away from pinch points or other areas that may cause them to bend in sharp angles. Routing the cables
in any way other than directed may cause damage to the cables by being pinched or severed. Do not over-tighten cable ties as it may
damage the wires.
NOTICE: You can only view Down Imaging with a MEGA DI or MEGA SI HELIX G2N, G3N or G4N Series model and a required
adapter, or with any SOLIX or APEX Series model. The built-in transducer cannot supply MEGA Imaging to Humminbird models that
do not already have the capability. If you have a G2/G2N, G3/G3N or G4/G4N HELIX that is not a MEGA SI or MEGA DI model, you
will still get 2D Dual Spectrum CHIRP Sonar from the transducer. SOLIX G1 and HELIX G2 and G2N units need to be running the
latest software update to view sonar from motors with Built-In MEGA Imaging. You can get the latest version of software for your fish
finder on
humminbird.com. Built-In MEGA Imaging is not supported by HELIX G1 models or other brands of fish finders.
Fourteen Pin Fourteen Pin
ConnectorConnector
NOTICE: Your fish finder should be turned o
until this procedure is complete.

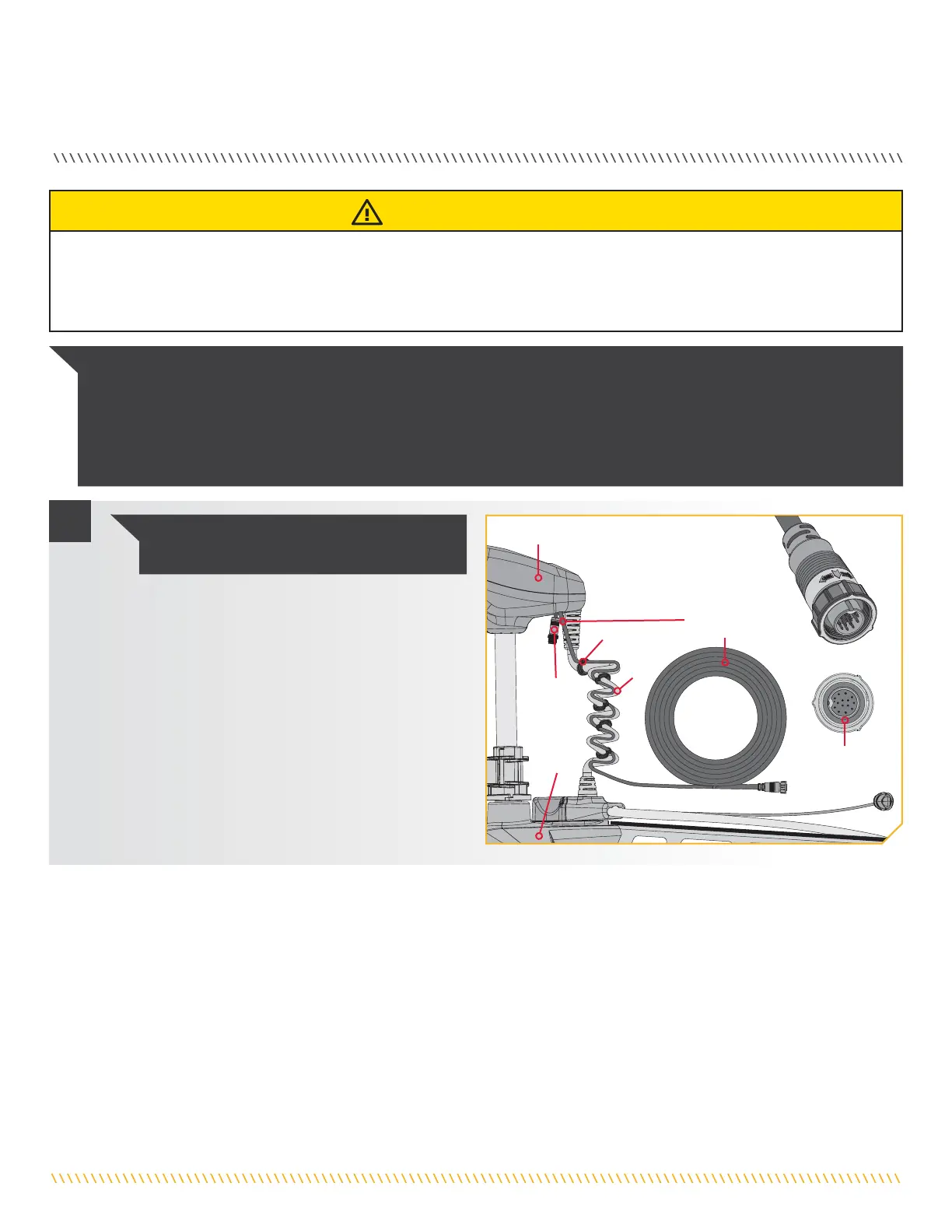

a. Place the motor in the deployed position.
b. Locate the Fourteen Pin Connector on the end of the
Built-in MEGA Down Imaging accessory cable. The
cable will come installed from the factory secured to
the Coil Cord with Clips.
c. Determine if the Plug on the end of the Built-in
MEGA Down Imaging Cable accessory cable will be
attached directly to:
1) a Humminbird® Solix or Apex fish finder,
2) a Built-in MEGA Down Imaging Extension Cable,
3) a Helix Adapter Cable or a compatible fish finder
adapter cable.
1
Control HeadControl Head
Coil Coil
CordCord
ClipClip
MountMount
Built-in MEGA Built-in MEGA
Down ImagingDown Imaging
Advanced Advanced
GPS GPS
Ethernet Ethernet
ConnectorConnector

MINN KOTA ULTREX Specifications

General

Thrust	80 lbs, 112 lbs
Voltage	24V, 36V
Steering	Electric Steer
Speed Control	Variable
i-Pilot Link GPS	Yes (Optional)
Lift Assist	Yes
Blade Material	Composite
Shaft Length	45", 52", 60"
Control	Foot Pedal
Integrated Sonar	MEGA Down Imaging, Universal Sonar 2
Battery Requirement	24V or 36V Deep Cycle Marine Battery
Weight	Varies by model
Deployment	Manual
Warranty	2 years
