minnkotamotors.com | 33 ©2023 Johnson Outdoors Marine Electronics, Inc.

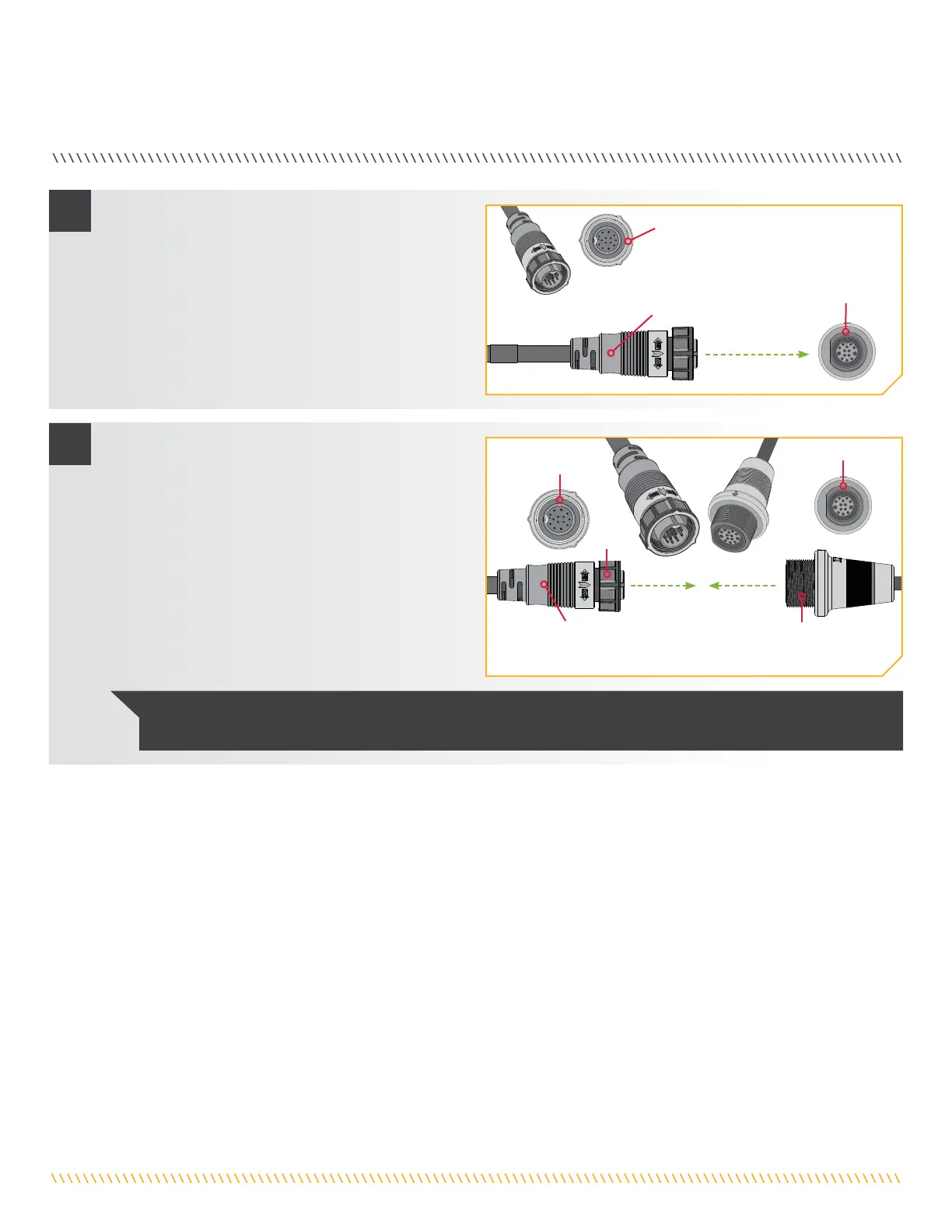

BUILT-IN MEGA DOWN IMAGING
Fourteen Pin ConnectorFourteen Pin Connector
2
Built-in MEGA Down Built-in MEGA Down
Imaging Accessory Cable Imaging Accessory Cable
from Trolling Motorfrom Trolling Motor
Solix or Apex Solix or Apex
Fish FinderFish Finder
d. If installing directly to a Solix or Apex, the
connection will be flat on the back of the fish
finder display.
e. Align the pins on the Accessory Cable with the
receptacle on the fish finder. Notice the keyed
connections. Tighten the Collar from the accessory
cable to secure the connection. Once directly
installed to the Solix or Apex, the connection
is complete.
NOTICE: A 10-foot extension cable (EC M3 14W10 - 10' transducer extension cable - 720106-1) and a 30-foot extension
cable (
EC M3 14W30 - 30' transducer extension cable - 720106-2) are available from humminbird.com.
f. If installing directly to a Built-in MEGA Down
Imaging Extension Cable, align the pins on the
accessory cable with the receptacle on the
extension cable. Notice the keyed connectors.
Tighten the Collar from the accessory cable to
secure the connection.
g. If the Built-in MEGA Down Imaging Cable Extension
Cable will be attached directly to a Humminbird®
Solix or Apex, the connection will look exactly like
the installation directly into a Humminbird Solix or
Apex fish finder.
3
Built-in MEGA Down Built-in MEGA Down
Imaging Accessory Cable Imaging Accessory Cable
from Trolling Motorfrom Trolling Motor
Built-in MEGA Down Built-in MEGA Down
Imaging Extension CableImaging Extension Cable
Fourteen Pin Fourteen Pin
ConnectorConnector
ReceptacleReceptacle
CollarCollar
To Next Page
