Minster IOI - Page 76

H - 7
OBI #6 Geared

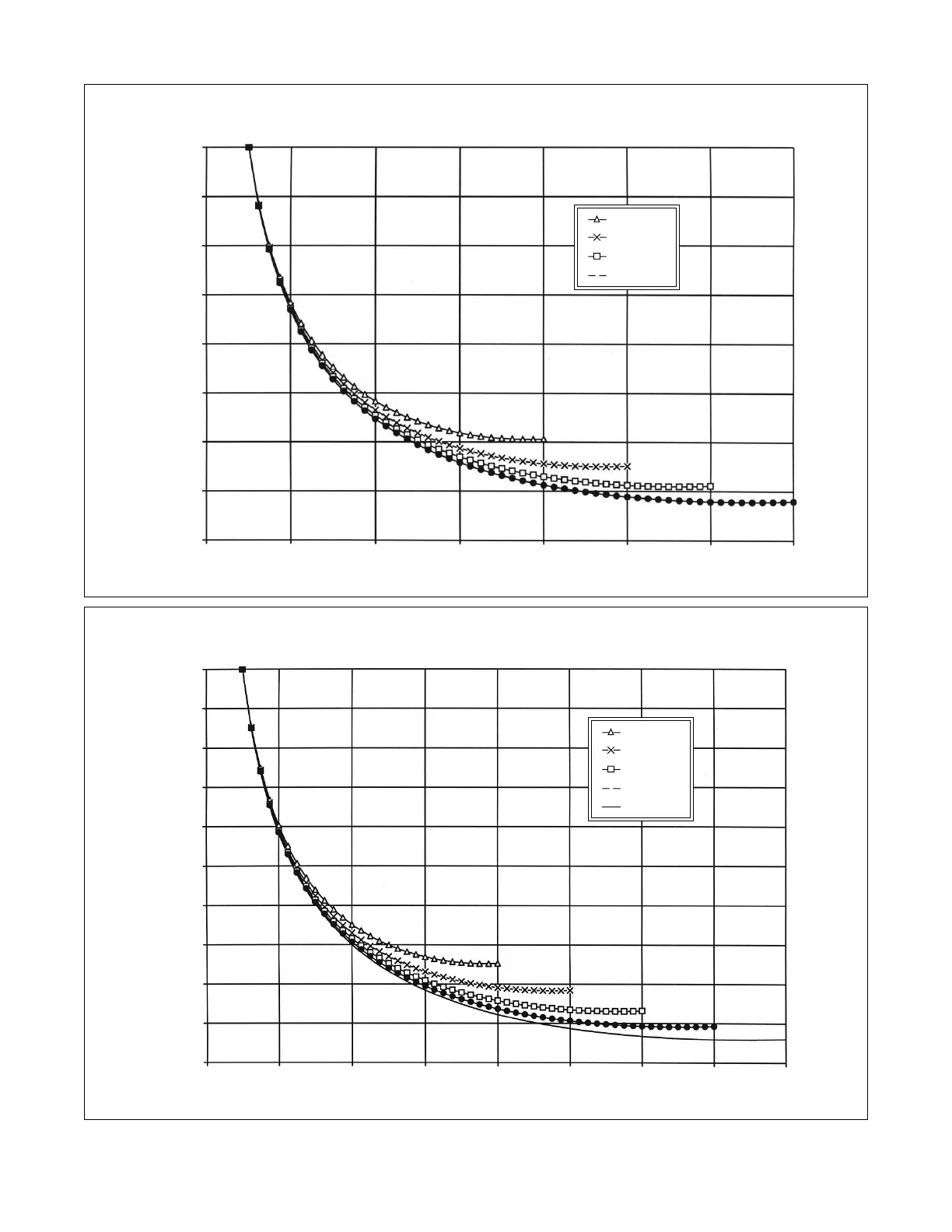

Distance off Bottom vs. Tonnage Available
Distance off Bottom (inches)
Tonnage Available (U.S. Tons)
0.00
60
55
50
45
40
35
30
25
20
0.50 1.00 1.50 2.00 2.50 3.00 3.50
•
4” Stroke
5” Stroke
6” Stroke
7” Stroke
OBI #7 Geared
Distance off Bottom vs. Tonnage Available
Distance off Bottom (inches)
Tonnage Available (U.S. Tons)
0.00
75
70
65
60
55
50
45
40
35
30
25
0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00
•
4” Stroke
5” Stroke
6” Stroke
7” Stroke
8” Stroke
