3.2 Control Panel & Operation Indicators
3.2.1 Operating Panel
1 Display
2 Key Switch
3 Battery Charge Indicator
4 LDS Indicator
5 Symbol for Brush Drive
6 Symbol for Vacuum Motor
7 Hour Meter
8 Symbol for Service Indicator
9 Drive Direction Control (9a) with speed
control knob (9b)and bail handle (9c)

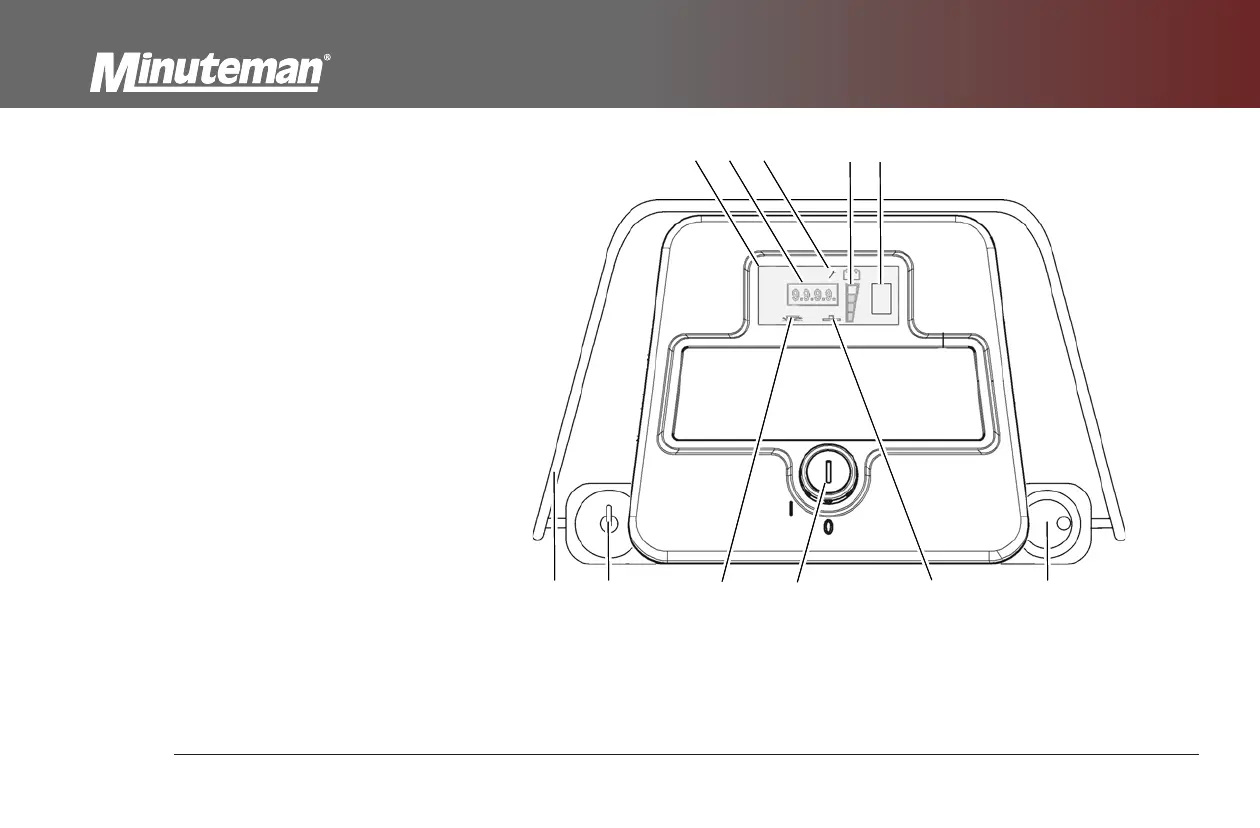

Fig.4
5
18 43
26
7
9a9c
9b
