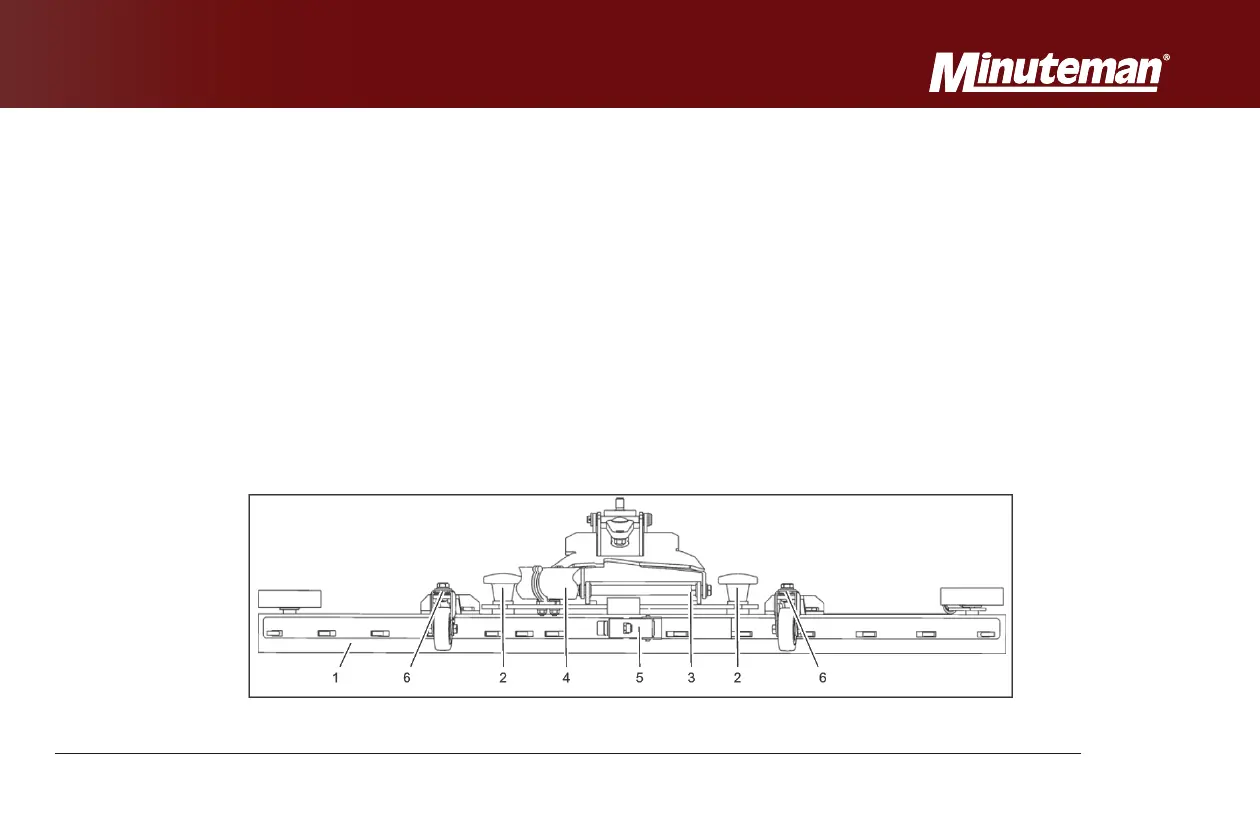

5.8 Squeegee
1 Squeegee
2 Star-shaped knob
3 Adjusting screw for angle adjustment
4 Suction hose
5 Fastening device
6 Washers for height adjustment
5.8.1 Cleaning the Squeegee
Check the squeegee (Fig. 11/1) daily
and clean as necessary.
To clean it lift the squeegee out, pull
off the suction hose (Fig. 11/4), loosen
the two star-shaped knobs (Fig. 11/2)
and remove the squeegee.
5.8.2 Changing the Squeegee Blades
Check the inner and outer squeegee
blades on the squeegee (Fig. 11/1) weekly
for signs of wear. The squeegee blades can
be re-used by turning them.
1. Lift the squeegee out.
2. Pull off the suction hose, loosen the
two star-shaped knobs and remove
the squeegee.
3. Unlock the fastening device (Fig. 11/5)
and remove the outer squeegee blade.
Turn the squeegee blade or install a
new one, as necessary. Change the
inner squeegee blade in the same way.
Fig. 11
