MIRAGE BD-35 Dual Band Amplifier
4

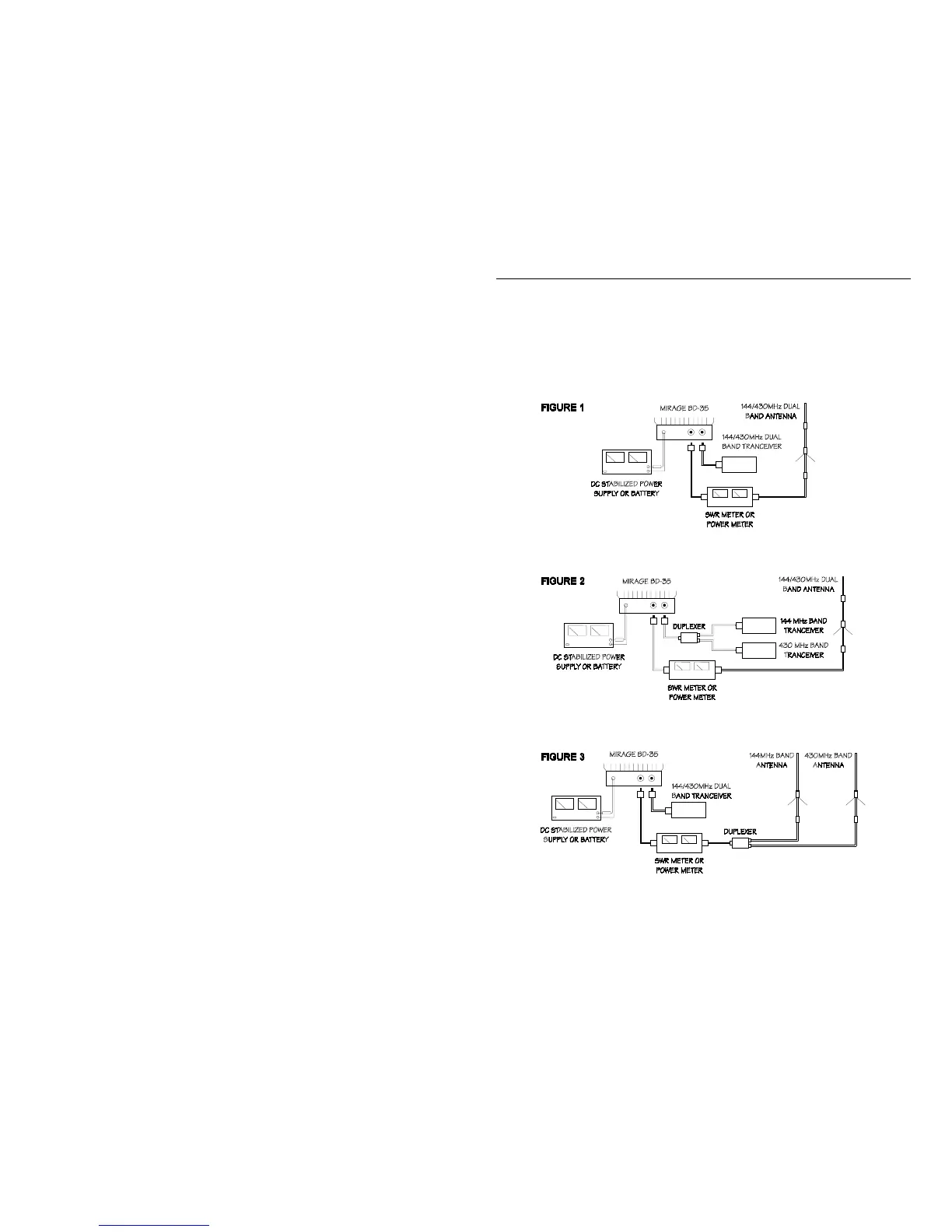

A typical connection of this amplifier with duplex type dual band tranceiver
and a dual band antenna is shown in
Figure 1
. If connection of this amplifier
is made with either two tranceivers or two antennas, please refer to
Figures
2
or
3
.
