System Components
8
Network Controller Modules
Adder Modules

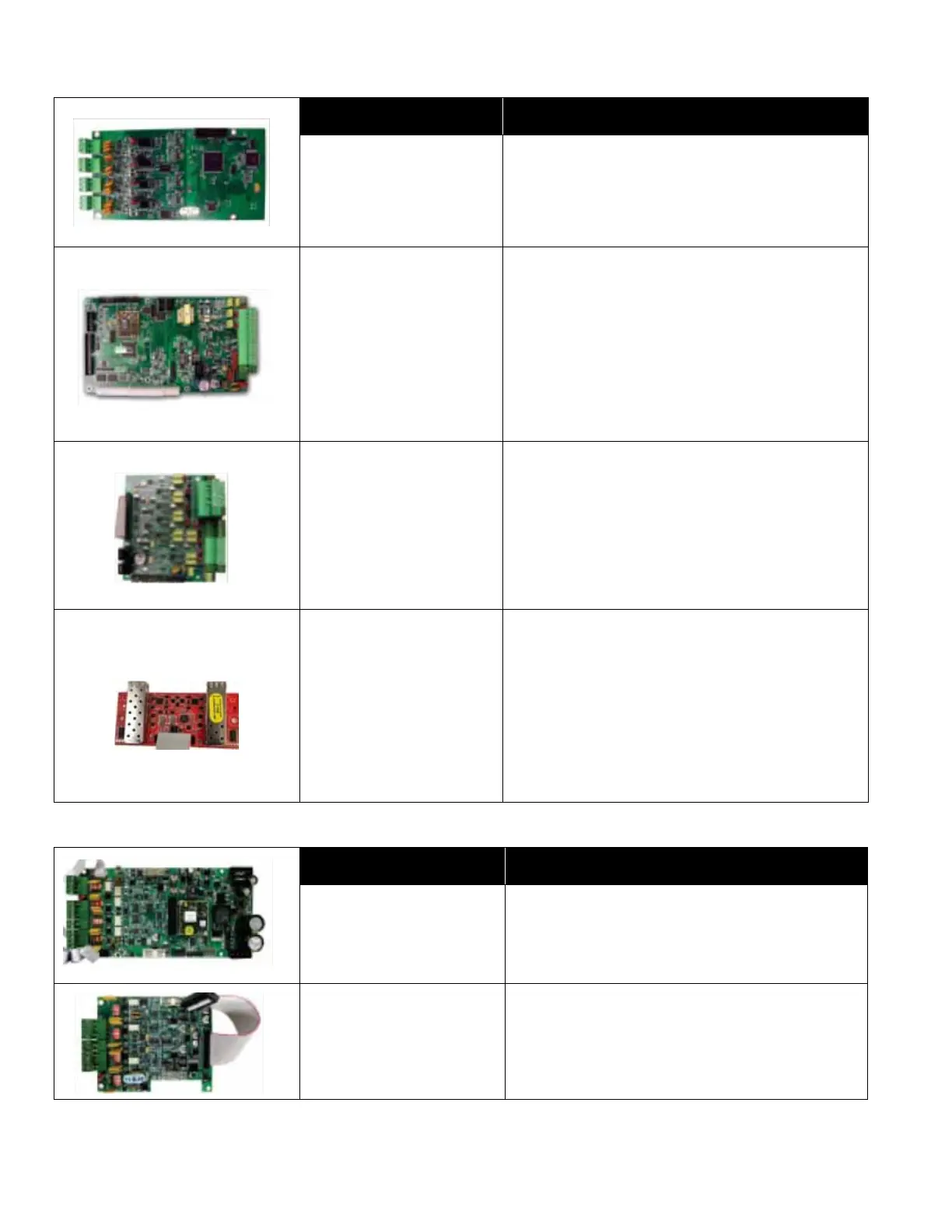

Model Description
FNC-2000
Provides network capability for the FX-2000N Fire
Alarm panel. One module is required per one
network node panel. The FNC-2000 Fire Network
Controller module is mounted in position 2 over
the FX-2000N main board.
ANC-5000
Audio Network Controller module. The ANC-5000
Audio Network Controller module is mounted over
a metal plate (which is packaged with the FX-
2009-12N) and then the plate is mounted in a BB-
5008 or BB-5014 backbox in positions marked 4 to
9 inclusive. The recommended plate mounting is
sideways with LEDs across the top.
TNC-5000
Telephone Network Controller module. The TNC-
5000 Telephone Network Controller module is
mounted over the ANC-5000 Audio Network
Controller module and both are mounted on a
metal plate and then the plate is mounted in a BB-
5008 or BB-5014 backbox in positions marked 4 to
9 inclusive. The recommended plate mounting is
sideways with LEDs across the top.
FOM-2000-UM
Fiber Optics Module (Optional)
Connects to the FNC-2000 Fire Alarm Network
Controller Module and allows fiber optics cabling.
Model Description
ALCN-792MISO Quad Loop Adder board.
ALCN-792D
Daughter board for ALCN-792MISO Quad Loop
Adder
