Mircom FleX-Net FX-2003-12NDS User Manual

110
TNC-5000 Telephone Network Controller Module
Module Mounting Locations
The TNC-5000 Telephone Network Controller board can be mounted in two ways. The TNC-5000 is mounted above
(beside) the ANC-5000 Audio Network board, both are mounted on a metal backplate and the ANC-5000 plugs into
slot 1 on the QMB-5000N audio backplane of the BBX-FXMNS, see Figure 74. The other position is over the ANC-
5000 Audio Network Controller module and both are mounted onto a metal plate and then the plate is mounted into
a BB-5008 or BB-5014 backbox in positions marked 4 to 9 inclusive, refer to drawing of large chassis, Figure 75

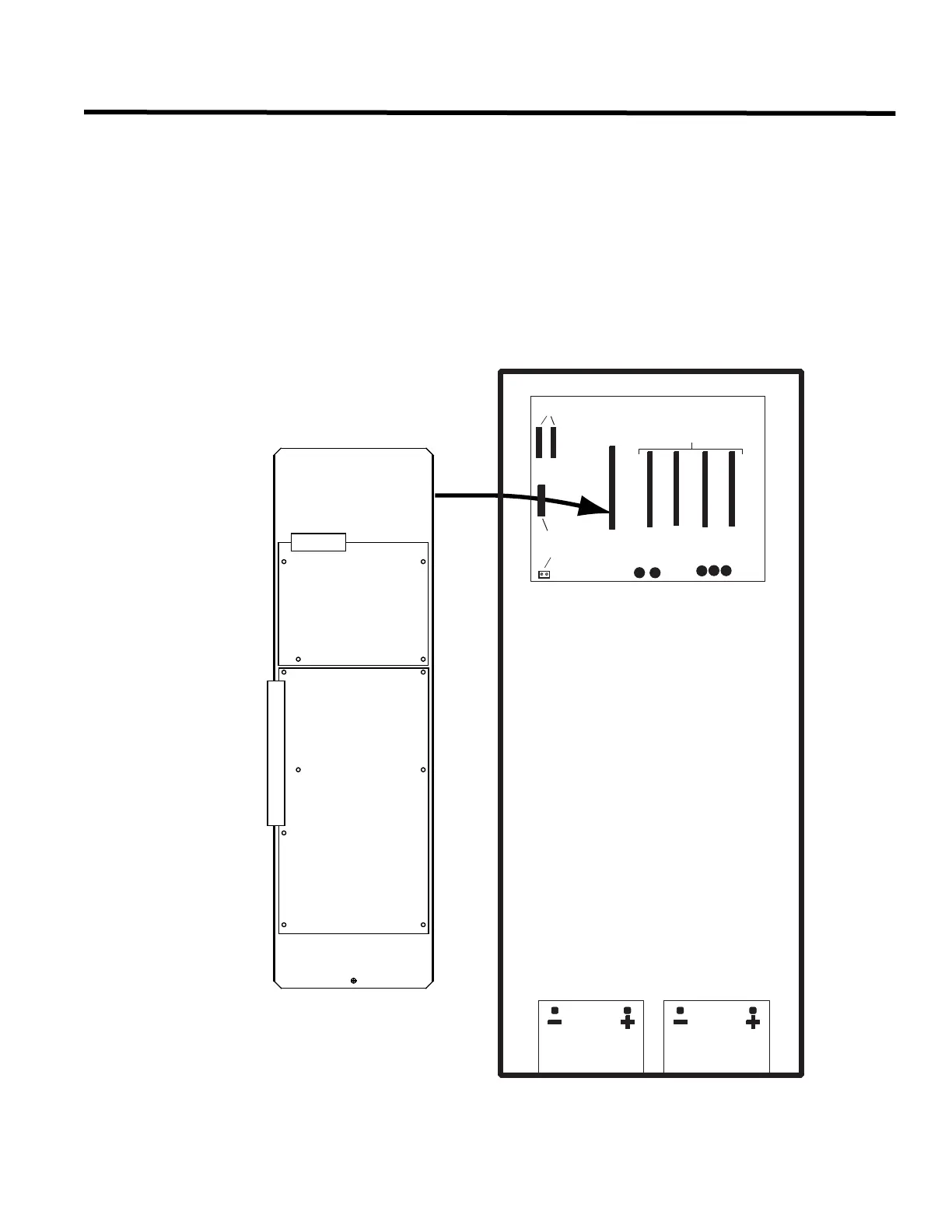

Figure 74: Mechanical I nstallation of the TNC-5000 Telephone Netw ork Controller
Board within the BBX-FXMNS
ANC-5000
TNC-5000
This connector
mounts into
connector in slot
#1 on the
QMB-5000N
Audio Backplane
12 VDC BATTERY
12 VDC BATTERY
BATTERY
TRANSFORMER
IN OUT
Red
CONNECTORS FOR MULTIPLE
QMB- 5000N EXPANSION CARD CAGES
SLOT #1 CONNECTOR
ANC-5000 BOARDS
FOR TNC-5000 AND
SLOTS #2 - #5
CONNECTORS FOR
QAA- STYLE AMPLIFIERS
CONNECTOR
AND TERMINALS
NOT USED
+
-
NOT TO SCALE, REPRESENTATION ONLY
BBX-FXMNS Backbox
QMB-5000N Audio Backplane
