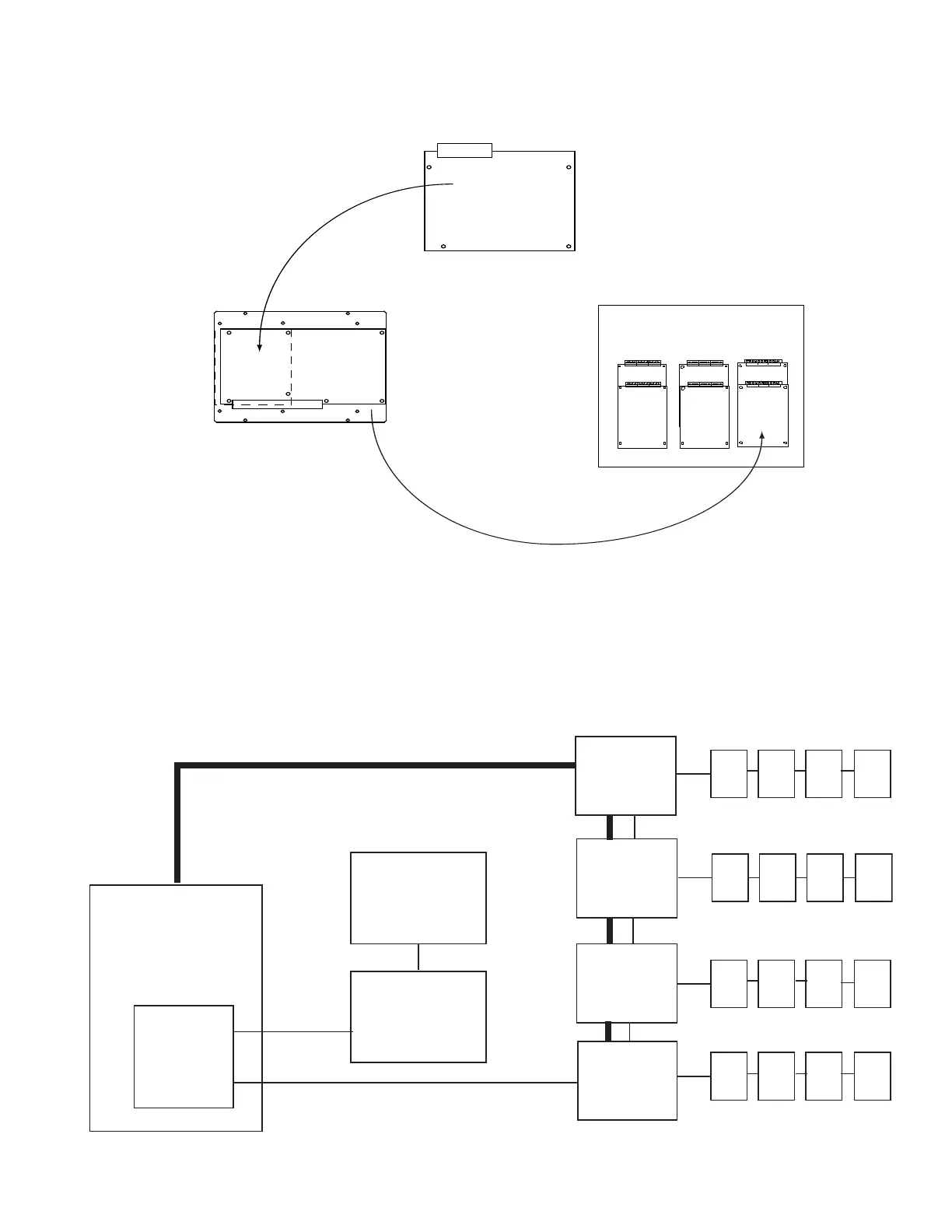

Figure 75: Mechanical I nstallation of the TNC-5000 within the BB-5008 and BB-
5014
Typical Addressable Telephone Set-up
The typical addressable telephone set-up is with an addressable fire alarm system using the TNC-5000 and from
the TNC-5000 to the Master Telephone (QMT-5302N/V). The selector panels (QAZT-5348DS or QAZT-5302DS)
are connected to the Master Telephone by cable only. The MIX-M500FP(A) Control Modules are connected to the
addressable loop from the FX-2000N and to each other and the Master Telephone. Remote telephones are
connected to the control modules.
Figure 76: Typical Addressable Telephone Set-up
ANC-5000
Partial Interior View
(to right of main board)
TNC-5000
5
6 4
8
9 7
Metal plate mounts
over positions 4 to 9
inclusive
TNC-5000 board
mounts over ANC-5000
board
TTTT
TTTT
TTTT
TTTT
Remote Telephones
Remote Telephones
Remote Telephones
Remote Telephones
MIX-M500FP(A)
CONTROL
MODULE
MIX-M500FP(A)
CONTROL
MODULE
MIX-M500FP(A)
CONTROL
MODULE
MIX-M500FP(A)
CONTROL
MODULE
QMT-5302NV/N
ADDRESSABLE
MASTER
TELEPHONE
TNC-5000
TELEPHONE
NETWORK
CONTROLLER
MODULE
QAZT-5348DS or
QAZT-5302DS
ADDRESSABLE
TELEPHONE
SELECTOR
FX-2000N
FIRE ALARM PANEL
Addressable Loop
