Paging Operation

108

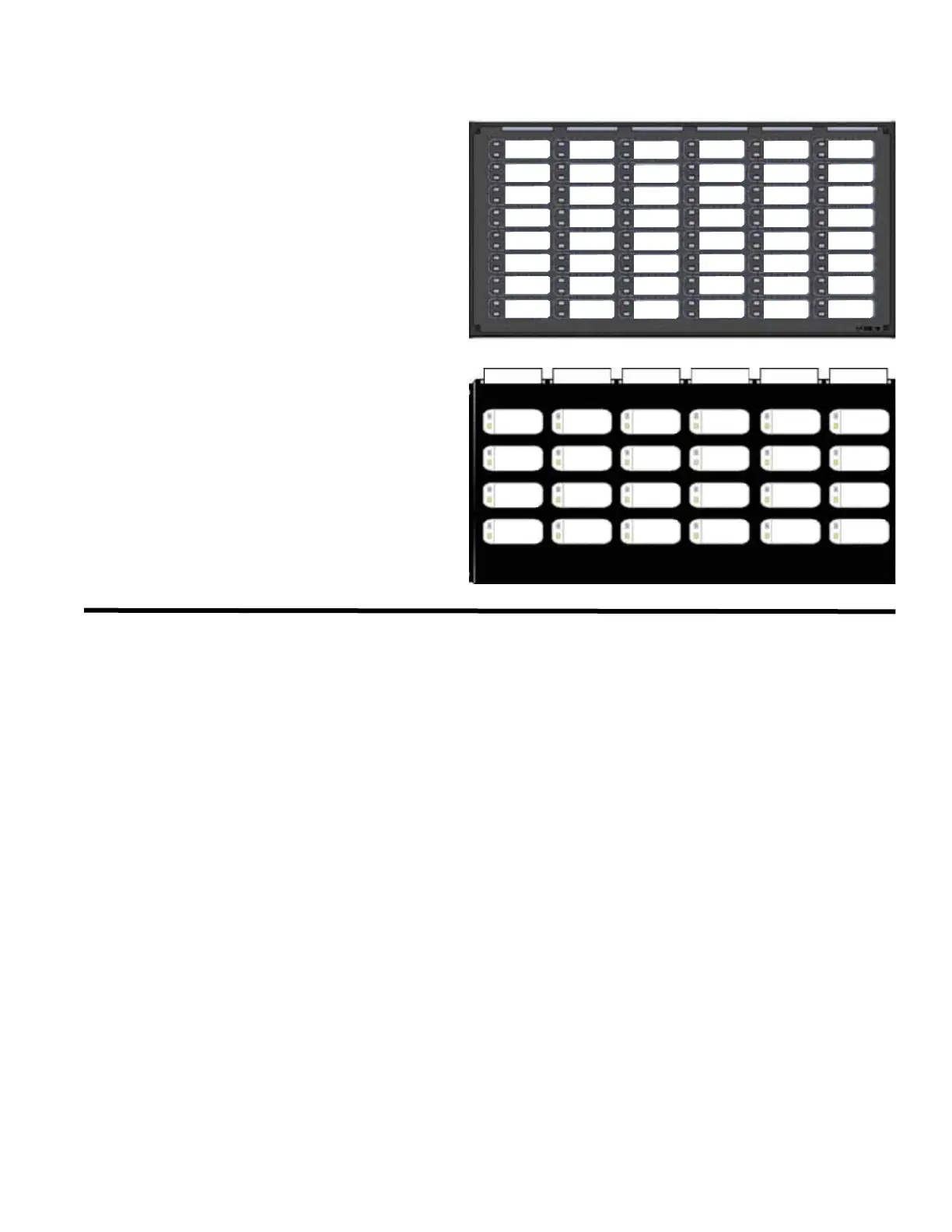

QAZT-5348DS and QAZT-5302DS Zoned Paging Selector Panel

Each QAZT-5348DS annunciates and controls up

to 48 audio zones. Each QAZT-5302DS

annunciates and controls up to 24 audio zones.

There is one button and two LEDs per zone. The

lower amber LED indicates Zone trouble. The

upper green LED indicates whether that zone is

selected for voice paging via the master

microphone.

Paging zone selection buttons toggle ON and OFF

voice paging for that zone.

Paging Operation

This section describes the controls and indicators on the QMP-5101N and QMP-5101NV Master Paging Control

Modules and the QAZT-5348DS and QAZT-5302DS Paging Selector Modules.

QMP-5101N/ QMP-5101NV LEDs

Warden Page

Illuminates steady green to indicate that the Warden Page function is active.

All Call

Illuminates steady green to indicate that the All-Call function is active.

Mic Active LED

Flashes green to indicate any activity on the paging bus (i.e. other microphone in use). Illuminates steady green

when associated microphone (at proximity of LED) is in use.

Pre-Tone Active LED

Steady green when paging and warden paging is active.

Amplifier Trouble LED

Indicates any amplifier internal trouble.

Mic Trouble LED

Flashes amber to indicate a microphone trouble.

Page to Evac LED

Illuminates steady green when the Page to Evac pushbutton is active.

Paging

#17

Paging

#25

Paging

#33

Paging

#41

Paging

#10

Paging

#18

Paging

#26

Paging

#34

Paging

#42

Paging

#12

Paging

#20

Paging

#28

Paging

#36

Paging

#44

Paging

#13

Paging

#21

Paging

#29

Paging

#37

Paging

#45

Paging

#14

Paging

#22

Paging

#30

Paging

#38

Paging

#46

Paging

#15

Paging

#23

Paging

#31

Paging

#39

Paging

#47

Paging

#16

Paging

#24

Paging

#32

Paging

#40

Paging

#48

Paging

#11

Paging

#19

Paging

#27

Paging

#35

Paging

#43

Paging

#10

Paging

#11

Paging

#12

Paging

#13

Paging

#14

Paging

#15

Paging

#16

Paging

#17

Paging

#18

Paging

#19

Paging

#20

Paging

#21

Paging

#22

Paging

#23

Paging

#24
