Mircom FleX-Net FX-2003-12NDS User Manual

FleX-Net
TM
Installation and Operation Manual
107
QMP-5101N/ V Network Paging Wiring

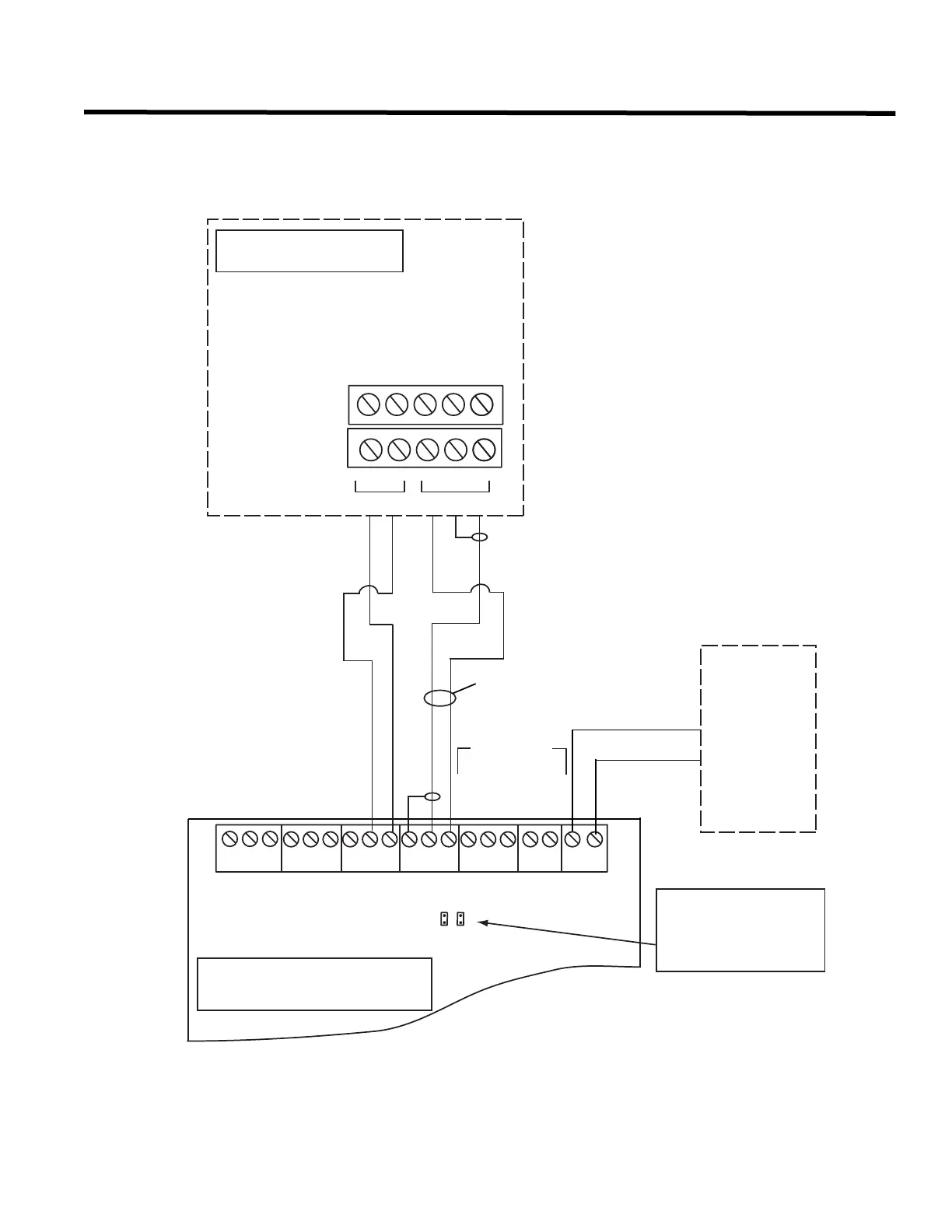

Figur e 7 3 : QM P- 5101N/ V Network Master Paging Control Module W ir ing t o t he
ANC-5000 Audio Network Controller Module
JW7
JW8
+ - + -
S - +
S - +
S - + S - + L - +
PAGING BUS
MIC
PTT
OUT
IN
ANC-5000 Audio Network
Controller Module
+
+
--
S
PTT
MIC
Master microphone
and push to talk button
are wired by Factory to
these terminals
QMP-5101N/V Network
Master Paging Module
+
-
Remote
Power
Input
(24V DC
Regulated
1.7 A max)
FX-2000N
Fire Alarm
Aux. Power
Supply
G.A.
Input
IN
RS-485
NOT USED
Wire the Paging Bus to
all other ANC-5000
Audio Network Con-
troller Modules OUT to
IN, see Figure 67.
TWISTED
SHIELDED
PAIR CABLE
Jumpers JW7 and JW8
are normally installed
(shorted).
This connection to Aux
Power is required when
the ANC-5000 is mounted
over an FX-2009-12NDS
Fire Alarm board.

Mircom FleX-Net FX-2003-12NDS Specifications

General

Brand	Mircom
Model	FleX-Net FX-2003-12NDS
Category	Fire Alarms
Language	English
