Mircom FleX-Net FX-2003-12NDS User Manual

Module Settings
32
I PS-2424DS Programmable I nput Switches Module
The IPS-2424DS Programmable Input Switches Module provides 24 programmable switches, 24 bi-coloured (red/
amber) LEDs for fire alarm zone annunciation and 24 amber trouble LEDs

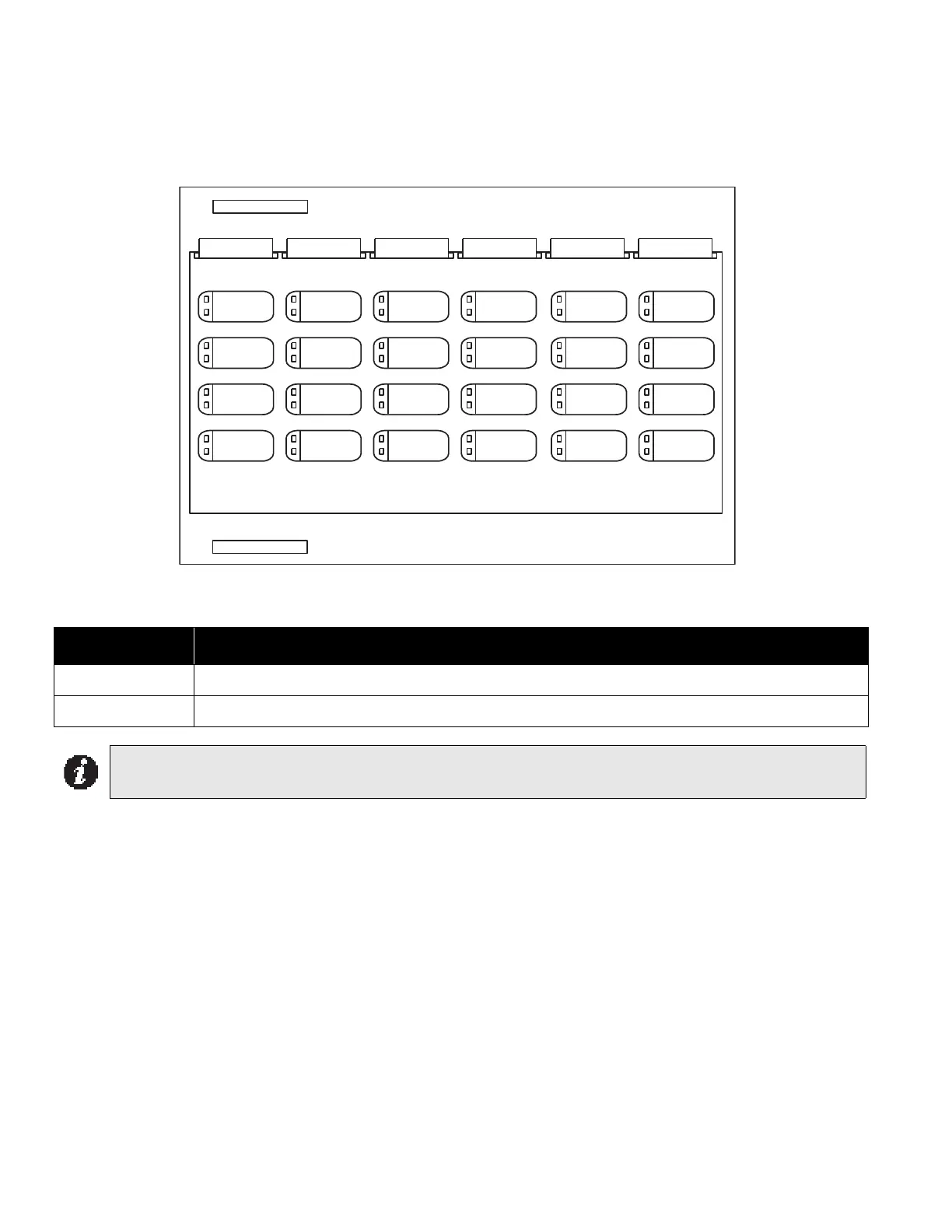

Figure 16: I PS-2424DS Programmable I nput Switches Module
Table 5: IPS-2424DS Programmable Input Switches Module Cable Function
Connector Function
P1 P1 Cable connects to P2 of previous display module.
P2 P2 Cable connects to P1 of next display module
Note: The IPS-2424DS module comes with laser printer-compatible slide-in paper labels for zone labelling.
P2
P1
ZONE
BYPASS
#1
ZONE
BYPASS
#2
ZONE
BYPASS
#4
ZONE
BYPASS
#3
ZONE
BYPASS
#5
ZONE
BYPASS
#6
ZONE
BYPASS
#8
ZONE
BYPASS
#7
ZONE
BYPASS
#9
ZONE
BYPASS
#10
ZONE
BYPASS
#12
ZONE
BYPASS
#11
ZONE
BYPASS
#17
ZONE
BYPASS
#18
ZONE
BYPASS
#20
ZONE
BYPASS
#19
ZONE
BYPASS
#13
ZONE
BYPASS
#14
ZONE
BYPASS
#16
ZONE
BYPASS
#15
ZONE
BYPASS
#21
ZONE
BYPASS
#22
ZONE
BYPASS
#24
ZONE
BYPASS
#23
