Module Settings
38
UDACT-300A MAI N BOARD:
There are two jumpers on the UDACT-300A which are used for operation/configuration purposes. Jumper JW1 is
used to reset the default passcode. Jumper JW2 is required for configuring
(which can be done using the FX-2000N
Configurator Software) the UDACT-300A. Refer to Figure 24 below for location of jumpers, cable connections,
pushbutton and LEDs. Table 7 following, provides a description of the user items on the UDACT-300A.

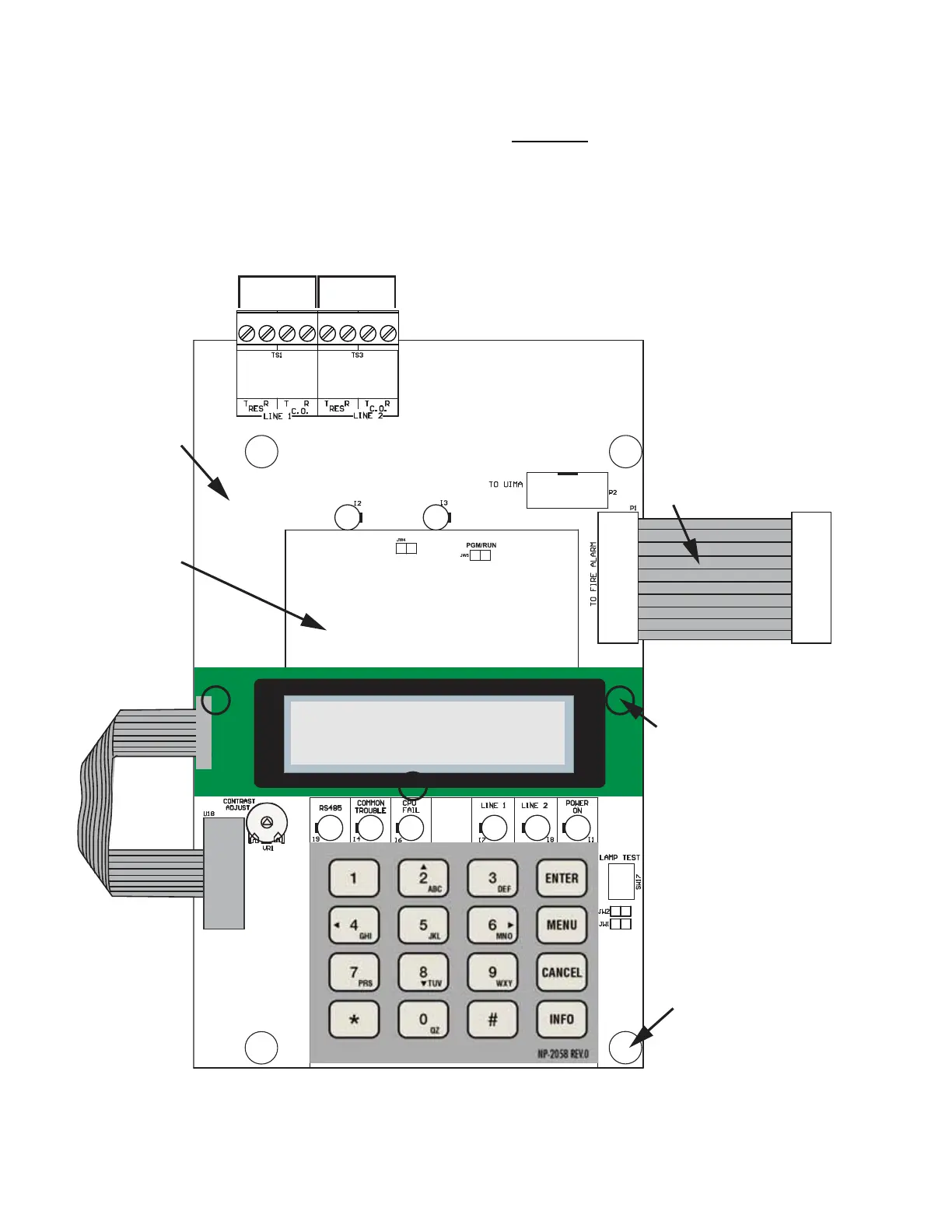

Figure 24: UDACT-300A Board Layout
UDACT (Prot-1) Idle
20:00 MON 2021-01-25
CONNECT RIBBON CABLE
FROM P1 TO FIRE ALARM
CONTROL PANEL
MOUNTING HOLES
(FOUR)
LAMP TEST
JW2
JW1
U18
TO UIMA
RELAY LINE 1
RELAY LINE 2
JW5
JW4
CFC-300 CONFIGURATION
TOOL
MOUNT ON 3 STANDOFFS
UR1
MAIN BOARD
CORE BOARD
LINE 1 LINE 2
TR TR
RES C.O.
TR TR
RES C.O.
(leave closed)
(leave open)
P2
P1
TELEPHONE LINE CONNECTIONS
